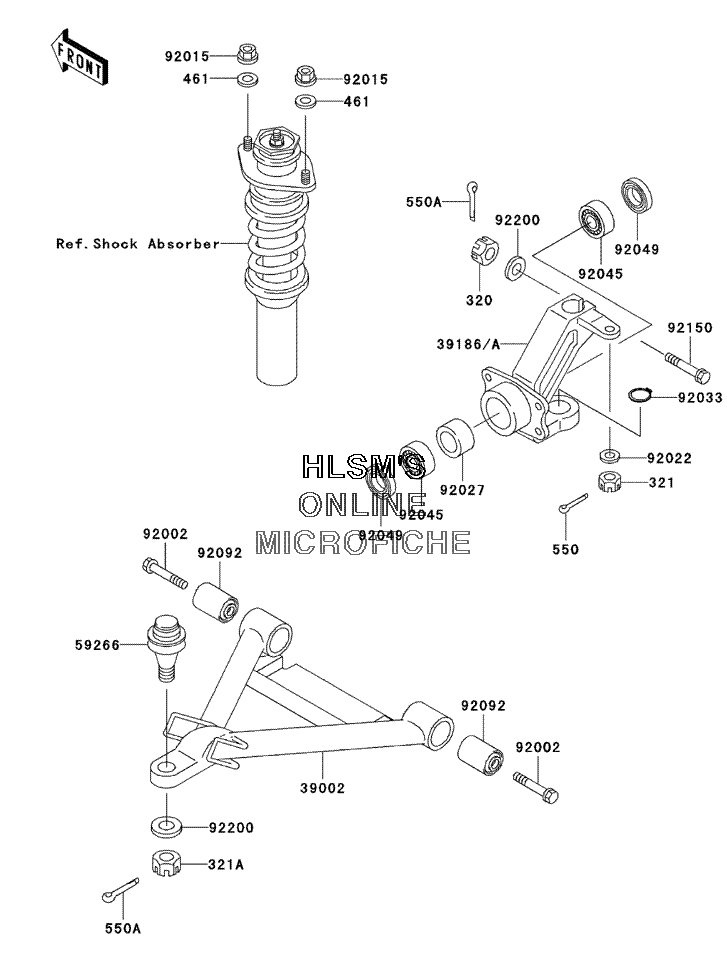

SUSPENSION - FRONT для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
320320G1200 NUT-CASTLENUT-CASTLE
-
321321H1000 NUT-CASTLENUT-CASTLE
-
321A321H1200 NUT-CASTLE, 12MMNUT-CASTLE, 12MM
-
461461L1000 WASHER-SPRINGWASHER-SPRING
-
550550D2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
550A550D3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
3900239002-1054 ARM-COMP-SUSPARM-COMP-SUSP
-
3918639186-1096 KNUCKLE, FR (LEFT)KNUCKLE, FR (LEFT)
-
39186A39186-1097 KNUCKLE, FR (RIGHT)KNUCKLE, FR (RIGHT)
-
5926659266-1080 JOINT-BALLJOINT-BALL
-
9200292002-1661 BOLT, SUSPENSION RODBOLT, SUSPENSION ROD
-
9201592015-1366 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1876 WASHER, 10.5X18X2.5WASHER, 10.5X18X2.5
-
9202792027-1538 COLLAR, L=34.5COLLAR, L=34.5
-
9203392033-1262 RING-SNAP, C-TYPE, 32MMRING-SNAP, C-TYPE, 32MM
-
9204592045-3707 BEARING-BALLBEARING-BALL
-
9204992049-1513 SEAL-OIL, SD35X47X7HSSEAL-OIL, SD35X47X7HS
-
9209292092-1065 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1356 BOLT, FLANGED, 12X72BOLT, FLANGED, 12X72
-
9220092200-1004 WASHER, 12.3X23X2.3WASHER, 12.3X23X2.3
