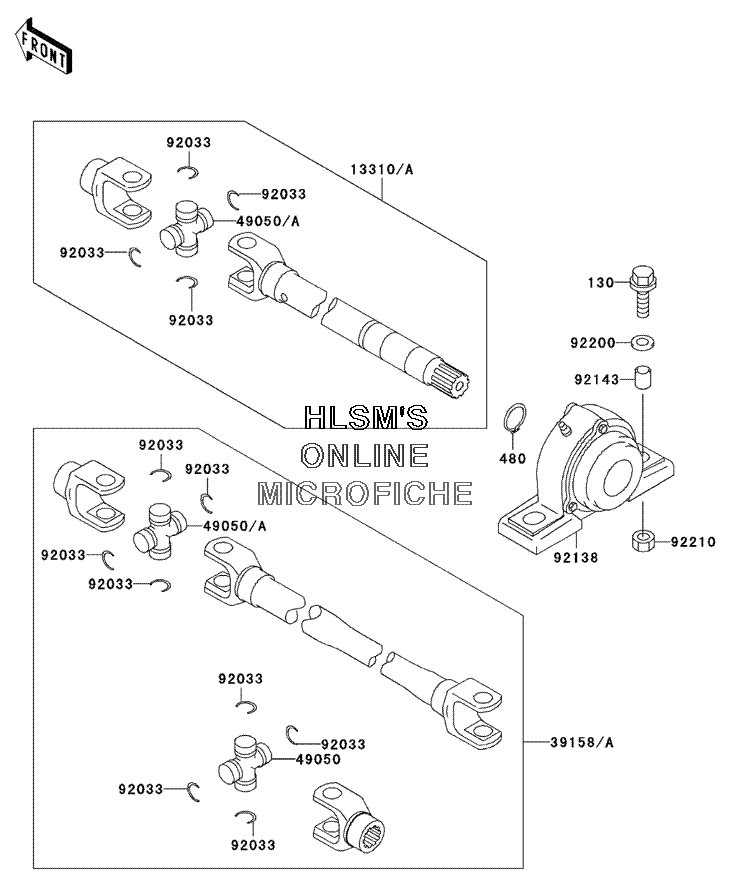

DRIVE SHAFT (PROPELLER) для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
130130J1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
1331013310-1025 SHAFT-ASSY, FRONT DRIVESHAFT-ASSY, FRONT DRIVE
-
3915839158-1107 SHAFT-ASSY-DRIVESHAFT-ASSY-DRIVE
-
4905049050-1002 SPIDERSPIDER
-
9203392033-1030 RING-SNAPRING-SNAP
-
9213892138-1052 BEARING-COMPBEARING-COMP
-
9214392143-1634 COLLAR, 10.3X12.7X15COLLAR, 10.3X12.7X15
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
9221092210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
