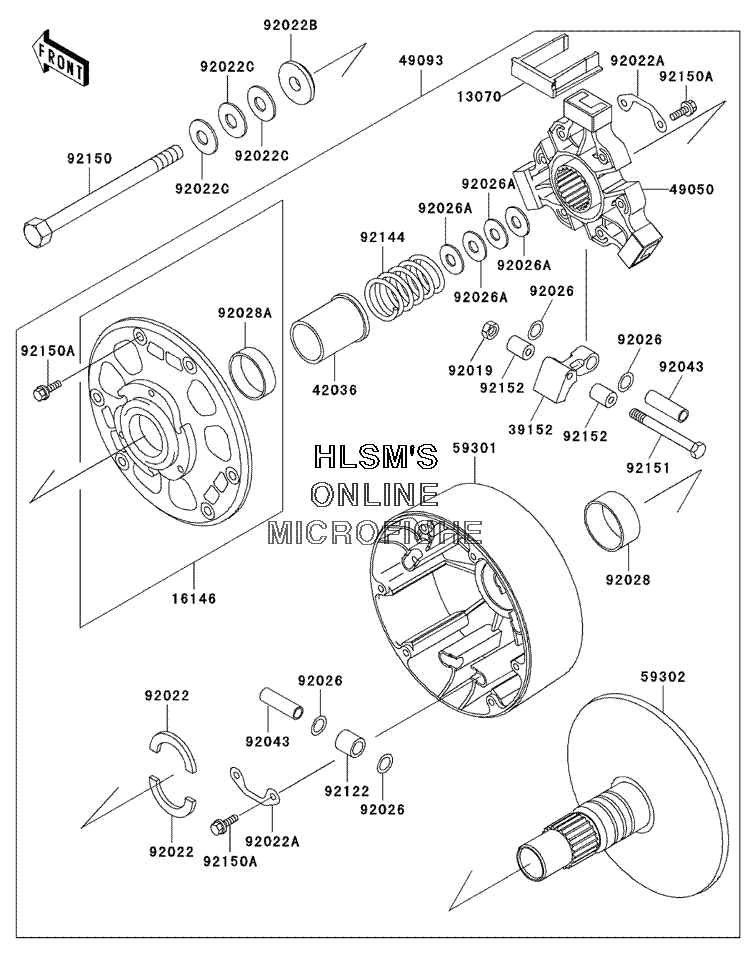

DRIVE CONVERTER для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
1307013070-1344 GUIDEGUIDE
-
1614616146-1088 COVER-ASSYCOVER-ASSY
-
3915239152-1075 WEIGHT-RAMPWEIGHT-RAMP
-
4203642036-1221 SLEEVESLEEVE
-
4905049050-1053 SPIDERSPIDER
-
4909349093-1068 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
5930159301-1058 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-1055 SHEAVE-COMPSHEAVE-COMP
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1897 WASHER, SPLITWASHER, SPLIT
-
92022A92022-1899 WASHERWASHER
-
92022B92022-1900 WASHER, SLEEVEWASHER, SLEEVE
-
92022C92022-1901 WASHER, SPECIAL CONICALWASHER, SPECIAL CONICAL
-
9202692026-1304 SPACER, 10X16X0.8SPACER, 10X16X0.8
-
92026A92026-1498 SPACER, 48.7X57.5X1.0SPACER, 48.7X57.5X1.0
-
9202892028-1508 BUSHING, 43X47X20BUSHING, 43X47X20
-
92028A92028-1511 BUSHING, 40X44X12BUSHING, 40X44X12
-
9204392043-1370 PIN, 6.5X10X38PIN, 6.5X10X38
-
9212292122-1152 ROLLERROLLER
-
9214492144-1196 SPRING, DRIVESPRING, DRIVE
-
9215092150-1008 BOLT, 12X163.5BOLT, 12X163.5
-
92150A92150-1014 BOLT, 6X20BOLT, 6X20
-
9215192151-1815 BOLT, 6X72BOLT, 6X72
-
9215292152-1265 COLLAR, 6X14X19COLLAR, 6X14X19
