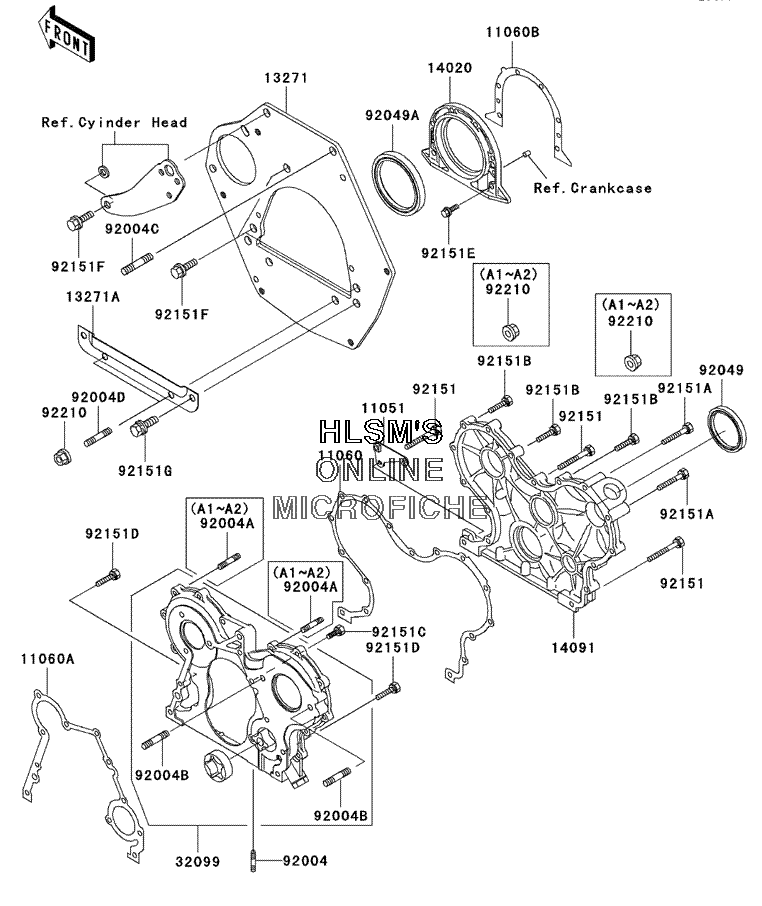

ENGINE COVER(S) для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
1105111051-1550 BRACKETBRACKET
-
1106011060-1945 GASKET, TIMING COVERGASKET, TIMING COVER
-
11060A11060-1946 GASKET, TIMING GEAR CASEGASKET, TIMING GEAR CASE
-
11060B11060-1947 GASKET, RETAINERGASKET, RETAINER
-
1327113271-1358 PLATE, LEFT ENDPLATE, LEFT END
-
13271A13271-1359 PLATEPLATE
-
1402014020-1107 RETAINERRETAINER
-
1409114091-1185 COVER, TIMING GEARCOVER, TIMING GEAR
-
3209932099-1208 CASE, TIMING GEARCASE, TIMING GEAR
-
9200492004-1262 STUD, 6X14STUD, 6X14
-
92004A92004-1268 STUD, 6X25STUD, 6X25
-
92004B92004-1269 STUD, 8X28STUD, 8X28
-
92004C92004-1270 STUD, 10X40STUD, 10X40
-
92004D92004-1271 STUD, 6X13STUD, 6X13
-
9204992049-1525 SEAL-OIL, AH2847KSEAL-OIL, AH2847K
-
92049A92049-1526 SEAL-OIL, AH3513FSEAL-OIL, AH3513F
-
9215192151-1662 BOLT, 6X55BOLT, 6X55
-
92151A92151-1663 BOLT, 6X45BOLT, 6X45
-
92151B92151-1664 BOLT, 6X30BOLT, 6X30
-
92151C92151-1665 BOLT, 6X16BOLT, 6X16
-
92151D92151-1666 BOLT, 6X28BOLT, 6X28
-
92151E92151-1667 BOLT, 6X20BOLT, 6X20
-
92151F92151-1668 BOLT, 10X22BOLT, 10X22
-
92151G92151-1669 BOLT, 6X12BOLT, 6X12
-
9221092210-1210 NUT, 6MMNUT, 6MM
