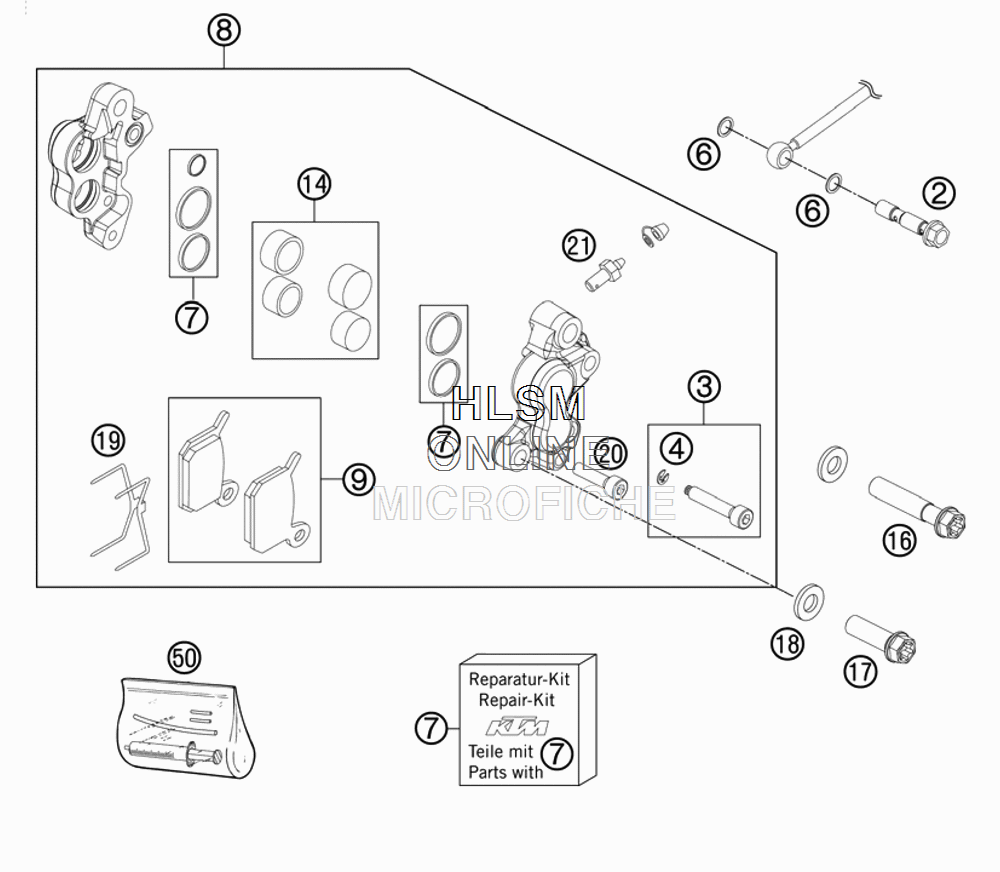

BRAKE CALIPER FRONT для Ktm 50 SX - 2013 года выпуска
-
№АртикулНазвание
-
245113025000 HOLLOW SCREW M6X34HOLLOW SCREW M6X34
-
345113125000 AH SCREW+CIRCLIPAH SCREW+CIRCLIP
-
40799025000 TAB WASHER DIN6799 RS2,5TAB WASHER DIN6799 RS2,5
-
60770060019 O-RING 6,00X1,00 FORMULAO-RING 6,00X1,00 FORMULA
-
745113019000 REP.KIT SEAL RINGREP.KIT SEAL RING
-
845113015000 BRAKE CALIPER CPL. FR.BRAKE CALIPER CPL. FR.
-
945113030000 BRAKE PAD SETBRAKE PAD SET
-
1445113019050 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
160025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
170025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
180125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
1945113018000 RETAINING SPRINGRETAINING SPRING
-
200912050203 AH SCREW DIN0912-M 5X20AH SCREW DIN0912-M 5X20
-
2145113020000 BREATHER SCREWBREATHER SCREW
-
5045119050000 BLEEDER INJECTION-N-SETBLEEDER INJECTION-N-SET
