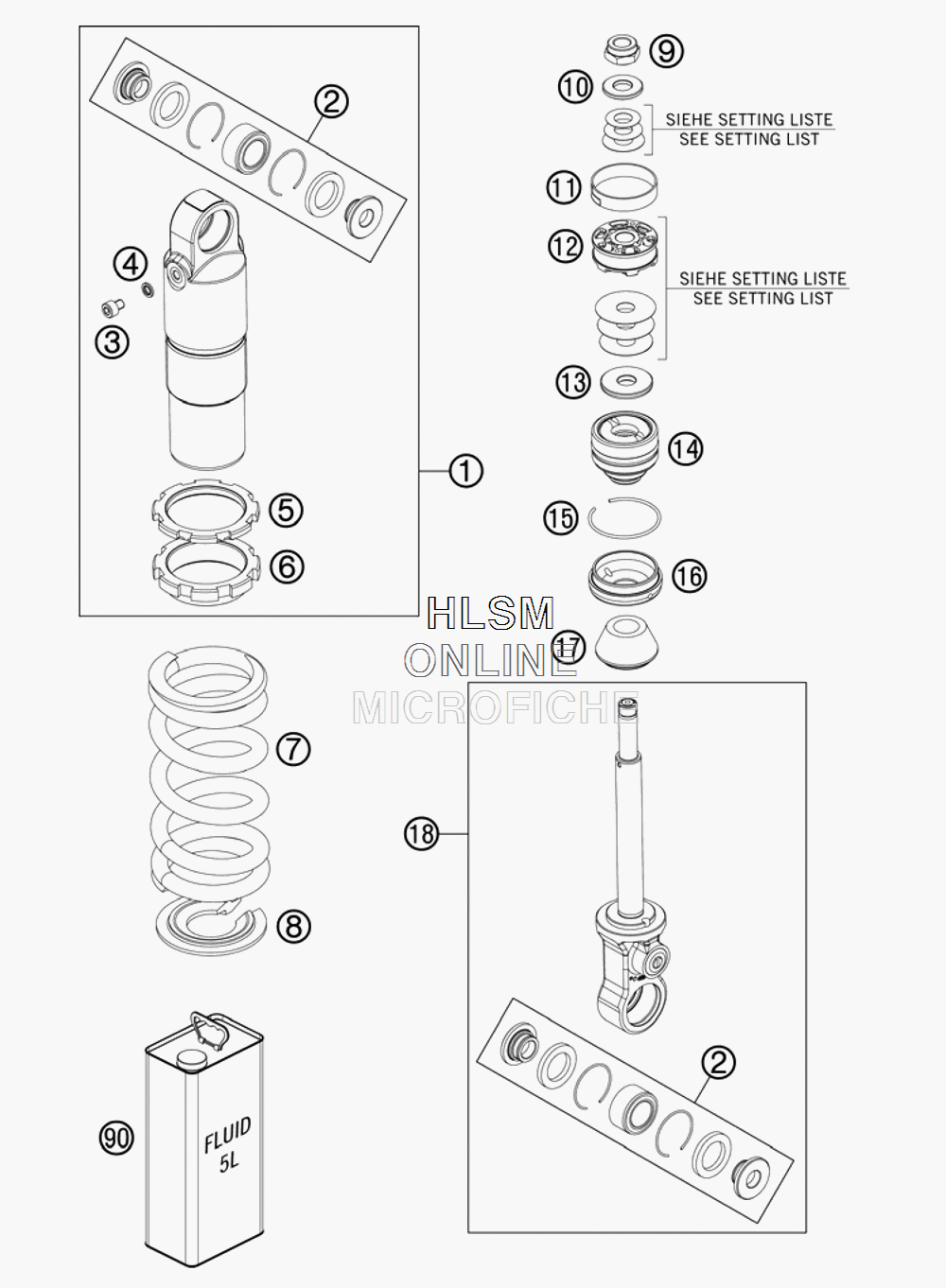

MONOSHOCK DISASSEMBLED для Ktm 50 SX - 2013 года выпуска

№

Артикул

Название
1

36120783S MONOSHOCK TOP PART L147 CPL.

MONOSHOCK TOP PART L147 CPL.

114 250 ₽
2

R307 REPAIR KIT BEARINGS

REPAIR KIT BEARINGS

24 340 ₽
3

36120785 SCREW M5 C.K. RVS

SCREW M5 C.K. RVS

620 ₽
4

36120782 SEAL D5,21XD8,38X1,22

SEAL D5,21XD8,38X1,22

2 920 ₽
5

36120015 COUNTERNUT

COUNTERNUT

8 300 ₽
6

36120418 ADJUSTING NUT

ADJUSTING NUT

12 330 ₽
7

93010175S SPRING 35N/MM 35-130 130MM ORANGE

SPRING 35N/MM 35-130 130MM ORANGE

47 970 ₽
7

93010176S SPRING 30N/MM 30-130 130MM ORANGE

SPRING 30N/MM 30-130 130MM ORANGE

40 810 ₽
7

93010177S SPRING 40N/MM 40-130 130MM ORANGE

SPRING 40N/MM 40-130 130MM ORANGE

40 810 ₽
8

36120386 SPRING RET. H=3, D=14,5

SPRING RET. H=3, D=14,5

7 290 ₽
9

36120052 PISTON ROD NUT M10X1

PISTON ROD NUT M10X1

2 620 ₽
10

36120604 SHIM D10XD22X2,5

SHIM D10XD22X2,5

5 620 ₽
11

36120040 PISTON RING 8X1X108,3

PISTON RING 8X1X108,3

1 590 ₽
12

36120071 * PISTON 6+6XD5.5/3.5

* PISTON 6+6XD5.5/3.5

16 660 ₽
13

14360065 REBOUND DISC H=4 D=28,5

REBOUND DISC H=4 D=28,5

2 450 ₽
14

36120787S ADAPTOR 36MM H26,6 CPL.

ADAPTOR 36MM H26,6 CPL.

20 730 ₽
15

40540015 CIRCLIP 38X1,5

CIRCLIP 38X1,5

590 ₽
16

36120780 RESERVOIR CAP D=36 H=9,5

RESERVOIR CAP D=36 H=9,5

5 580 ₽
17

36120427 BUMP RUBBER WP65 L=20

BUMP RUBBER WP65 L=20

9 990 ₽
18

36120776S1 MONOSH. BOTTOM PART L99 CPL.

MONOSH. BOTTOM PART L99 CPL.

92 430 ₽
90

50180751S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
