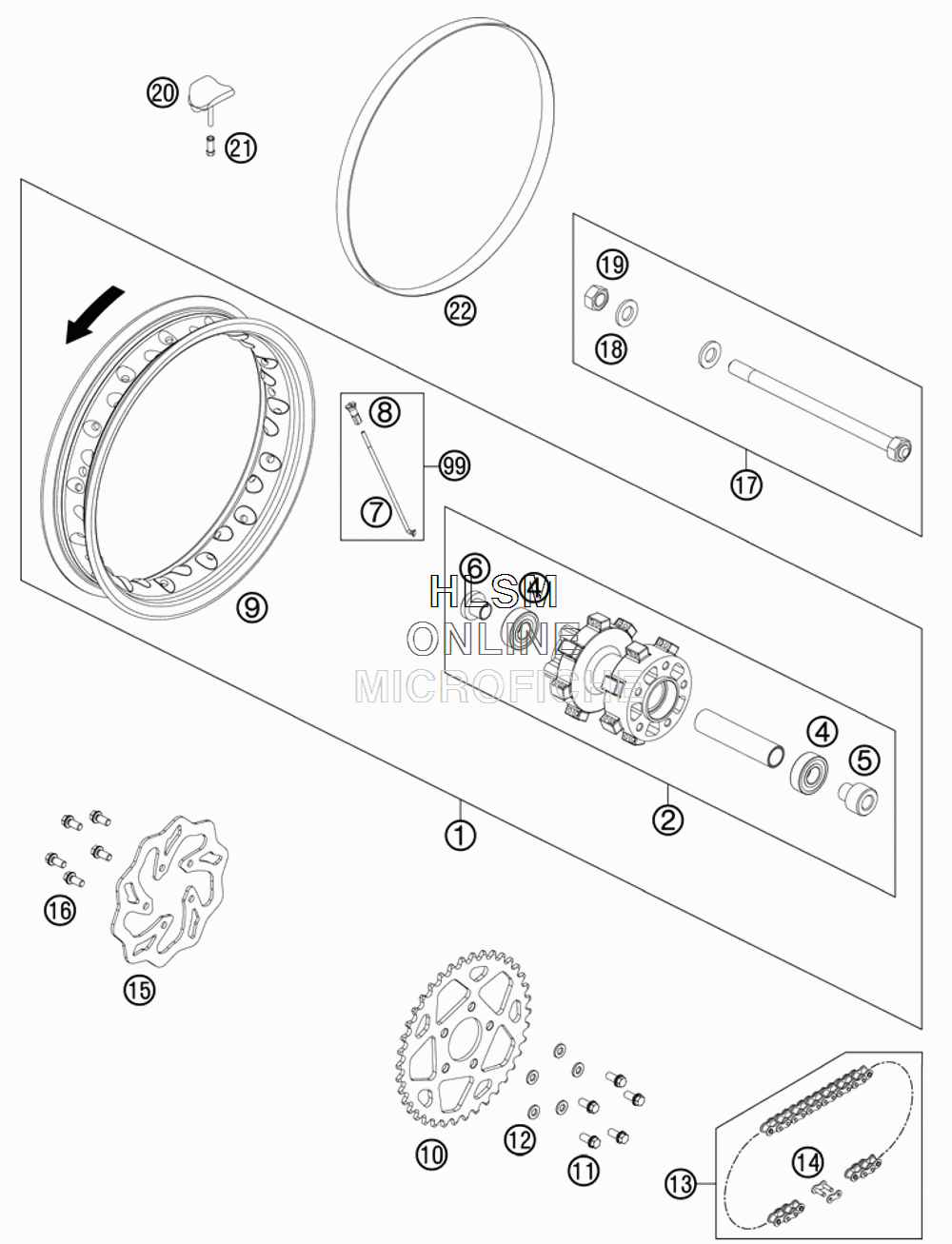

REAR WHEEL для Ktm 50 SX - 2013 года выпуска
-
№АртикулНазвание
-
145210001344 REAR WHEELREAR WHEEL
-
245110010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
40625062028 BALL BEARING 6202-2RSH/C3BALL BEARING 6202-2RSH/C3
-
545110014000 DISTANCE SLEEVE L/SDISTANCE SLEEVE L/S
-
645110013000 DISTANCE SLEEVE R/SDISTANCE SLEEVE R/S
-
745210071113 SPOKE 3X113 C.166° C.2,3SPOKE 3X113 C.166° C.2,3
-
846210072000 SPOKE NIPPLE ALUSPOKE NIPPLE ALU
-
94521007010030 REAR RIM 10"X1.6 BLK. 2012REAR RIM 10"X1.6 BLK. 2012
-
1045210051038 SPROCKET 38-TSPROCKET 38-T
-
1045210051039 SPROCKET 39-TSPROCKET 39-T
-
1045210051040 SPROCKET 40-TSPROCKET 40-T
-
1045210051041 SPROCKET 41-TSPROCKET 41-T
-
1045210051042 SPROCKET 42-TSPROCKET 42-T
-
110015070203 HH COLLAR SCREW M 7X20 WS=11HH COLLAR SCREW M 7X20 WS=11
-
1245110052000 SHIMSHIM
-
1345110265104 RACING CHAIN 1/2X3/16"RACING CHAIN 1/2X3/16"
-
1445110266000 CONNECTING LINK 1/2X3/16" 90RSCONNECTING LINK 1/2X3/16" 90RS
-
1545210060000 BRAKE DISC REAR D=140MMBRAKE DISC REAR D=140MM
-
1659009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
1746010085044 AXLE CPL. 207MM M12X1AXLE CPL. 207MM M12X1
-
180125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
190934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
2045110090000 RIM LOCK CPL.RIM LOCK CPL.
-
2150310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2245009073000 RIM BAND 10" 22MMRIM BAND 10" 22MM
-
9900050000953 SPOKE KIT REAR 10"SPOKE KIT REAR 10"
