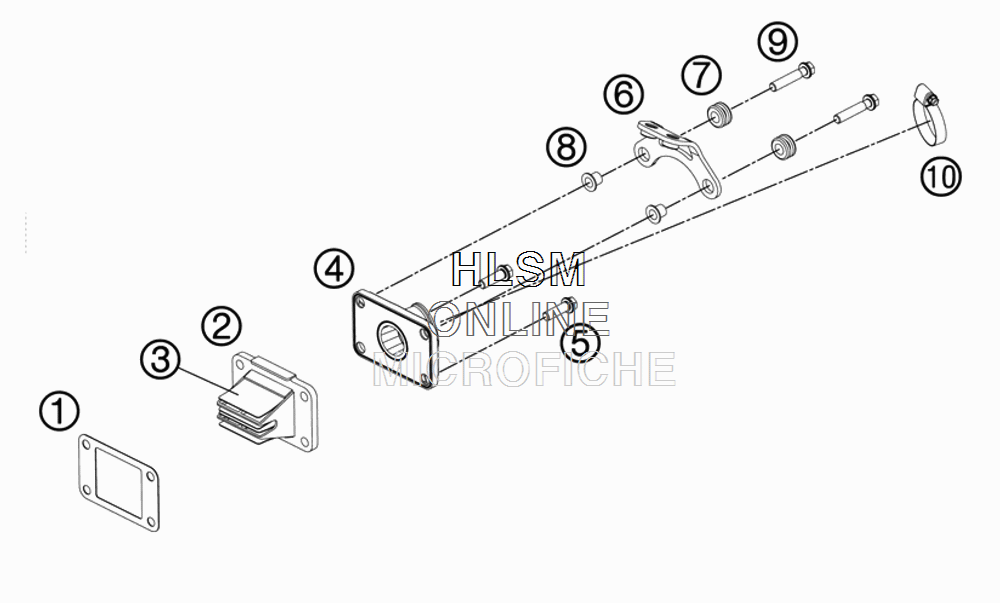

REED VALVE CASE для Ktm 50 SX - 2013 года выпуска
-
№АртикулНазвание
-
146230049000 GASKET MEMBRAN CASEGASKET MEMBRAN CASE
-
245230051044 MEMBRANE CASE CPL. V-VORCEMEMBRANE CASE CPL. V-VORCE
-
346230052000 MEMBRANEMEMBRANE
-
445230050000 INTAKE FLANGEINTAKE FLANGE
-
50025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
645239010000 IGNIT. COIL RETAIN. PLATE CPL.IGNIT. COIL RETAIN. PLATE CPL.
-
731008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
845239060050 COLLAR BUSHING 6,3X8X13X9,5COLLAR BUSHING 6,3X8X13X9,5
-
90025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
1010001120000 CLAMP 25-40 SGT 4CLAMP 25-40 SGT 4
