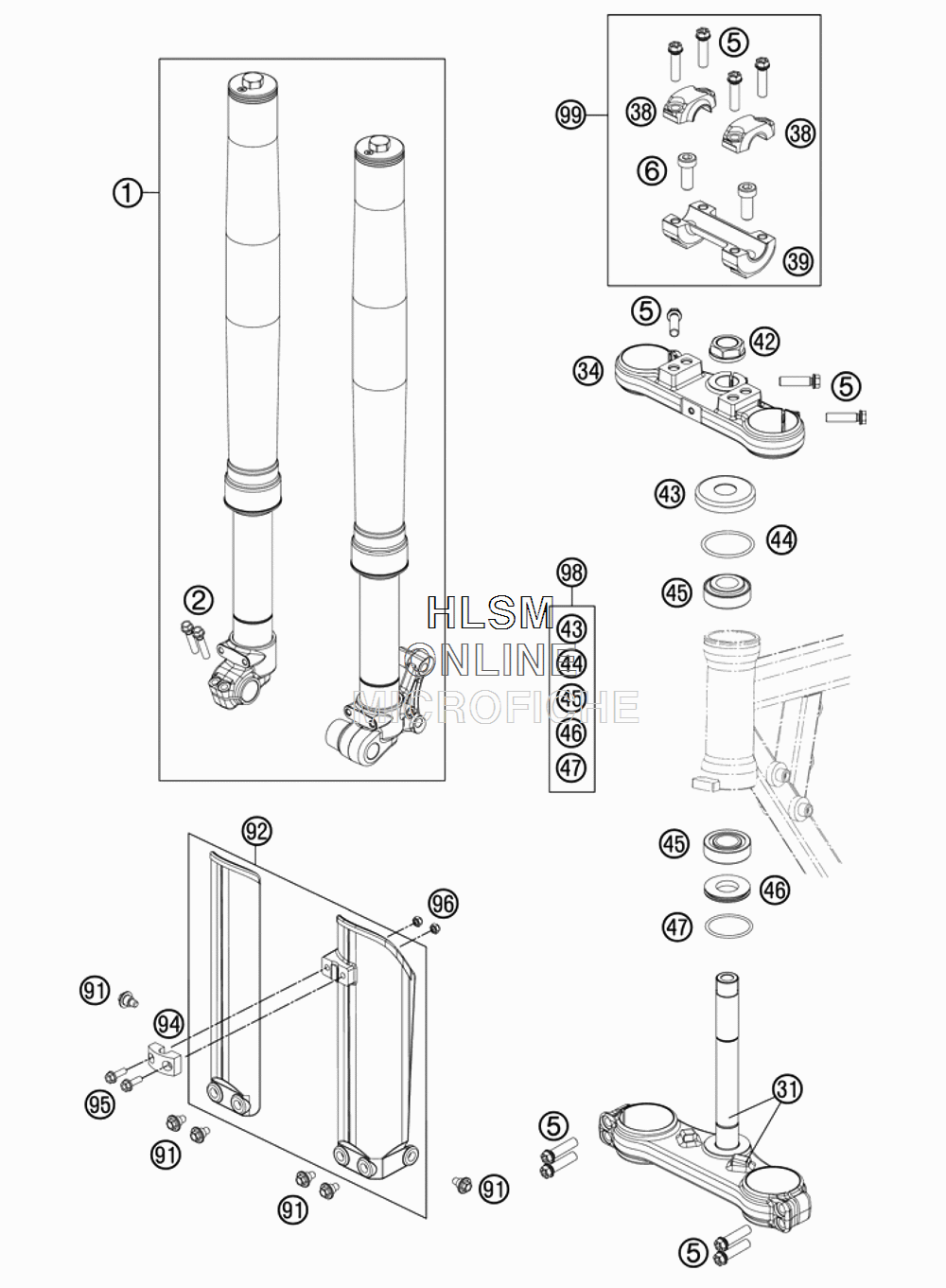

FRONT FORK TRIPLE CLAMP для Ktm 50 SX - 2013 года выпуска
-
№АртикулНазвание
-
107181L0301 FORK USDFORK USD
-
225060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
525080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60032100256S AH-COLLAR SCREW M10X25 ISA45AH-COLLAR SCREW M10X25 ISA45
-
3145201032022 BOT. TRIPLE CLAMP CPL.BOT. TRIPLE CLAMP CPL.
-
3445201034022 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3945201039000 HANDLEBAR SUPPORT 50SX D=22MMHANDLEBAR SUPPORT 50SX D=22MM
-
4259030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
4349001086000 COVERING CAPCOVERING CAP
-
44770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
4549001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
4646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
47770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
924610109400028 FORK PROTECTOR SET WHITEFORK PROTECTOR SET WHITE
-
945460108500028 BRAKE HOSE CLIPBRAKE HOSE CLIP
-
9525050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
96985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
9850000931 STEARING HEAD REP. KIT MINISTEARING HEAD REP. KIT MINI
-
9950000925 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
