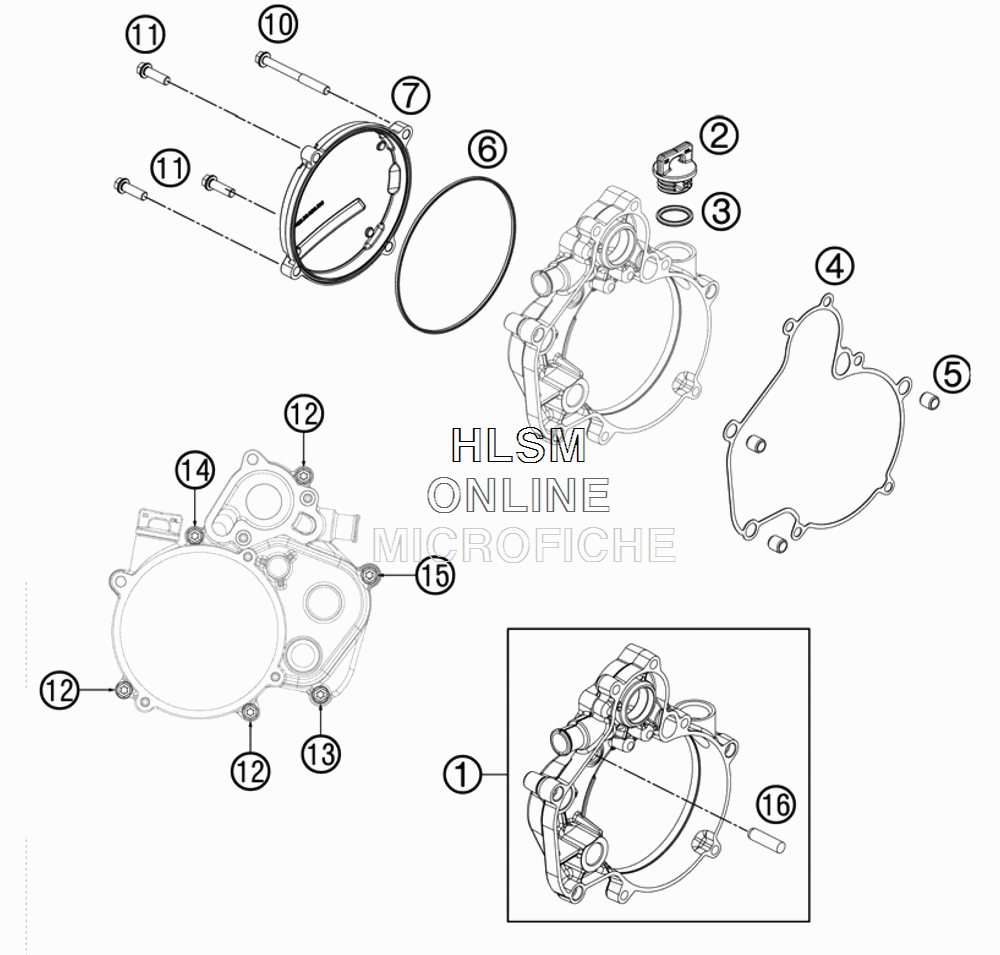

CLUTCH COVER для Ktm 50 SX - 2013 года выпуска
-
№АртикулНазвание
-
145230001044 CLUTCH COVER INNER CPL.CLUTCH COVER INNER CPL.
-
258030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
30770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
445230025000 CLUTCH COVER GASKET INSIDECLUTCH COVER GASKET INSIDE
-
549030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
645230027000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
7*45230026100 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
100025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
110025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
120025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
130025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
140025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
150025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
160325080300 CYLINDER STUD DIN6325CYLINDER STUD DIN6325
