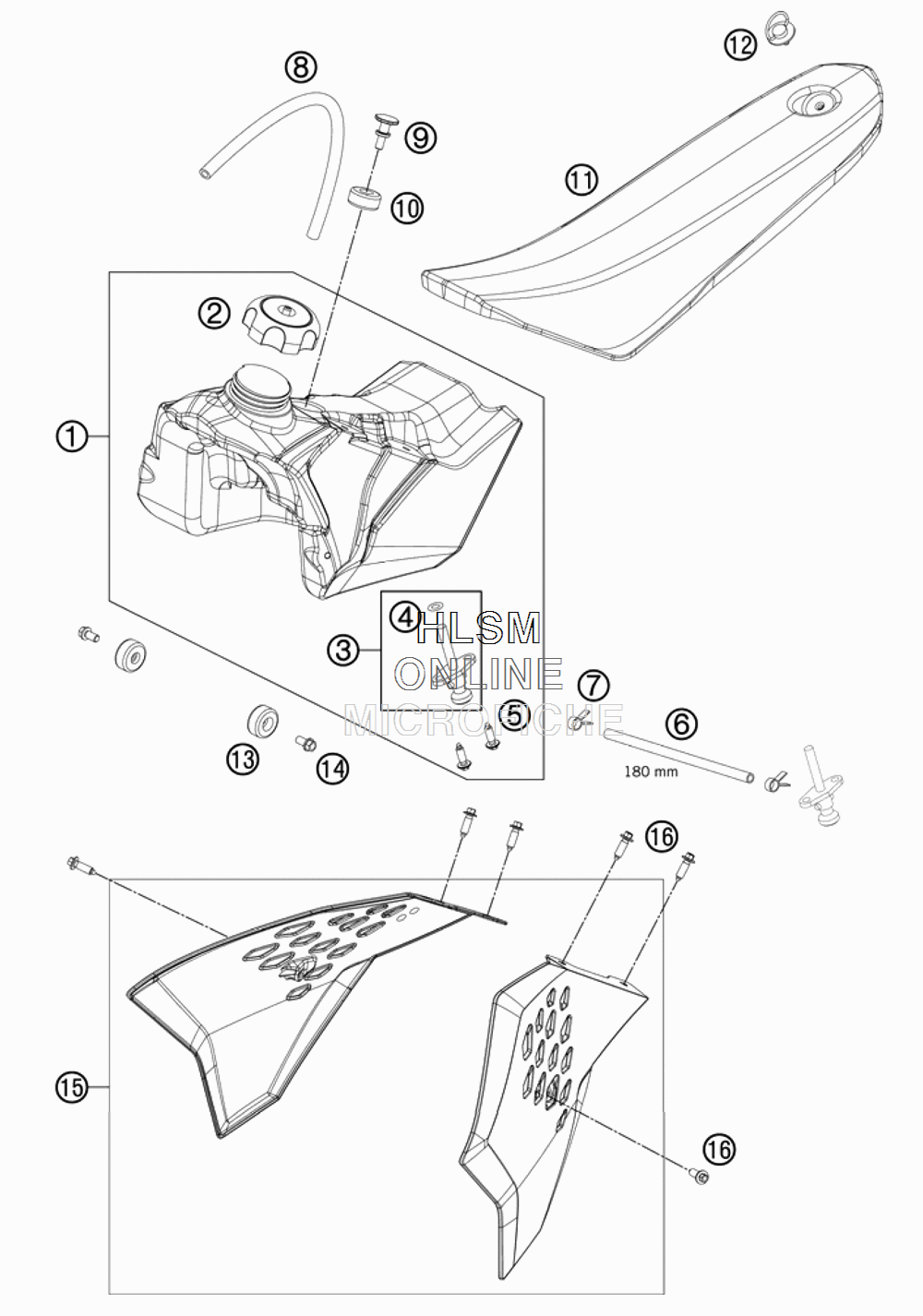

TANK SEAT COVER для Ktm 50 SX - 2013 года выпуска
-
№АртикулНазвание
-
14520701303330 FUEL TANK CPL.FUEL TANK CPL.
-
249007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
358507003200 FUEL COCK CPL.FUEL COCK CPL.
-
40770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
50017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
658307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
745031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
878007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
945107011000 TANK SCREWTANK SCREW
-
1050307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1145207040000 SEATSEAT
-
1245007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
1350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
140025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
154520805400004B SPOILERSET ORANGESPOILERSET ORANGE
-
160017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
