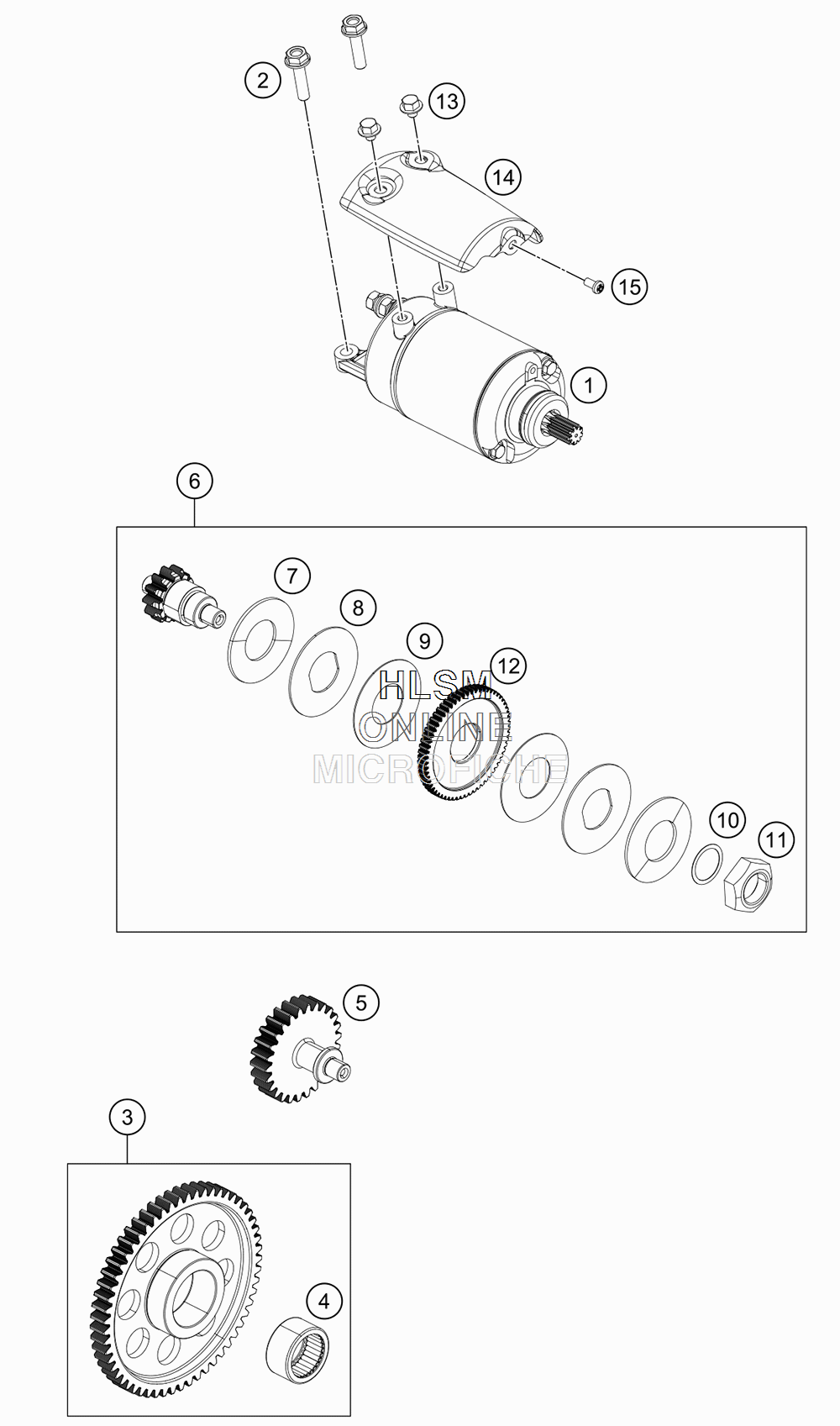

ELECTRIC STARTER для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
193840001000 ELECTRIC STARTER CPL.ELECTRIC STARTER CPL.
-
2J025060256 HH COLLAR SCREW M6X25 SW10HH COLLAR SCREW M6X25 SW10
-
390240020000 GEAR STARTER CLUTCH CPL.GEAR STARTER CLUTCH CPL.
-
4J618253216 NEEDLE ROLLER BEARING HK2516NEEDLE ROLLER BEARING HK2516
-
590240022000 GEAR STARTER COUNTERGEAR STARTER COUNTER
-
690240023033 GEAR STARTER COUNTER CPL.GEAR STARTER COUNTER CPL.
-
790240023006 CONICAL WASHERCONICAL WASHER
-
890240023005 WASHERWASHER
-
990240023004 PAD FRICTIONPAD FRICTION
-
1090240023007 SHIM STARTER 0,30MMSHIM STARTER 0,30MM
-
1090240023008 SHIM STARTER 0,45MMSHIM STARTER 0,45MM
-
1090240023009 SHIM STARTER 0,60MMSHIM STARTER 0,60MM
-
1090240023010 SHIM STARTER 0,75MMSHIM STARTER 0,75MM
-
1190240023003 NUT STARTER COUNTERNUT STARTER COUNTER
-
1290240023002 GEAR STARTER COUNTERGEAR STARTER COUNTER
-
13J025060083S HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
-
1493840012000 SHIELD STARTER MOTORSHIELD STARTER MOTOR
-
15J005040083 SCREW PAN CROSS M4X8SCREW PAN CROSS M4X8
