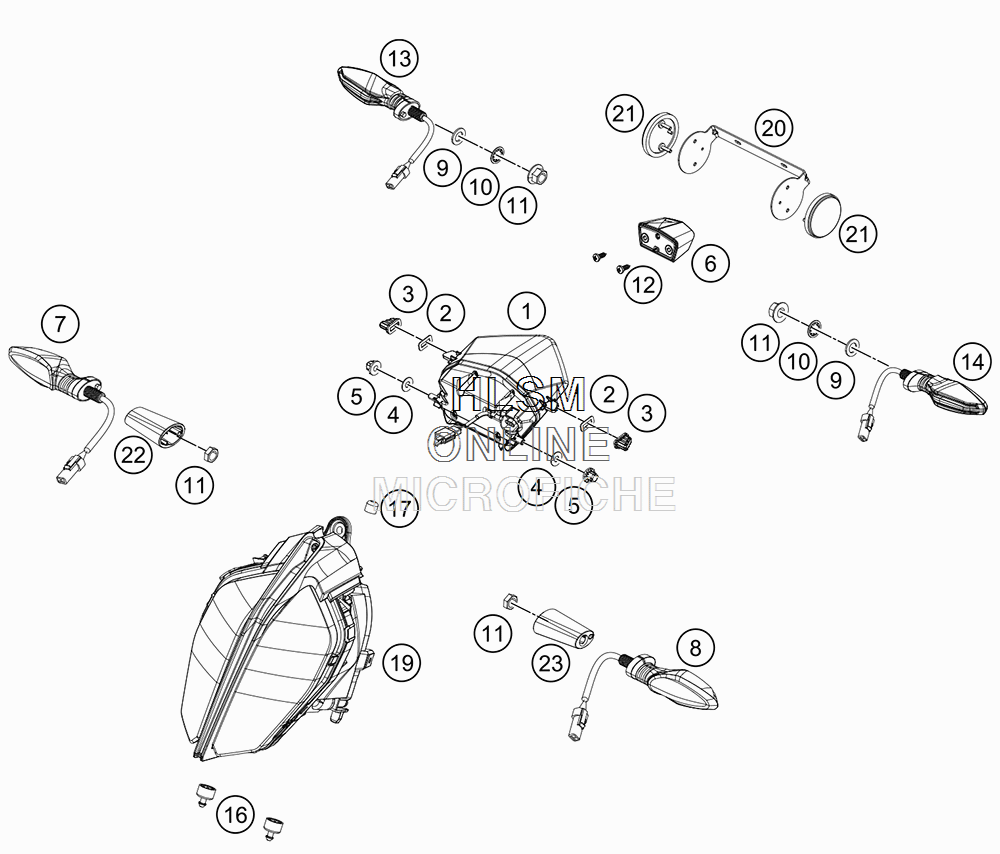

LIGHTING SYSTEM для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
193014040100 LAMP TAIL MY17LAMP TAIL MY17
-
293014040040 WASHERWASHER
-
393014040020 RUBBER BUSHINGRUBBER BUSHING
-
493014040030 WASHERWASHER
-
593014040010 RUBBER BUSHINGRUBBER BUSHING
-
690114047000 LICENSE PLATE ILLUMINATIONLICENSE PLATE ILLUMINATION
-
793014526000 RIGHT FRONT FLASHER USRIGHT FRONT FLASHER US
-
893014525000 LEFT FRONT FLASHER USLEFT FRONT FLASHER US
-
9J125100003 WASHER PLAIN 10,5WASHER PLAIN 10,5
-
10J797100003 TOOTHED WASHER M10TOOTHED WASHER M10
-
11J934100006 HEX NUT M10HEX NUT M10
-
12J981420133 SHEET MET.SCR. DIN 7981 4,2X13SHEET MET.SCR. DIN 7981 4,2X13
-
1390514526044 INDICATOR CPL. RR R/S USAINDICATOR CPL. RR R/S USA
-
1490514525044 INDICATOR CPL. RR L/S USAINDICATOR CPL. RR L/S USA
-
1693014015000 RUBBER BUSHINGRUBBER BUSHING
-
1793014014000 RUBBER BUSHINGRUBBER BUSHING
-
1793014014000 RUBBER BUSHINGRUBBER BUSHING
-
2090212581000 BRACKET SIDE REFLECTOR REARBRACKET SIDE REFLECTOR REAR
-
2190212582000 SIDE REFLECTOR REARSIDE REFLECTOR REAR
-
2293014526050 RIGHT FLASHER ADAPTER USRIGHT FLASHER ADAPTER US
-
2393014525050 LEFT FLASHER ADAPTER USLEFT FLASHER ADAPTER US
