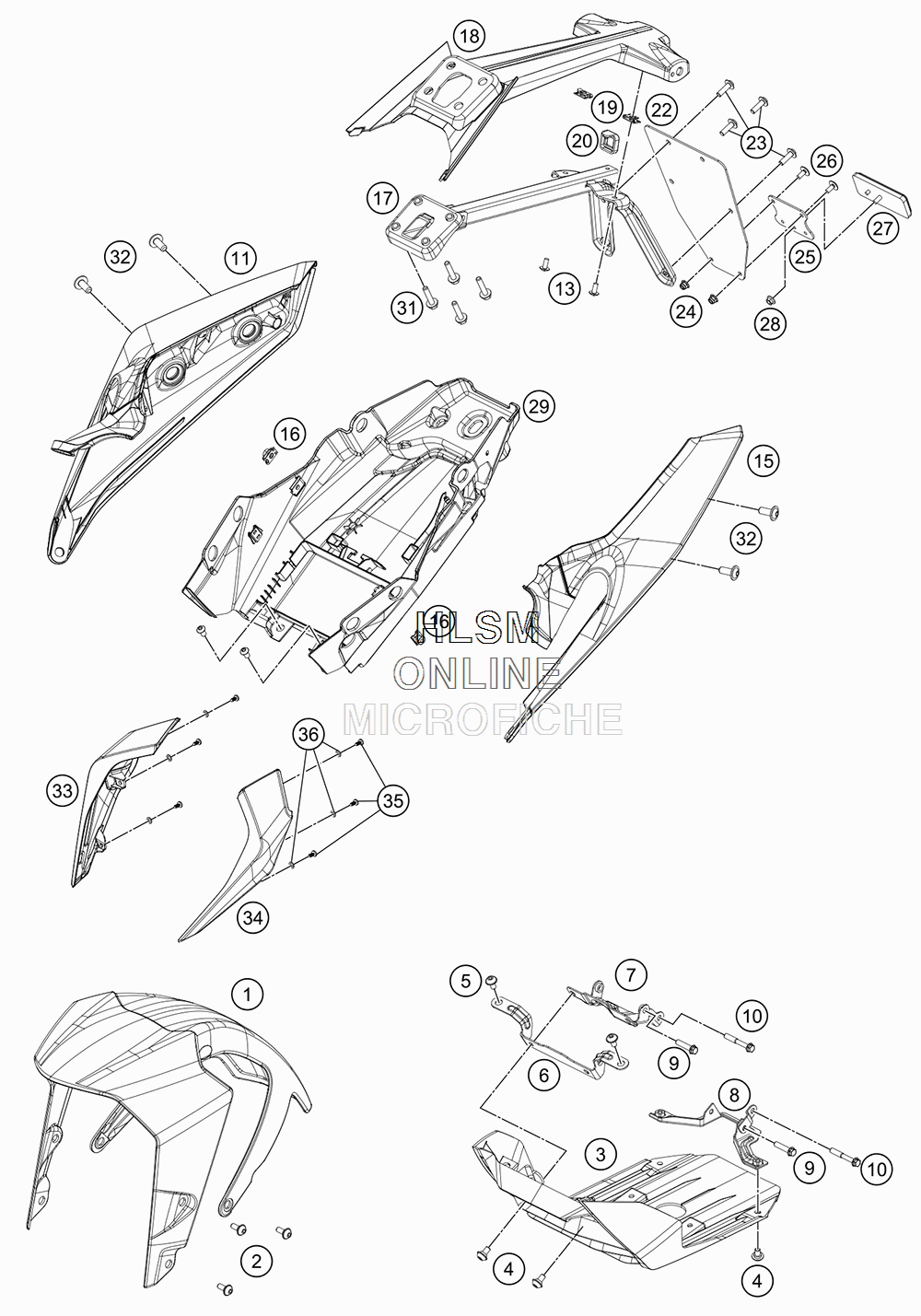

MASK- FENDERS для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
19300801003330 FRONT FENDER CPL. BLACKFRONT FENDER CPL. BLACK
-
2J031050161 PANHEAD SCREW WITH SHOULDERPANHEAD SCREW WITH SHOULDER
-
393308020000 UNDER -ENGINE FAIRING 250/390UNDER -ENGINE FAIRING 250/390
-
493008020060 SCREW M6X1X9SCREW M6X1X9
-
590508006001 SOCKET HEAD BOLT M6X12SOCKET HEAD BOLT M6X12
-
693008021000 RETAINING BRACKETRETAINING BRACKET
-
793008021020 RETAINING BRACKETRETAINING BRACKET
-
893008021120 BRACKET BELLY PAN REARBRACKET BELLY PAN REAR
-
9J025060144 HEXAGON SREW M6X14HEXAGON SREW M6X14
-
10J025060359 HEXAGON SCREW M6X35HEXAGON SCREW M6X35
-
119300804210028 SIDE FAIRING RS CPL. WHITESIDE FAIRING RS CPL. WHITE
-
13J031050123 LENS HEAD SCREW M5X12LENS HEAD SCREW M5X12
-
159300804110028 SIDE FAIRING LS CPL. WHITESIDE FAIRING LS CPL. WHITE
-
1690108050001 CLIP NUT M5CLIP NUT M5
-
1793008015000 LICENSE PLATE HOLDER SUPPORTLICENSE PLATE HOLDER SUPPORT
-
1893008015050 LICENSE PLATE HOLDER SUPPORT COVERLICENSE PLATE HOLDER SUPPORT COVER
-
1993008083010 CLIP NUT M5CLIP NUT M5
-
2093008015010 PROTECTION RUBBERPROTECTION RUBBER
-
2290808016000 REAR FENDER EXT.REAR FENDER EXT.
-
2390508006003 AH SCREW M6X1X20AH SCREW M6X1X20
-
2490102031010 HEX NUT M5 AF8HEX NUT M5 AF8
-
2590514044000 REFLECTOR MOUNTINGREFLECTOR MOUNTING
-
26J005050123 FLAT HEAD SCREW M6X12 PHFLAT HEAD SCREW M6X12 PH
-
2790514045000 REFLECTORREFLECTOR
-
2890204060001 HH COLLAR NUTHH COLLAR NUT
-
2993008019000 TAIL END LOWER PARTTAIL END LOWER PART
-
31J025060226 HEX COLLAR SCREW M6X22HEX COLLAR SCREW M6X22
-
3290508008001 AH SCREW M8X20AH SCREW M8X20
-
3393008001000EB SIDE MASK RGHT LED ORANGESIDE MASK RGHT LED ORANGE
-
3493008024000EB SIDE MARK LEFT LED ORANGESIDE MARK LEFT LED ORANGE
-
35J981030101 SCREW TAPPING PAN CROSS-ST3.5XSCREW TAPPING PAN CROSS-ST3.5X
-
36J125040003 WASHER PLAIN SMALL 4.5X8X0.5XBLKWASHER PLAIN SMALL 4.5X8X0.5XBLK
