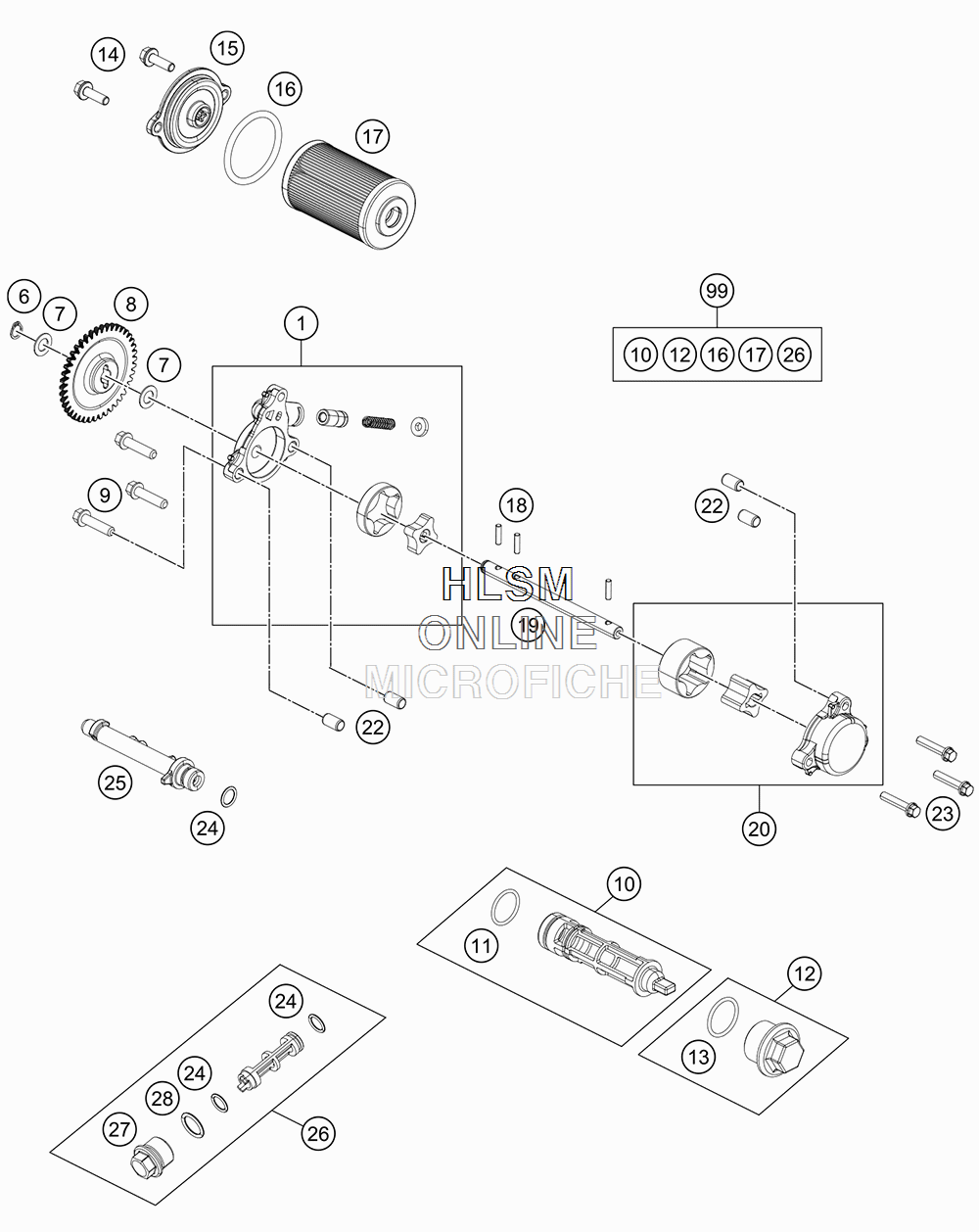

LUBRICATING SYSTEM для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
190238010044 OIL PUMP CPL.OIL PUMP CPL.
-
6J471010100 SEEGERRING 10X1,0SEEGERRING 10X1,0
-
7J125100006 WASHER 10,2X18X1WASHER 10,2X18X1
-
890238001000 GEAR OIL PUMPGEAR OIL PUMP
-
9J028060303S HH COLLAR SCREW M6X30 WS8HH COLLAR SCREW M6X30 WS8
-
1090238015033 MESH STRAINER CPL.MESH STRAINER CPL.
-
11J770017721 O-RING 17,7X2,1 MMO-RING 17,7X2,1 MM
-
1290138015050 CLOSURE CAP OIL SCREENCLOSURE CAP OIL SCREEN
-
1390138015052 O-RINGO-RING
-
14J025060166 BOL T FLANGED M6X16BOL T FLANGED M6X16
-
1590138006000 OIL FILTER CAPOIL FILTER CAP
-
16J770039326 O-RING 39,34X2,62O-RING 39,34X2,62
-
1790138015000 OIL FILTEROIL FILTER
-
1890238003000 PARALLEL PINPARALLEL PIN
-
1990238002000 SHAFT OIL PUMPSHAFT OIL PUMP
-
2090238008044 OIL PUMP CPL.OIL PUMP CPL.
-
2290130024000 PIN DOWEL 8X6,4X14MMPIN DOWEL 8X6,4X14MM
-
23J028060303S HH COLLAR SCREW M6X30 WS8HH COLLAR SCREW M6X30 WS8
-
24J7700090151 O-RING 9X1,5O-RING 9X1,5
-
2590238013000 OIL RAILOIL RAIL
-
2690238016044 MESH STRAINER CPL.MESH STRAINER CPL.
-
2790238017000 CAP STRAINERCAP STRAINER
-
28J770012520 O-RING 12,5X2O-RING 12,5X2
-
9990238015010 OILFILTER SERVICE KIT 390 DUKEOILFILTER SERVICE KIT 390 DUKE
