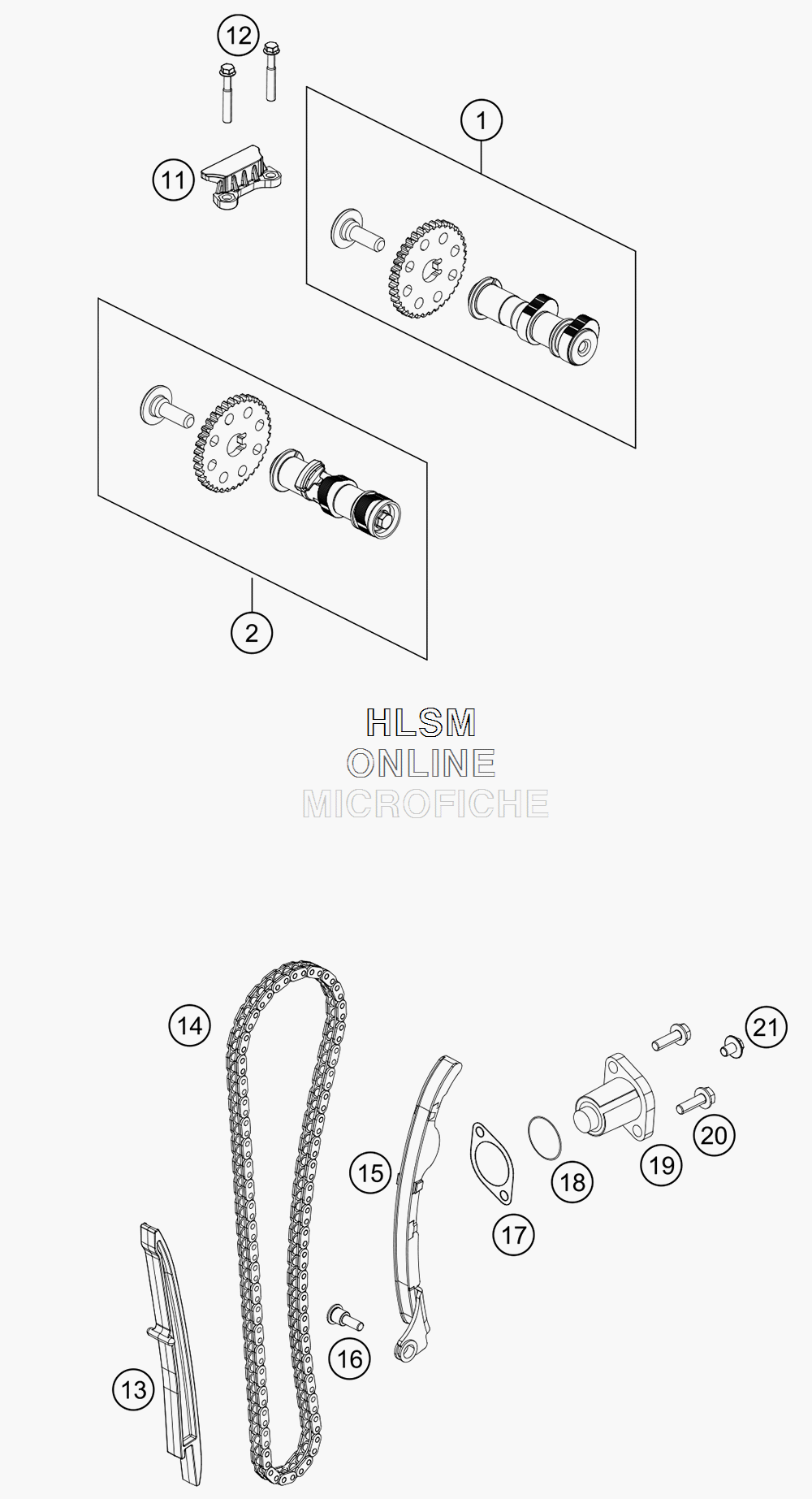

TIMING DRIVE для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
190836009033 CAMSHAFT INTAKE CPL.CAMSHAFT INTAKE CPL.
-
290836010033 CAMSHAFT EXHAUST CPL.CAMSHAFT EXHAUST CPL.
-
1190236018000 CHAIN GUIDE TOPCHAIN GUIDE TOP
-
12J025060453 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
1390236001000 TIMING CHAIN GUIDETIMING CHAIN GUIDE
-
1490236013000 TIMING CHAINTIMING CHAIN
-
1590236002000 TENSIONER RAIL CPL.TENSIONER RAIL CPL.
-
1690236002004 SCREW TENSIONER RAILSCREW TENSIONER RAIL
-
1790136003003 GASKET CHAIN ADJUSTERGASKET CHAIN ADJUSTER
-
18J770010015 O-RING 10,15X1,5O-RING 10,15X1,5
-
1990236003044 CHAIN ADJUSTERCHAIN ADJUSTER
-
20J025060206 HH COLLAR SCREW M6X20 SW10HH COLLAR SCREW M6X20 SW10
-
2190136003002 SPECIAL SCREW 6X6SPECIAL SCREW 6X6
