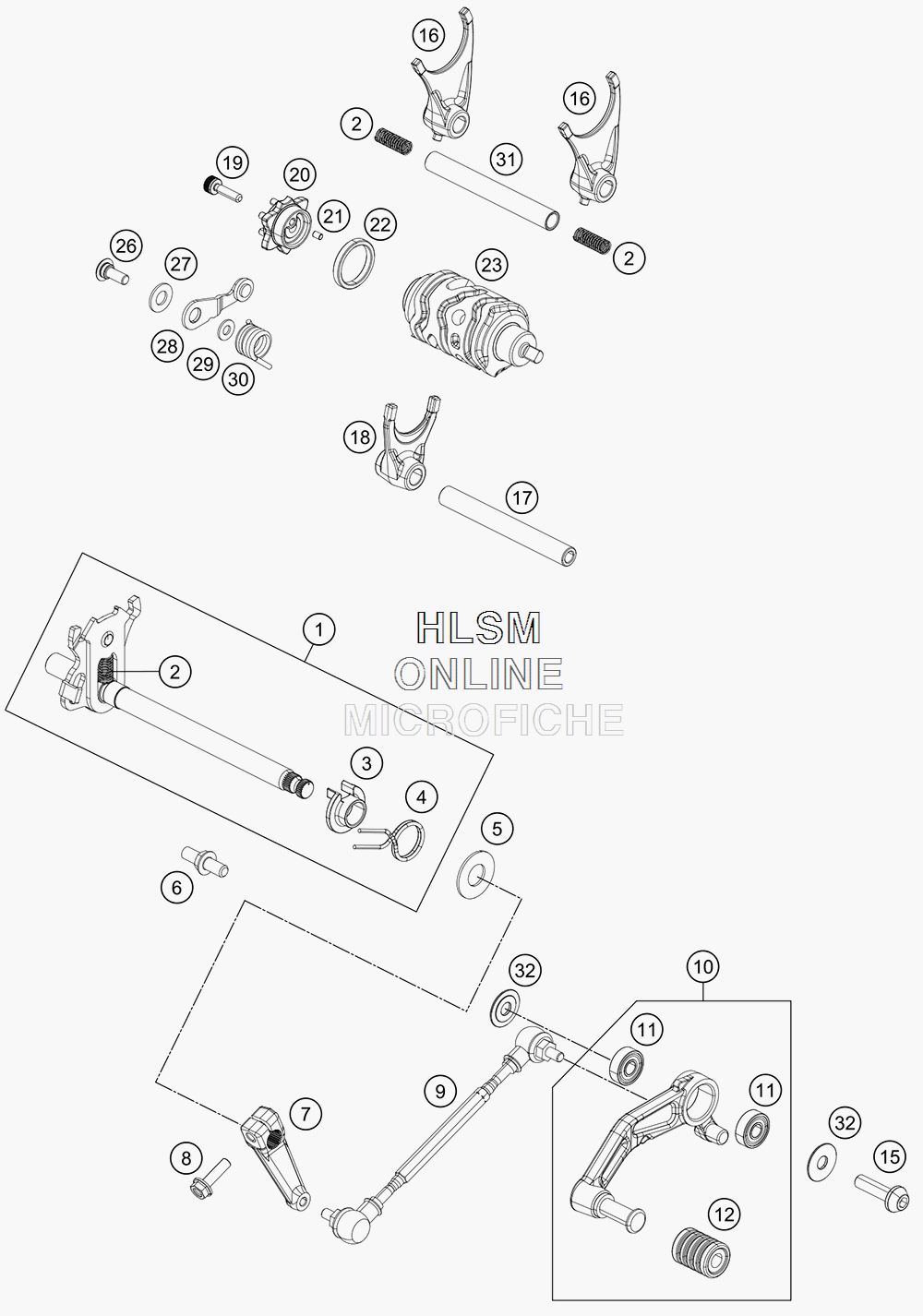

SHIFTING MECHANISM для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
190234005033 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
290234039000 SPRING SHIFT RAILSPRING SHIFT RAIL
-
390134022000 SPRING BUSHINGSPRING BUSHING
-
490134014000 RETURN SPRINGRETURN SPRING
-
590134050000 STOP DISK 14X30X1,5STOP DISK 14X30X1,5
-
690134016000 SPRING GUIDESPRING GUIDE
-
793034031010 LINKAGE GEAR SHIFT LEVERLINKAGE GEAR SHIFT LEVER
-
8J025060223 HH COLLAR SCREW M6X22 SW10HH COLLAR SCREW M6X22 SW10
-
993034036033 SHIFT ROD COMPLETESHIFT ROD COMPLETE
-
1093034031033 GEAR SHIFT LEVER COMPLETEGEAR SHIFT LEVER COMPLETE
-
11J625060800 BALL BEARING 608BALL BEARING 608
-
1290134035000 RUBBERRUBBER
-
1590134034300 BOLT SHIFT LEVERBOLT SHIFT LEVER
-
1690234002000 SHIFT FORKSHIFT FORK
-
1790234019000 SHIFT RAILSHIFT RAIL
-
1890234001000 SHIFT FORKSHIFT FORK
-
1990130001001 SOCKET HEAD SCREW M6X20SOCKET HEAD SCREW M6X20
-
2090134015000 SHIFT DRUM LOCATINGSHIFT DRUM LOCATING
-
2190134013000 PARALLEL PINPARALLEL PIN
-
2290134012002 SPACERSPACER
-
2393834012000 DRUM GEAR SHIFTDRUM GEAR SHIFT
-
2690134025000 SCREW LOCKING LEVERSCREW LOCKING LEVER
-
2790134030000 WASHER LOCKING LEVERWASHER LOCKING LEVER
-
2890134024033 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
2990134039000 WASHER 6X12,8X1,2WASHER 6X12,8X1,2
-
3090134023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
3193834020000 GEAR SHIFT RAILGEAR SHIFT RAIL
-
3290134031020 WASHER SHIFTING LEVERWASHER SHIFTING LEVER
