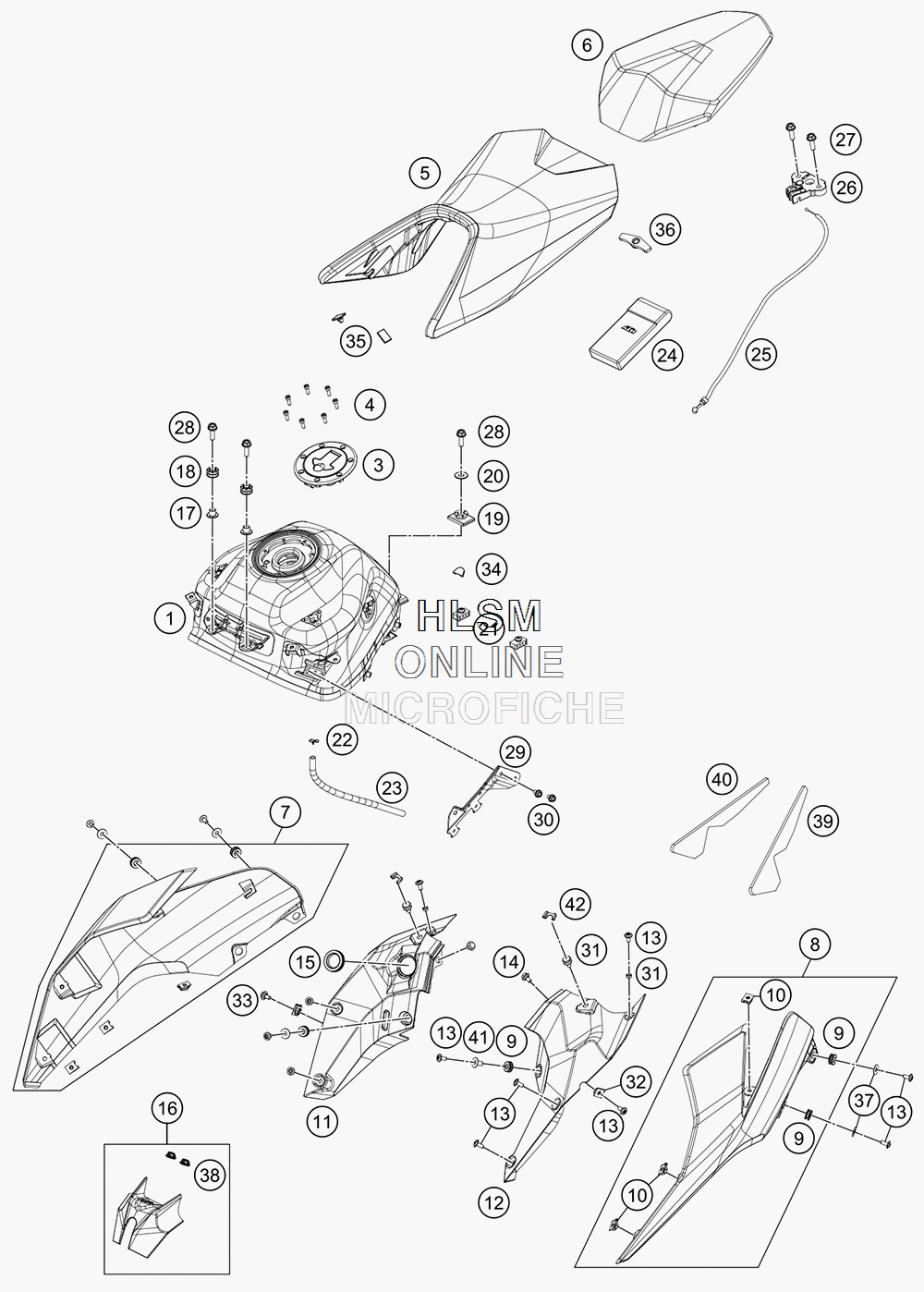

TANK- SEAT для Ktm 390 DUKE ORG - 2018 года выпуска
-
№АртикулНазвание
-
193007113000 FUEL TANKFUEL TANK
-
393807008000 FUEL TANK CAPFUEL TANK CAP
-
4J912050151 AH SCREW M5X14 BLACKAH SCREW M5X14 BLACK
-
593007040000 RIDER SEATRIDER SEAT
-
693007047000 SEAT PASSENGER COMPLETESEAT PASSENGER COMPLETE
-
793008051000EB FRONTSPOILER RIGHT ORANGEFRONTSPOILER RIGHT ORANGE
-
893008050000EB FRONTSPOILER LEFT ORANGEFRONTSPOILER LEFT ORANGE
-
993008050040 RUBBER BUSHINGRUBBER BUSHING
-
1090103097000 CLIP NUTCLIP NUT
-
1193008055000 INNER COVER RIGHTINNER COVER RIGHT
-
1293008056000 INNER COVER LEFTINNER COVER LEFT
-
1390508006001 SOCKET HEAD BOLT M6X12SOCKET HEAD BOLT M6X12
-
1493008048000 SPECIAL SCREWSPECIAL SCREW
-
1593035065010 RUBBER BUSHINGRUBBER BUSHING
-
1693008057033 COVER FOR IGNITION LOCK COMPLETECOVER FOR IGNITION LOCK COMPLETE
-
1793008034000 BUSHINGBUSHING
-
1890507013006 GROMMET TANK MOUNTINGGROMMET TANK MOUNTING
-
1993007014000 TANK GUARD REARTANK GUARD REAR
-
2090111060010 WASHER PLAIN 8,4X25X2WASHER PLAIN 8,4X25X2
-
2193007040010 SEAT COWL PADSEAT COWL PAD
-
2290107013008 CLAMPCLAMP
-
2390107013007 TUBE DRAIN CUP CAPTUBE DRAIN CUP CAP
-
2490529099000 TOOLKITTOOLKIT
-
2593007052000 CABLE SEAT LOCKCABLE SEAT LOCK
-
2693007050000 SSEAT LOCK ZSBSSEAT LOCK ZSB
-
27J025060203 HH COLLAR SCREW M6X20 SW10HH COLLAR SCREW M6X20 SW10
-
28J025080253 HEXAGON SCREW M8X25HEXAGON SCREW M8X25
-
2993015102000 FASTENINGFASTENING
-
30J025060103 HH COLLAR SCREW M6X10 SW10HH COLLAR SCREW M6X10 SW10
-
3193008044000 SLEEVE SPOILER INNER RR MTGSLEEVE SPOILER INNER RR MTG
-
3290103097000 CLIP NUTCLIP NUT
-
3390108076000 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
-
3493008059000 RUBBER CAP TANKRUBBER CAP TANK
-
3590507047041 SEAT DUMPER SOZIUS SEATSEAT DUMPER SOZIUS SEAT
-
3693007046000 SEAT COWL PADSEAT COWL PAD
-
3793008050050 WASHER 6.2X20X1.5WASHER 6.2X20X1.5
-
3893011068010 RUBBER GROMMET IGNITION LOCK COVERRUBBER GROMMET IGNITION LOCK COVER
-
3993007025020 TAPE COVER LHTAPE COVER LH
-
4093007025010 TAPE COVER RHTAPE COVER RH
-
4193014051000 FLANGEFLANGE
-
4293008065000 RUBBER GROMMET TANK SPOILERRUBBER GROMMET TANK SPOILER
