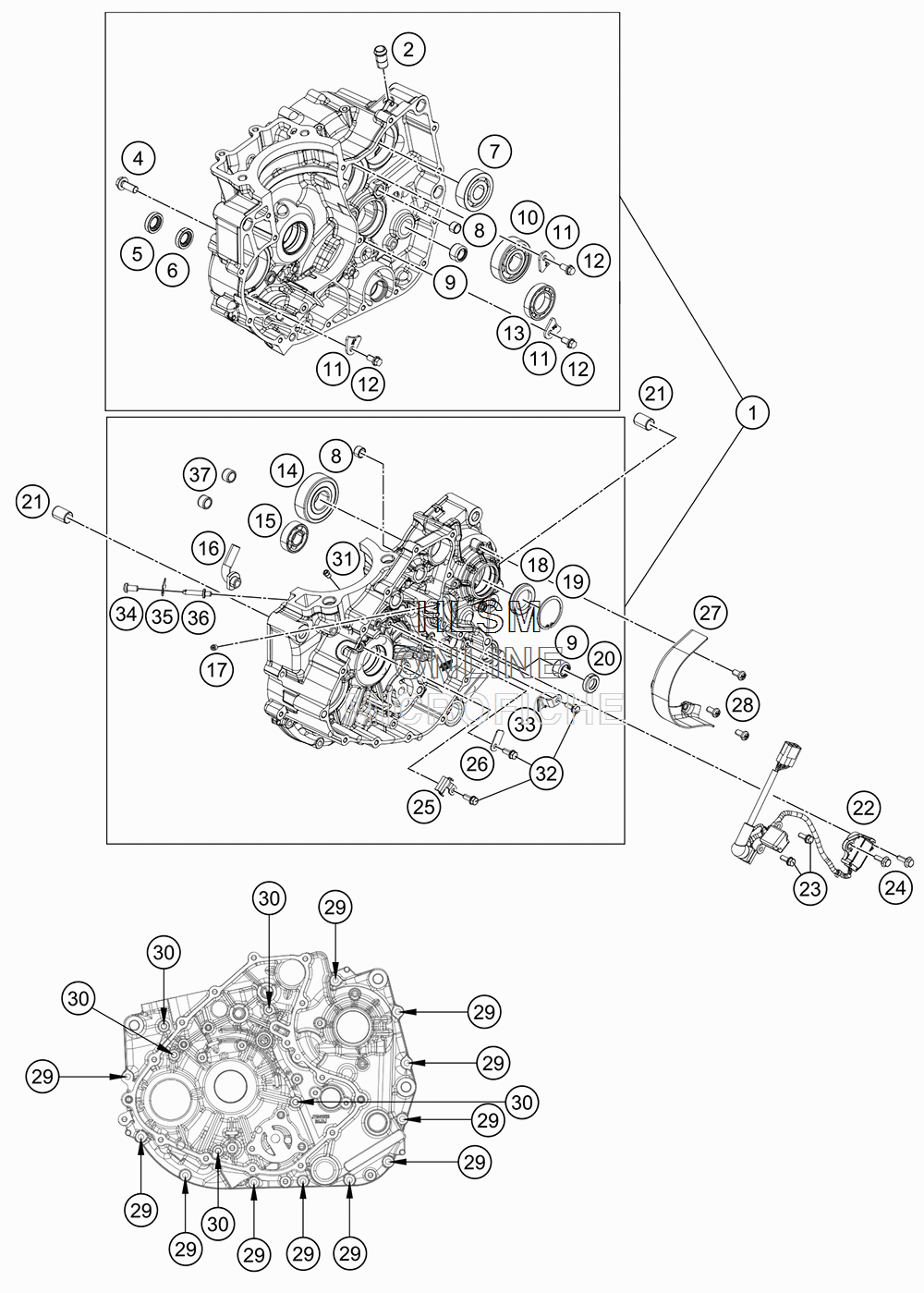

ENGINE CASE для Ktm 390 DUKE WHITE - 2018 года выпуска
-
№АртикулНазвание
-
190230000444 KIT CR' CAS ASY 390CC MY17KIT CR' CAS ASY 390CC MY17
-
290230022000 PIPE BREATHERPIPE BREATHER
-
4J011080203S FLANGED BOLT M8X20FLANGED BOLT M8X20
-
50760122406 SHAFT SEAL RING 12X24X6SHAFT SEAL RING 12X24X6
-
6J760122455 SHAFT SEALING RING 12X24X5,5SHAFT SEALING RING 12X24X5,5
-
790233010001 DEEP GROOVE BALL BEARINGDEEP GROOVE BALL BEARING
-
890234030000 BUSH SHIFT RAILBUSH SHIFT RAIL
-
9J618131912 NEEDLE ROLLER BEARING HK1312NEEDLE ROLLER BEARING HK1312
-
10J625063040 DEEP GROOVE BALL BEARING 6304DEEP GROOVE BALL BEARING 6304
-
1190230079000 STOPPER BALANCER SHAFT BEARINGSTOPPER BALANCER SHAFT BEARING
-
1290130078001 FLANGED BOLT 6X12FLANGED BOLT 6X12
-
1390130004004 BALL BEARING 25X42X9BALL BEARING 25X42X9
-
14J625063320 BALL BEARING 22X56X16-C3L-BALL BEARING 22X56X16-C3L-
-
15J625062122 BALL BEARING 15X35X11-C3-1BALL BEARING 15X35X11-C3-1
-
1690238014000 OIL PIPEOIL PIPE
-
1790230066100 OIL NOZZLEOIL NOZZLE
-
1890230077000 OIL SEAL OUTPUT SHAFTOIL SEAL OUTPUT SHAFT
-
19J472037150 CIRCLIP 37X1,5CIRCLIP 37X1,5
-
2090130003004 SEAL RING 13X22X5,5SEAL RING 13X22X5,5
-
2190130003007 DOWEL D14DOWEL D14
-
2293811023000 GEAR INDICA TION SENSORGEAR INDICA TION SENSOR
-
23J011050133 HH COLLAR SCREW M5X13 SW8HH COLLAR SCREW M5X13 SW8
-
24J025050163S FLANGED BOLT M5X16FLANGED BOLT M5X16
-
2593711022000 BRACKET HARNESSBRACKET HARNESS
-
2693711021000 PLATE HARNESSPLATE HARNESS
-
2790230047000 CHAIN GUARDCHAIN GUARD
-
28J005060123S SCREW PAN CROSS M6X12 PH SSSCREW PAN CROSS M6X12 PH SS
-
29J025060353 HEX COLLAR SCREW M6X35HEX COLLAR SCREW M6X35
-
30J028060753S FLANGED BOLT M6X75FLANGED BOLT M6X75
-
3190130164000 OIL NOZZLEOIL NOZZLE
-
3290130078001 FLANGED BOLT 6X12FLANGED BOLT 6X12
-
3393711024000 BRACKET HARNESS GI SENSORBRACKET HARNESS GI SENSOR
-
34J005060123S SCREW PAN CROSS M6X12 PH SSSCREW PAN CROSS M6X12 PH SS
-
3593830066000 SCREW PAN CROSS M6X12 PH SSSCREW PAN CROSS M6X12 PH SS
-
3693830064000 SCREW PAN CROSS M6X12 PH SSSCREW PAN CROSS M6X12 PH SS
-
3790240018000 BUSH STARTER SHAFTBUSH STARTER SHAFT
