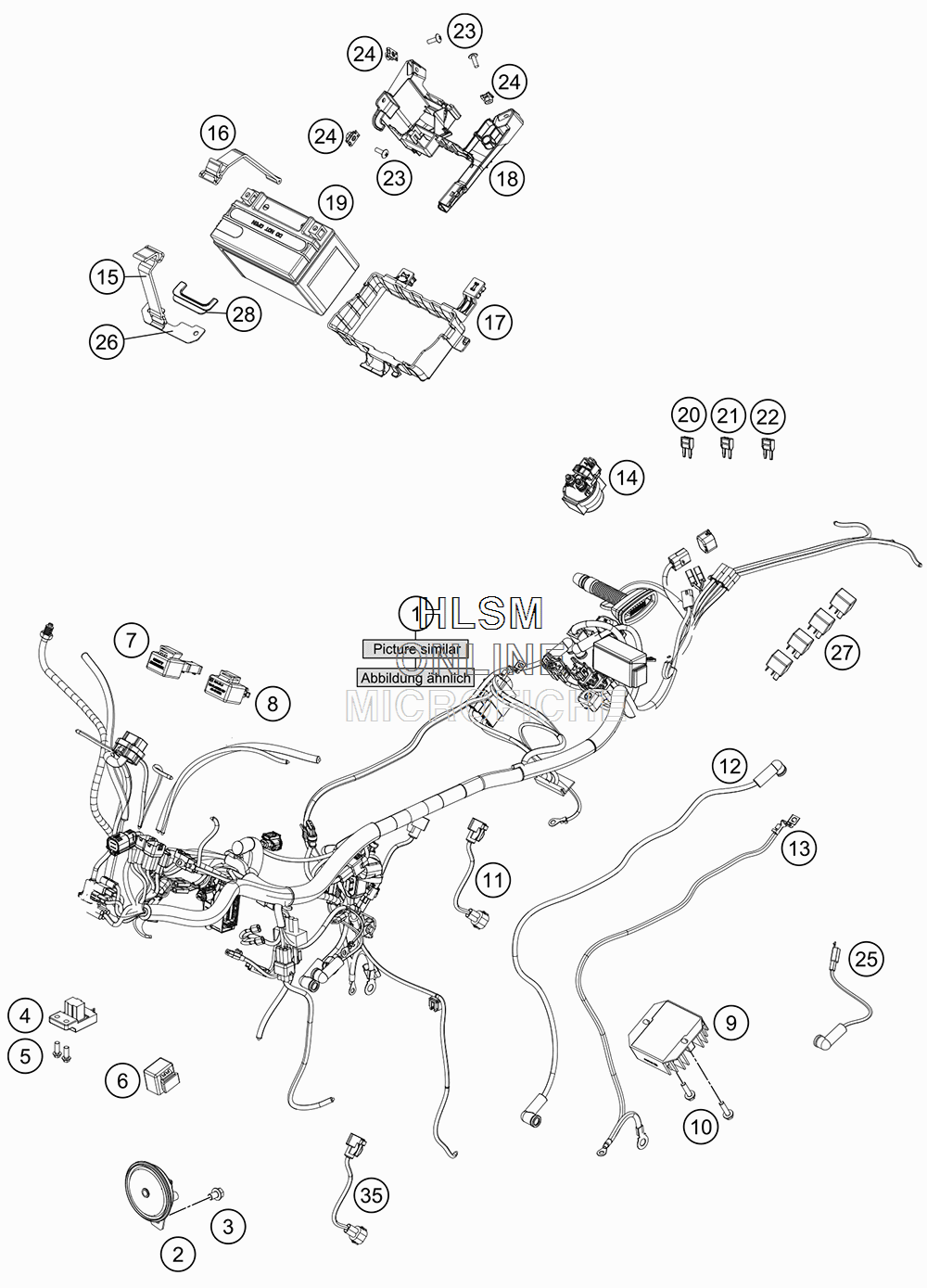

WIRING HARNESS для Ktm 390 DUKE WHITE - 2018 года выпуска`
-
№АртикулНазвание
-
193311075000 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
293011060100 HORNHORN
-
3J025080123 HH COLLAR SCREW M8X12 SW12HH COLLAR SCREW M8X12 SW12
-
493541088000 ROLLOVER SENSORROLLOVER SENSOR
-
5J025060169 HH COLLAR SCREW M6X16 SW8HH COLLAR SCREW M6X16 SW8
-
693811043000 RESISTORRESISTOR
-
793539010000 LOAD RESISTENCELOAD RESISTENCE
-
890511030000 INDICATOR RELAYINDICATOR RELAY
-
993011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
10J025060253 HH COLLAR SCREW M6X25 SW10HH COLLAR SCREW M6X25 SW10
-
10J025060253 HH COLLAR SCREW M6X25 SW10HH COLLAR SCREW M6X25 SW10
-
1293011059000 STARTER CABLE 6MMSTARTER CABLE 6MM
-
1393011197000 GROUND WIREGROUND WIRE
-
1490111058000 STARTER RELAYSTARTER RELAY
-
1593011055060 BAND BATTERYBAND BATTERY
-
1693011055000 BATTERY RUBBER HOLDERBATTERY RUBBER HOLDER
-
1793011054050 BATTERY BOXBATTERY BOX
-
1893008018060 CROSS BRACE COVERCROSS BRACE COVER
-
1990611053000 BATTERY 12V/8AHBATTERY 12V/8AH
-
2075011088010 FUSE 10AFUSE 10A
-
2175011088015 FUSE 15AFUSE 15A
-
2275011088030 FUSE 30AFUSE 30A
-
23J031050163 CHEESE-HEAD SCREW M5X16CHEESE-HEAD SCREW M5X16
-
2490108050001 CLIP NUT M5CLIP NUT M5
-
2593038091000 PIGTEIL OIL PRESSURE SWITCHPIGTEIL OIL PRESSURE SWITCH
-
2693011056100 BRACKET BATTERY BANDBRACKET BATTERY BAND
-
2790611057000 RELAY (INTERLOCK)RELAY (INTERLOCK)
-
2893011026000 CABLE PROTECTIONCABLE PROTECTION
-
3593811580000 FLASHER WIRING HARNESS USAFLASHER WIRING HARNESS USA
