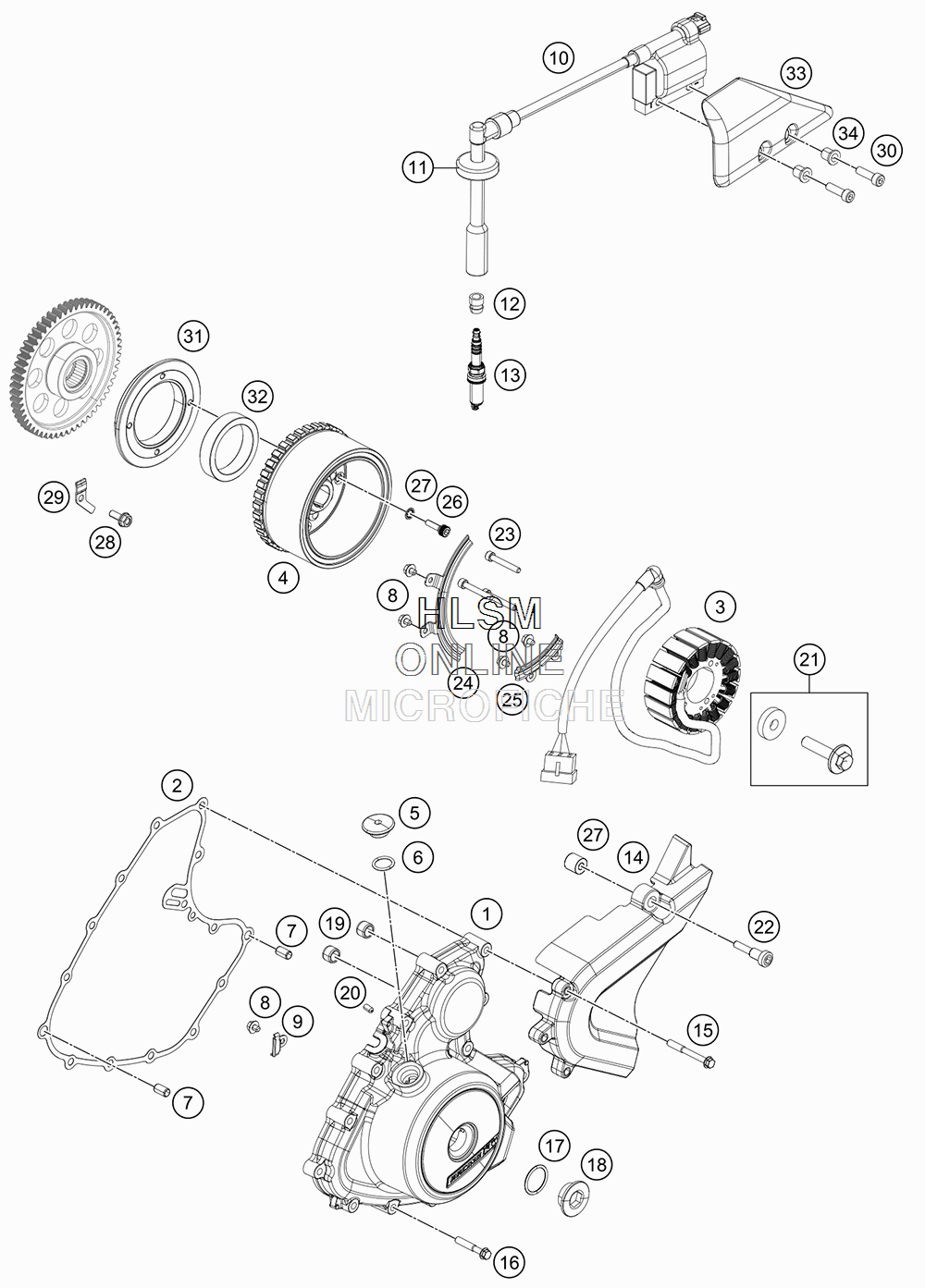

IGNITION SYSTEM для Ktm 390 DUKE WHITE - 2018 года выпуска
-
№АртикулНазвание
-
293730040000 GASKET IGNITION COVERGASKET IGNITION COVER
-
393739004000 STATOR CPL.STATOR CPL.
-
490839005000 ROTOR CPL.ROTOR CPL.
-
590139010000 PLUGPLUG
-
6J770015824 O-RING 15,8X2,4O-RING 15,8X2,4
-
790130024000 PIN DOWEL 8X6,4X14MMPIN DOWEL 8X6,4X14MM
-
8J025060083S HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
-
990230062000 BRACKET HARNESS MAGNETOBRACKET HARNESS MAGNETO
-
1090239006044 IGNITION COIL CPL.IGNITION COIL CPL.
-
1190239090001 RUBBER GASKET SPARK PLUGRUBBER GASKET SPARK PLUG
-
1290139093001 RUBBER GASKET SPARK PLUGRUBBER GASKET SPARK PLUG
-
1390239093000 SPARK PLUG M12X1,25SPARK PLUG M12X1,25
-
1490230060002 CHAIN SPROCKET GUARDCHAIN SPROCKET GUARD
-
15J025060500 FLANGED BOLT M6X50 WS8FLANGED BOLT M6X50 WS8
-
16J025060353 HEX COLLAR SCREW M6X35HEX COLLAR SCREW M6X35
-
17J770024015 O-RING 24X2,5O-RING 24X2,5
-
1890230094000 PLUG SCREW M24X1,5PLUG SCREW M24X1,5
-
1990240018000 BUSH STARTER SHAFTBUSH STARTER SHAFT
-
2090230066300 OIL NOZZLEOIL NOZZLE
-
2190239005050 ROTOR SCREW CPL.ROTOR SCREW CPL.
-
2293003082000 BOLT SOCKET M6X1XL22 BLK STEPEDBOLT SOCKET M6X1XL22 BLK STEPED
-
2390530002010 SOCKET HEAD BOLT M5X0,8X40SOCKET HEAD BOLT M5X0,8X40
-
2490230058000 PLATE HARNESS MAGNETOPLATE HARNESS MAGNETO
-
2593730059000 PLATE HARNESS 2PLATE HARNESS 2
-
2690130001001 SOCKET HEAD SCREW M6X20SOCKET HEAD SCREW M6X20
-
2790130001002 TOOTHED LOCK WASHERTOOTHED LOCK WASHER
-
2890130059000 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
2990240020002 RETAINER GEAR STARTERRETAINER GEAR STARTER
-
30J912060353 HEXAGON SCREW M6X35HEXAGON SCREW M6X35
-
3190130001000 SUPPORT FREEWHEEL CLUTCHSUPPORT FREEWHEEL CLUTCH
-
3290140026000 FREEWHEEL CLUTCHFREEWHEEL CLUTCH
-
3393039010000 COVER INGITION COILCOVER INGITION COIL
-
3493039011000 SLEEVE COVER IGNITION COILSLEEVE COVER IGNITION COIL
