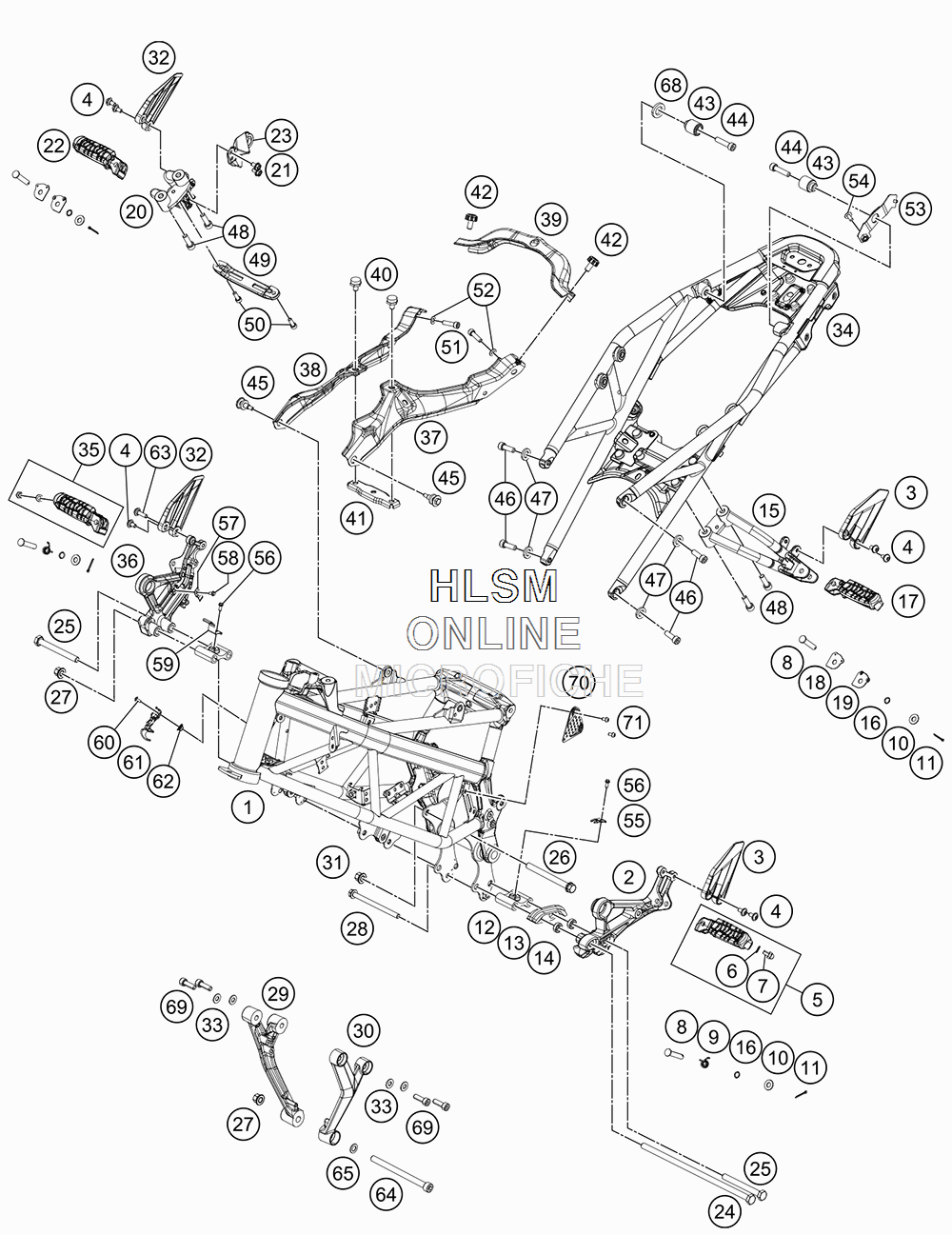

FRAME для Ktm 390 DUKE WHITE - 2018 года выпуска
-
№АртикулНазвание
-
193003001100EB FRAME DUKEFRAME DUKE
-
293003038000 FOOTREST BRACKET FRONT LEFTFOOTREST BRACKET FRONT LEFT
-
393003048050 HEEL PROTECTOR LEFTHEEL PROTECTOR LEFT
-
493008020060 SCREW M6X1X9SCREW M6X1X9
-
590103040033 FOOTREST FRONT L/S CPL.FOOTREST FRONT L/S CPL.
-
690103040001 PLAIN W ASHER 6,4X12X1PLAIN W ASHER 6,4X12X1
-
7J029060103S CAP SCREW M6X10 SSCAP SCREW M6X10 SS
-
893003054000 PIN FOOTREST PIVOT BLACKPIN FOOTREST PIVOT BLACK
-
990103042000 RETURN SPRING FOOTRESTRETURN SPRING FOOTREST
-
10J125080004 WASHER M8WASHER M8
-
11J094018250 PIN 25X1,8MMPIN 25X1,8MM
-
1290103038001 TAP FOOTREST BRACKET FRONTTAP FOOTREST BRACKET FRONT
-
1390104070000 CHAIN GUIDECHAIN GUIDE
-
1490104066010 SPACER CHAIN GUIDESPACER CHAIN GUIDE
-
1593003048000 FOOTREST BRACKET REAR LEFTFOOTREST BRACKET REAR LEFT
-
16J770009015 O-RING 9X1,5O-RING 9X1,5
-
1790103050033 FOOTREST REAR L/S CPL.FOOTREST REAR L/S CPL.
-
1893003053000 PLATE LOCK PILLION STEP BOTTOMPLATE LOCK PILLION STEP BOTTOM
-
1993003052000 PLATE LOCK PILLION STEP TOPPLATE LOCK PILLION STEP TOP
-
2093003049000 FOOTREST BRACKET REAR RIGHTFOOTREST BRACKET REAR RIGHT
-
21J025060101 HEXAGON SCREW M6X10HEXAGON SCREW M6X10
-
2290103051033 FOOTREST REAR R/S CPL.FOOTREST REAR R/S CPL.
-
2393005084000 RETAINING BRACKETRETAINING BRACKET
-
24J025102656 HH COLLAR SCREW M10X1,25X265HH COLLAR SCREW M10X1,25X265
-
25J025100926 HH COLLAR SCREW M10X1,25X92HH COLLAR SCREW M10X1,25X92
-
26J025101103 HH COLLAR SCREW M10X110 WS14HH COLLAR SCREW M10X110 WS14
-
2790103038002 FLANGED NUT M10X1,25 WS14FLANGED NUT M10X1,25 WS14
-
28J027081053 HH COLLAR SCREW M8X105 SW12HH COLLAR SCREW M8X105 SW12
-
2993303006000 ENGINE BRACE RIGHTENGINE BRACE RIGHT
-
3093303005000 ENGINE BRACE LEFT250/390ENGINE BRACE LEFT250/390
-
3193003005100 NUT ENGINE SUPPORTNUT ENGINE SUPPORT
-
3293003049050 HEEL PROTECTOR RIGHTHEEL PROTECTOR RIGHT
-
33J125080006 WASHER M8WASHER M8
-
349300300200028 REAR FRAME WHITEREAR FRAME WHITE
-
3590103041033 FOOTREST FRONT R/S CPL.FOOTREST FRONT R/S CPL.
-
3693003039000 FOOTREST BRACKET FRONT RIGHTFOOTREST BRACKET FRONT RIGHT
-
3793003002050 SEAT SUPPORT LEFTSEAT SUPPORT LEFT
-
3893003002151 SEAT SUPPORT RIGHTSEAT SUPPORT RIGHT
-
3993003002030 CROSS BRACECROSS BRACE
-
4093007044000 RETAINING PINRETAINING PIN
-
4193003001070 SEAT COWL FRONT COMPLETESEAT COWL FRONT COMPLETE
-
4293008023000 RUBBER BUFFERRUBBER BUFFER
-
4393007047033 SEAT SUPPORT COMPLETESEAT SUPPORT COMPLETE
-
44J912080303 HEXAGON SOCKET SCREW M8X30HEXAGON SOCKET SCREW M8X30
-
4593007046050 SCREWSCREW
-
4693003002070 HEXAGON SOCKET SCREWM8X1.2 5X25HEXAGON SOCKET SCREWM8X1.2 5X25
-
4793003002080 WASHER PLAIN-ID8.2XOD 14XT 2 BLKWASHER PLAIN-ID8.2XOD 14XT 2 BLK
-
4890103098000 BOLTBOLT
-
4993003056000 PASSENGER FOOTREST BRACKETPASSENGER FOOTREST BRACKET
-
50J912060143 HEX SOCKET SCREW M6X14HEX SOCKET SCREW M6X14
-
5193008019070 HEXAGON SOCKET SCREW M8X31HEXAGON SOCKET SCREW M8X31
-
52J125080002 WASHER PLAINWASHER PLAIN
-
5393006040060 RETAINING BRACKETRETAINING BRACKET
-
54J031050163 CHEESE-HEAD SCREW M5X16CHEESE-HEAD SCREW M5X16
-
5590111045050 CABLE BRACKETCABLE BRACKET
-
5690103032000 FLANGED BOLT M6X14FLANGED BOLT M6X14
-
5793013041000 RETAINING BRACKETRETAINING BRACKET
-
58J025060109 HH-COLLAR SCREW M6X10 SW8HH-COLLAR SCREW M6X10 SW8
-
5993013026000 SUPPORTSUPPORT
-
6093008044000 SLEEVE SPOILER INNER RR MTGSLEEVE SPOILER INNER RR MTG
-
6193032059010 GUIDE CLUTCH CABLEGUIDE CLUTCH CABLE
-
6290108050001 CLIP NUT M5CLIP NUT M5
-
6393008043000 SCREW M6X1X25SCREW M6X1X25
-
6490203008000 BOLT M10X135BOLT M10X135
-
65J125100009 WASHER M10WASHER M10
-
68J125140003 WASHER - PLAINWASHER - PLAIN
-
69J912080251 HEXAGON SCREW M8X25HEXAGON SCREW M8X25
-
7093008041060 HEAT PROTECTION SIDE PANELINGHEAT PROTECTION SIDE PANELING
-
71J031060106 SCREW BUTTON HEAD-M5X0.8XL 8XBSCREW BUTTON HEAD-M5X0.8XL 8XB
