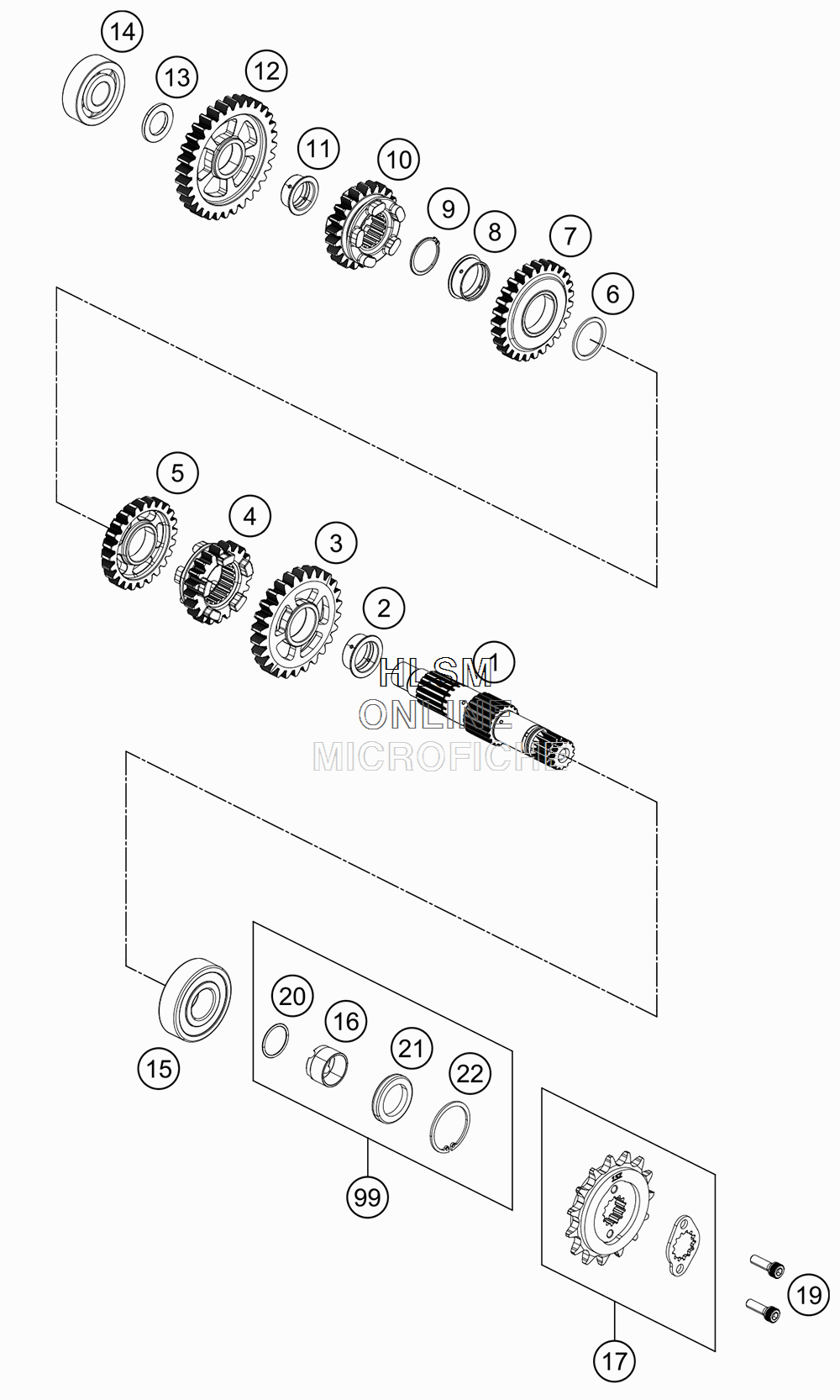

TRANSMISSION II - COUNTERSHAFT для Ktm 390 DUKE WHITE - 2018 года выпуска`
-
№АртикулНазвание
-
190233010010 COUNTERSHAFT CPL.COUNTERSHAFT CPL.
-
290233012001 COLLAR BUSHCOLLAR BUSH
-
390233012000 GEAR 2ND DRIVENGEAR 2ND DRIVEN
-
490233016000 GEAR 6TH DRIVENGEAR 6TH DRIVEN
-
590233014000 GEAR 4TH DRIVENGEAR 4TH DRIVEN
-
690233037000 THRUST WASHERTHRUST WASHER
-
790233013000 GEAR 3RD DRIVENGEAR 3RD DRIVEN
-
890233013001 COLLAR BUSHCOLLAR BUSH
-
9J472023120 CIRCLIP 23,5X1,2CIRCLIP 23,5X1,2
-
1090233015000 GEAR 5TH DRIVENGEAR 5TH DRIVEN
-
1190233011001 COLLAR BUSHCOLLAR BUSH
-
1290233011000 GEAR 1ST DRIVENGEAR 1ST DRIVEN
-
1390233038000 THRUST WASHERTHRUST WASHER
-
1490233010001 DEEP GROOVE BALL BEARINGDEEP GROOVE BALL BEARING
-
15J625063320 BALL BEARING 22X56X16-C3L-BALL BEARING 22X56X16-C3L-
-
1690233030000 BUSHING SPROCKETBUSHING SPROCKET
-
1790833029044 SPROCKET 15T W. LOCKING PLATESPROCKET 15T W. LOCKING PLATE
-
1990110057000 BOLT M6X10BOLT M6X10
-
20J770019515 O-RING 19,5X1,5O-RING 19,5X1,5
-
2190230077000 OIL SEAL OUTPUT SHAFTOIL SEAL OUTPUT SHAFT
-
22J472037150 CIRCLIP 37X1,5CIRCLIP 37X1,5
-
9990233030044 SEALING KIT COUNTERSHAFTSEALING KIT COUNTERSHAFT
