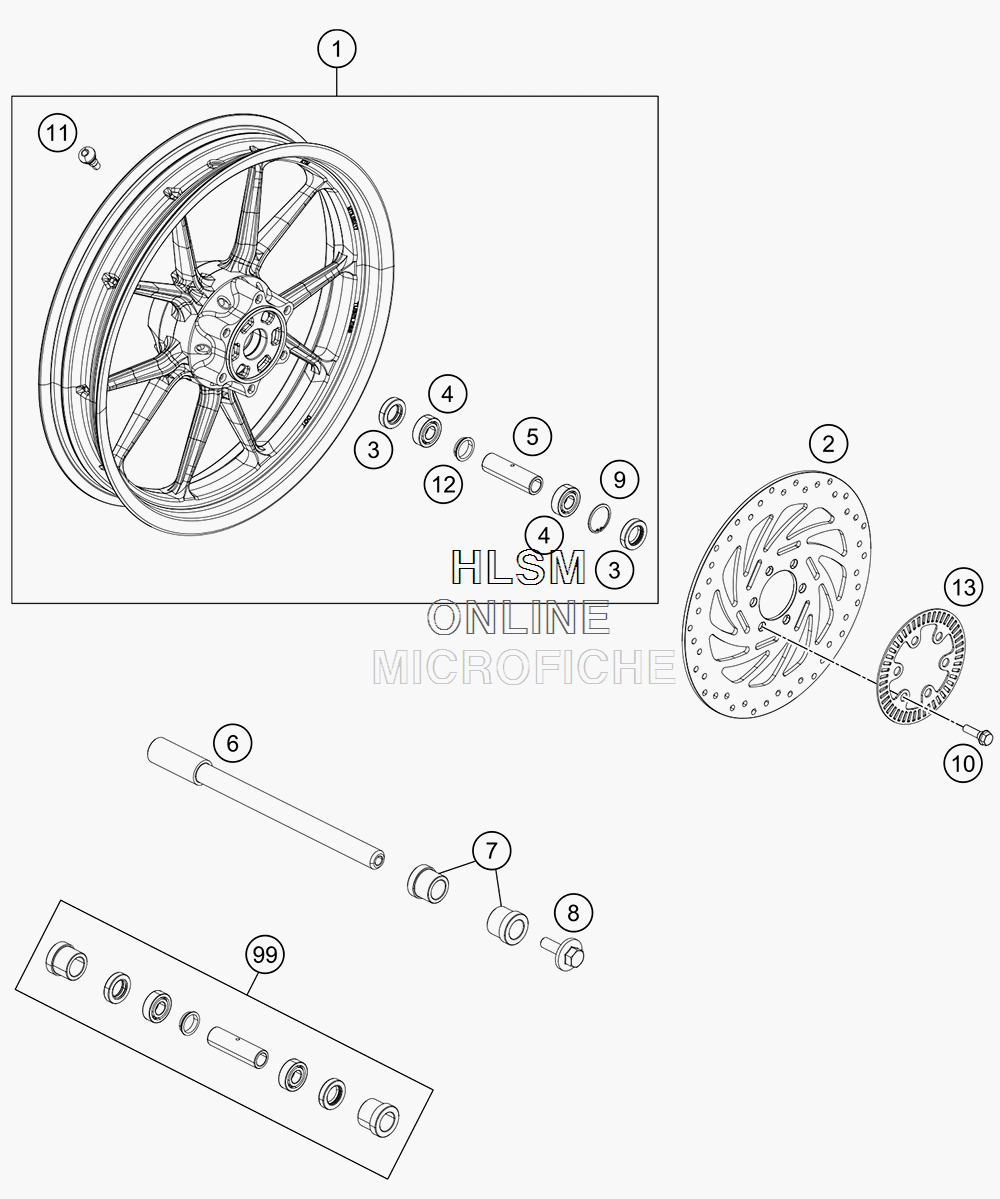

FRONT WHEEL для Ktm 390 DUKE WHITE - 2018 года выпуска
-
№АртикулНазвание
-
193009001044EB FRONT WHEEL CPL. ORANGEFRONT WHEEL CPL. ORANGE
-
293309060000 BRAKE DISC FRONT 320MMBRAKE DISC FRONT 320MM
-
3J760223508 SHAFT SEAL RING 22X35X8SHAFT SEAL RING 22X35X8
-
4J625062023 BALL BEARING 6202BALL BEARING 6202
-
590109011000 BEARING SPACER TUBE FRONTBEARING SPACER TUBE FRONT
-
693009081000 FRONT WHEEL SPINDLEFRONT WHEEL SPINDLE
-
790209083000 BEARING BUSHINGBEARING BUSHING
-
890109082000 AXLESCREW M8AXLESCREW M8
-
9J472035150 CIRCLIP 35X1,5CIRCLIP 35X1,5
-
1090110062000 SPECIAL SCREW M8X25 SELF LOCK.SPECIAL SCREW M8X25 SELF LOCK.
-
1190109076000 VALVE CPL.VALVE CPL.
-
1290109011001 FIXATION BEARING SPACER TUBEFIXATION BEARING SPACER TUBE
-
1393042020000 SENSORRING ABSSENSORRING ABS
-
9990109015100 FRONT WHEEL REP . KITFRONT WHEEL REP . KIT
