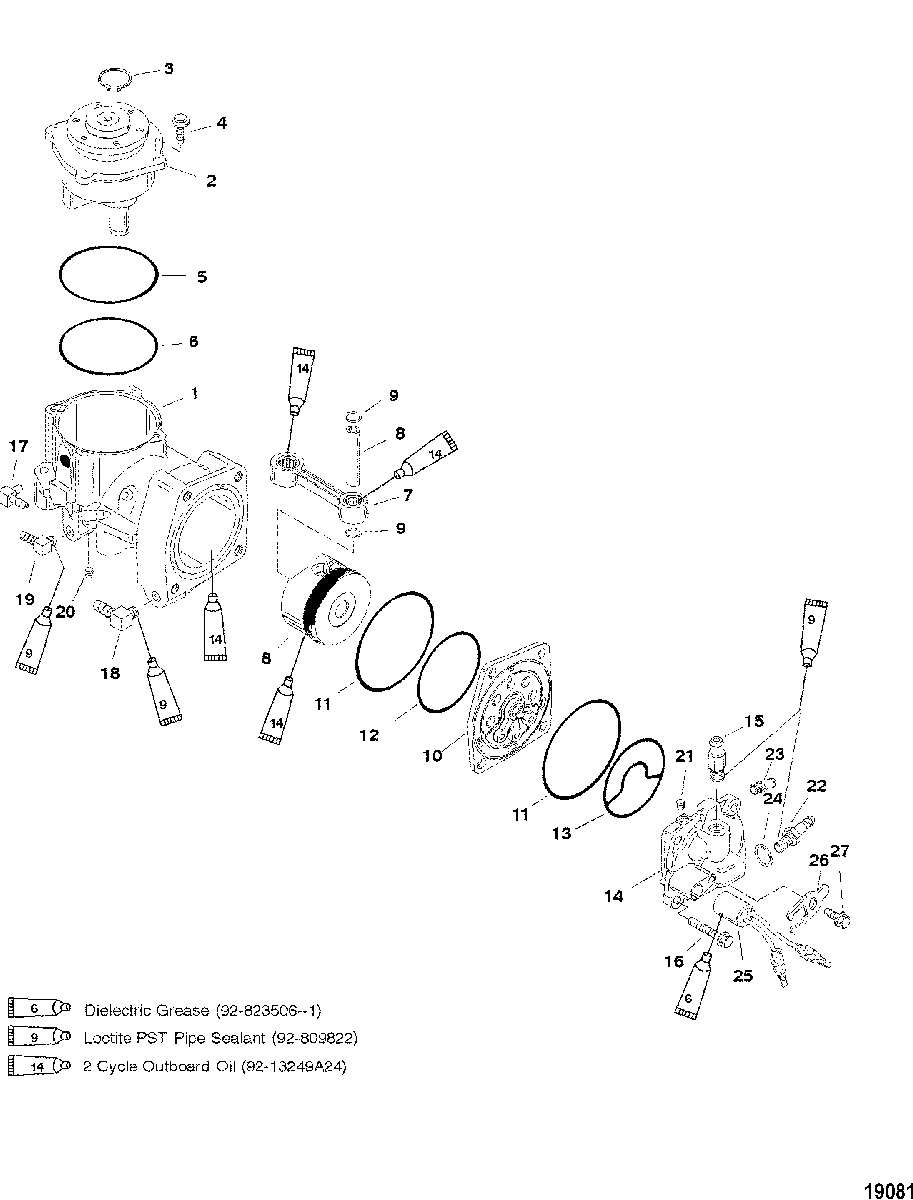

Air Compressor Components для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
18M0133589 COMPRESSOR ASSEMBLY, AirCOMPRESSOR ASSEMBLY, Air
-
21100-8M0050792 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3NSS NOT SOLD SEPARATE, Snap RingNOT SOLD SEPARATE, Snap Ring
-
410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
525-89224 O-RINGO-RING
-
625-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
7653-833146T06 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
8828222A4 PISTON ASSEMBLYPISTON ASSEMBLY
-
953-8348101 RING, LockRING, Lock
-
10835088A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
1125-67207 O-RING, (3.489 x .070)O-RING, (3.489 x .070)
-
1225-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
1326-828225 SEALSEAL
-
148M0073890 HEAD ASSEMBLY, CompressorHEAD ASSEMBLY, Compressor
-
1522-8307532 FITTING, StraightFITTING, Straight
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1722-15133 FITTINGFITTING
-
1822-856824 ELBOWELBOW
-
1922-196881 FITTING, (90 Degree)FITTING, (90 Degree)
-
2022-390721 PLUGPLUG
-
2122-390721 PLUG (USE WHERE APPLICABLE)PLUG (USE WHERE APPLICABLE)
-
2222-856744 FITTINGFITTING
-
2322-16604 FITTING, Straight (.125-27)FITTING, Straight (.125-27)
-
2425-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
2513536A12 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
26137151 RETAINERRETAINER
-
2710-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
-25-832804A03 O-RING KITO-RING KIT
