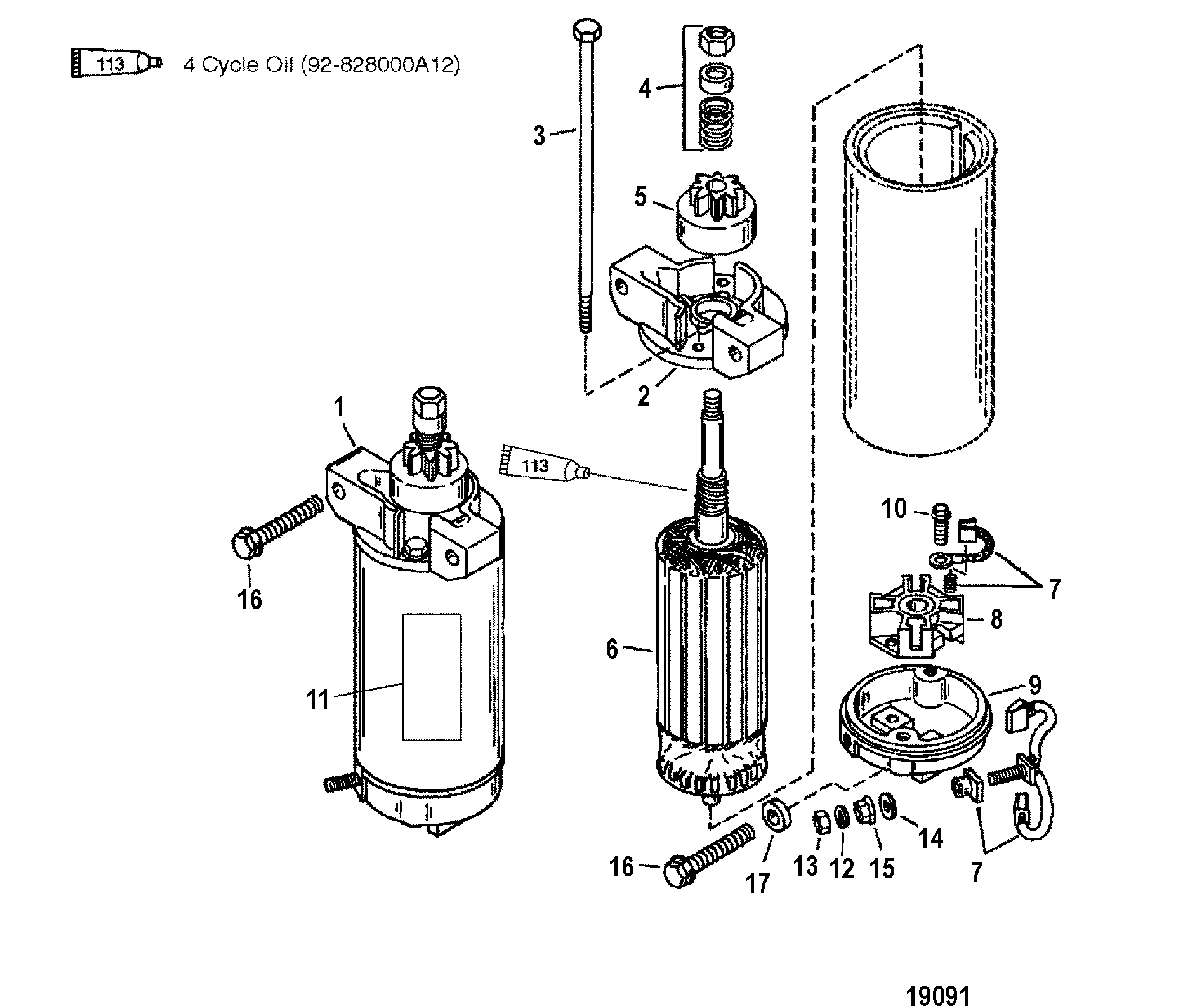

Starter Motor для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
150-898265008 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
28236392 DRIVE CAPDRIVE CAP
-
310-8236411 THRU BOLTTHRU BOLT
-
48236401 DRIVE KITDRIVE KIT
-
5898265015 PINIONPINION
-
68236381 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
98119011 CAP, CommutatorCAP, Commutator
-
10F15158 SCREWSCREW
-
11NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1511-20890 NUT, (.250-20)NUT, (.250-20)
-
1610-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1723-824921 SPACERSPACER
