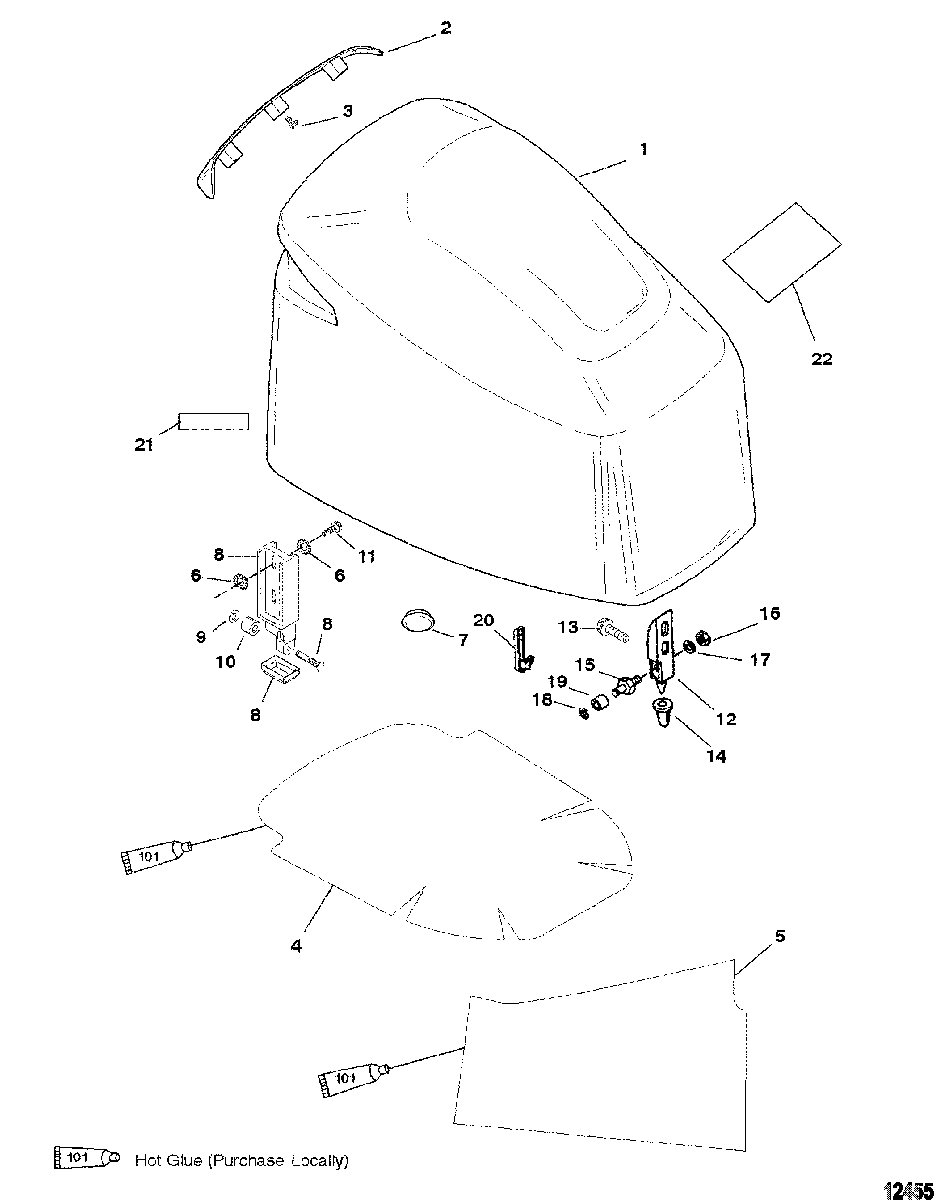

Top Cowl для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1112-850299T1 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
1112-850299T2 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
2850300F1 CAPCAP
-
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4854371A1 SOUND BLANKET, TopSOUND BLANKET, Top
-
5NSS NOT SOLD SEPARATE, Sound Blanket-SideNOT SOLD SEPARATE, Sound Blanket-Side
-
6855890 WEDGEWEDGE
-
719-823865 CAP PLUGCAP PLUG
-
8850682A06 REAR LATCH HOOK ASSEMBLYREAR LATCH HOOK ASSEMBLY
-
953-8237951 RING, RetainingRING, Retaining
-
10815263 ROLLERROLLER
-
1110-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
128M0036792 BRACKET, FrontBRACKET, Front
-
1310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
14815477 BUMPER, LatchBUMPER, Latch
-
158155381 PIN, RollPIN, Roll
-
1611-401366 NUT, (M6)NUT, (M6)
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1853-8237951 RING, RetainingRING, Retaining
-
19815263 ROLLERROLLER
-
20826639T COVERCOVER
-
21NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
22NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
