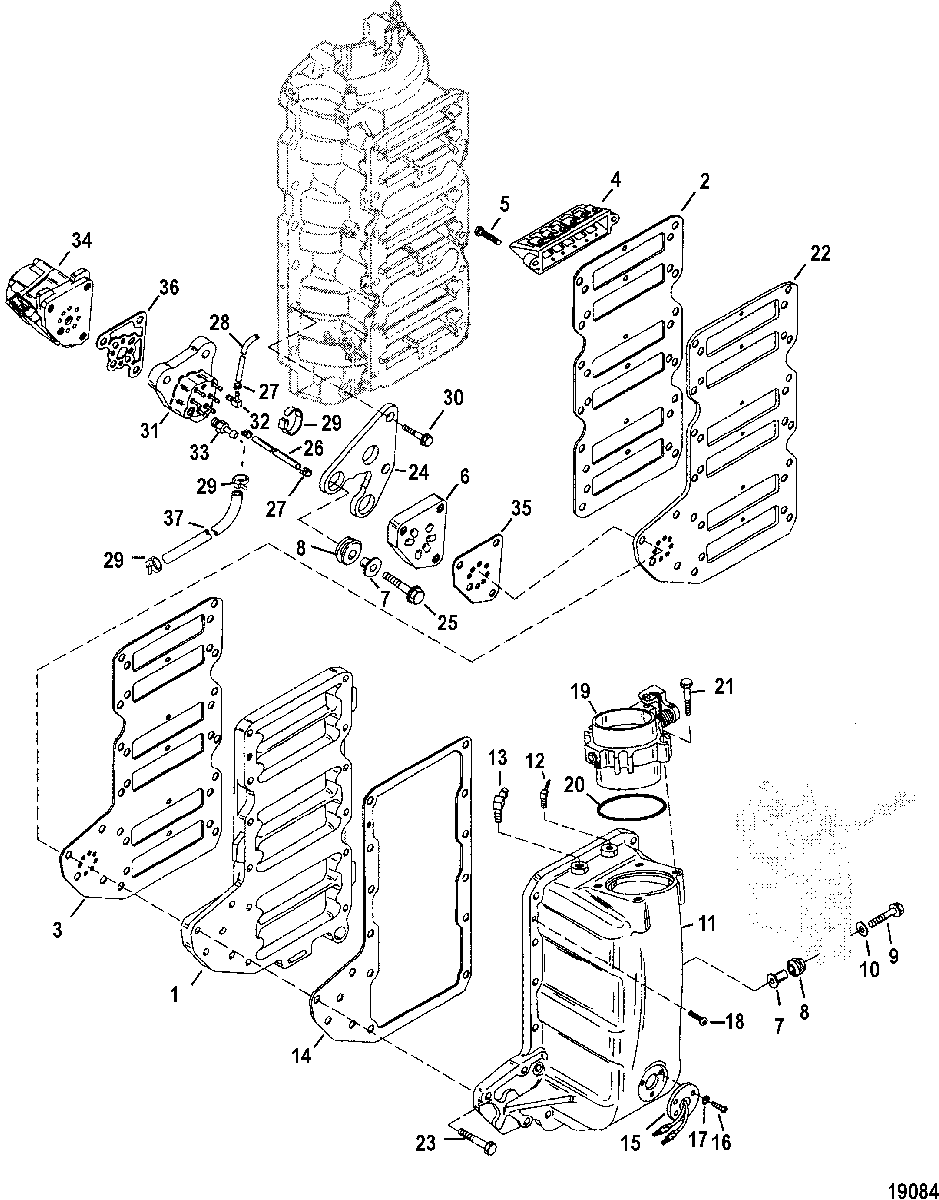

Air Handler Components для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
-850287T10 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1850281A1 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
227-804680 GASKETGASKET
-
327-850282 GASKETGASKET
-
4828623T6 REED BLOCKREED BLOCK
-
510-855525 SCREW (M6 X 1)SCREW (M6 X 1)
-
6855644T DISTRIBUTORDISTRIBUTOR
-
723-855364 BUSHINGBUSHING
-
825-855362001 GROMMETGROMMET
-
910-4000355 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1012-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
11855631A1 PLENUM KIT, AirPLENUM KIT, Air
-
1222-8554243 FITTINGFITTING
-
1322-8554242 ELBOWELBOW
-
14850892 GASKETGASKET
-
1513221T01 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1610-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1810-4001987 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
19841194T04 THROTTLE BODY KITTHROTTLE BODY KIT
-
2025-855426 O-RINGO-RING
-
2110-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
22855524 PLATEPLATE
-
2310-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
24855588 BRACKETBRACKET
-
2510-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
2632-8M0054213 TUBING (6 IN.)TUBING (6 IN.)
-
2756762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
2832-8M0054152 TUBING, (36.00 Inches Bulk)TUBING, (36.00 Inches Bulk)
-
2954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3010-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
318552842 BRACKETBRACKET
-
3222-8554243 FITTINGFITTING
-
3322-64705 FITTINGFITTING
-
34855884P1 PUMP, OilPUMP, Oil
-
3527-856542 GASKETGASKET
-
3627-8565421 GASKETGASKET
-
3732-82381455 TUBING, (25.00 Inches Bulk)TUBING, (25.00 Inches Bulk)
-
-27-8M0133170 GASKET SETGASKET SET
