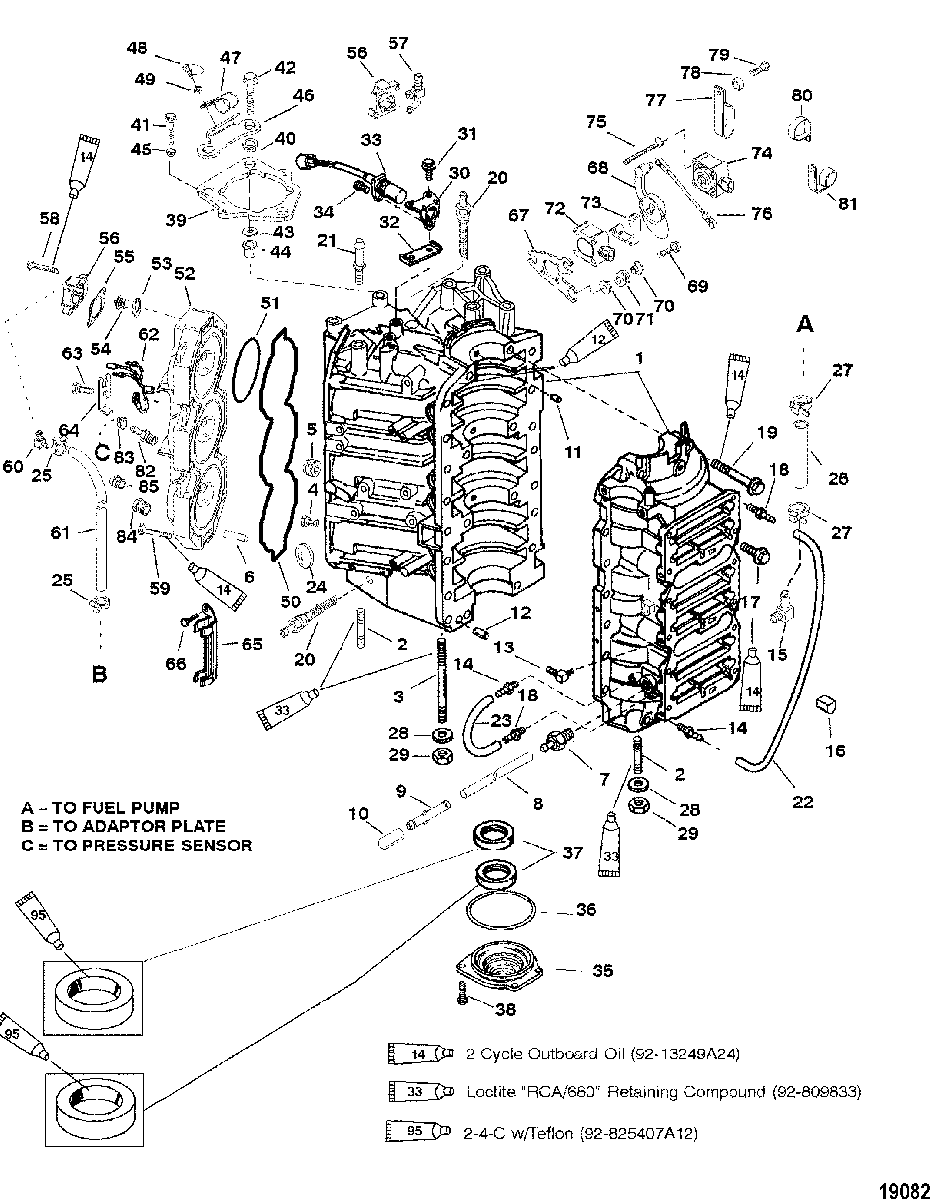

Cylinder Block and End Cap для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1885-9811A44 CYLINDER BLOCK
(225)CYLINDER BLOCK
(225) -
1885-9811A43 CYLINDER BLOCK
(200)CYLINDER BLOCK
(200) -
216-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
316-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
422-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
522-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
68248577 DEFLECTOR, WaterDEFLECTOR, Water
-
721-8781051 CHECK VALVECHECK VALVE
-
832-8M0108355 HOSE, (57.00 Inches Bulk) (6 IN.)HOSE, (57.00 Inches Bulk) (6 IN.)
-
922-822769 CONNECTORCONNECTOR
-
10NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
1117-8M0036405 PINPIN
-
1217-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1322-8245021 CONNECTORCONNECTOR
-
1421-426585 CHECK VALVECHECK VALVE
-
1522-856842 ELBOWELBOW
-
1619-850309001 PLUGPLUG
-
1710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1821-8159234 CHECK VALVECHECK VALVE
-
1910-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
2035-8348083 STRAINERSTRAINER
-
218215832 PINPIN
-
2232-892024122 TUBING, (20.00 Feet Bulk) (22-1/2 IN.)TUBING, (20.00 Feet Bulk) (22-1/2 IN.)
-
2332-892024122 TUBING, (20.00 Feet Bulk) (3-3/4 IN.)TUBING, (20.00 Feet Bulk) (3-3/4 IN.)
-
24NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2632-85682239 TUBING, (17.00 Inches Bulk) (9-1/4 IN.)TUBING, (17.00 Inches Bulk) (9-1/4 IN.)
-
2754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2812-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2911-4013610 NUT, (M10)NUT, (M10)
-
308212251 BRACKETBRACKET
-
3110-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
32822486 BRACKET, GuideBRACKET, Guide
-
338285581 ENCODERENCODER
-
3410-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
351171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3625-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
3726-8308981 SEAL, OilSEAL, Oil
-
3810-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
39855671A2 PLATE ASSEMBLYPLATE ASSEMBLY
-
4023-855729 MOUNTMOUNT
-
4110-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
4210-82130175 SCREW (M10 X 75)SCREW (M10 X 75)
-
4312-855725 WASHERWASHER
-
4423-855726 SPACERSPACER
-
4523-855727 SPACERSPACER
-
46856816 BRACKETBRACKET
-
4754-8568781 CLAMPCLAMP
-
4810-4010610 SCREW, (M6 x 10) Stainless SteelSCREW, (M6 x 10) Stainless Steel
-
4912-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
50818574 SEALSEAL
-
5125-818573 O-RINGO-RING
-
52903-850275A1 CYLINDER HEAD
(STARBOARD 225)CYLINDER HEAD
(STARBOARD 225) -
52903-850276A1 CYLINDER HEAD
(PORT 225)CYLINDER HEAD
(PORT 225) -
52903-850275A2 CYLINDER HEAD
(STARBOARD 200)CYLINDER HEAD
(STARBOARD 200) -
52903-850276A4 CYLINDER HEAD
(PORT 200)CYLINDER HEAD
(PORT 200) -
5326-854639001 SEALSEAL
-
548502792 THERMOSTATTHERMOSTAT
-
5527-8503181 GASKET, Thermostat CoverGASKET, Thermostat Cover
-
568503173 THERMOSTAT COVERTHERMOSTAT COVER
-
5722-8533393 FITTING
(PORT)FITTING
(PORT) -
5810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
5910-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
6022-8533394 ELBOW
(STARBOARD)ELBOW
(STARBOARD) -
6132-81431247 TUBING
(STBD. 21 IN.)TUBING
(STBD. 21 IN.) -
6132-81431247 TUBING
(PORT 20-1/2 IN.)TUBING
(PORT 20-1/2 IN.) -
6213536A12 SENSOR ASSEMBLY, Temperature
(PORT)SENSOR ASSEMBLY, Temperature
(PORT) -
6213536A14 SENSOR ASSEMBLY, Temperature
(STARBOARD)SENSOR ASSEMBLY, Temperature
(STARBOARD) -
6310-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
64137151 RETAINERRETAINER
-
658266241 CLAMPCLAMP
-
6610-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
678544862 BRACKETBRACKET
-
68850290 LEVER, TPILEVER, TPI
-
6910-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
7023-8318701 BUSHINGBUSHING
-
7125-834985 GROMMETGROMMET
-
728M6005166 INDICATOR, Throttle Position
(INSIDE)INDICATOR, Throttle Position
(INSIDE) -
73850882 SPACERSPACER
-
748M6005165 INDICATOR, Throttle Position
(OUTSIDE)INDICATOR, Throttle Position
(OUTSIDE) -
7510-40011117 SCREW, (M5 x 65) Stainless SteelSCREW, (M5 x 65) Stainless Steel
-
761938540 LINK, ThrottleLINK, Throttle
-
7754-8568341 CLAMPCLAMP
-
7823-824921 SPACERSPACER
-
7910-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
8054-858951A01 CLAMPCLAMP
-
8154-8568311 CLAMPCLAMP
-
8222-859092 FITTINGFITTING
-
8356762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
8422-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
8522-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
-854198R99 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199A99 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-27-8M0133170 GASKET SETGASKET SET
