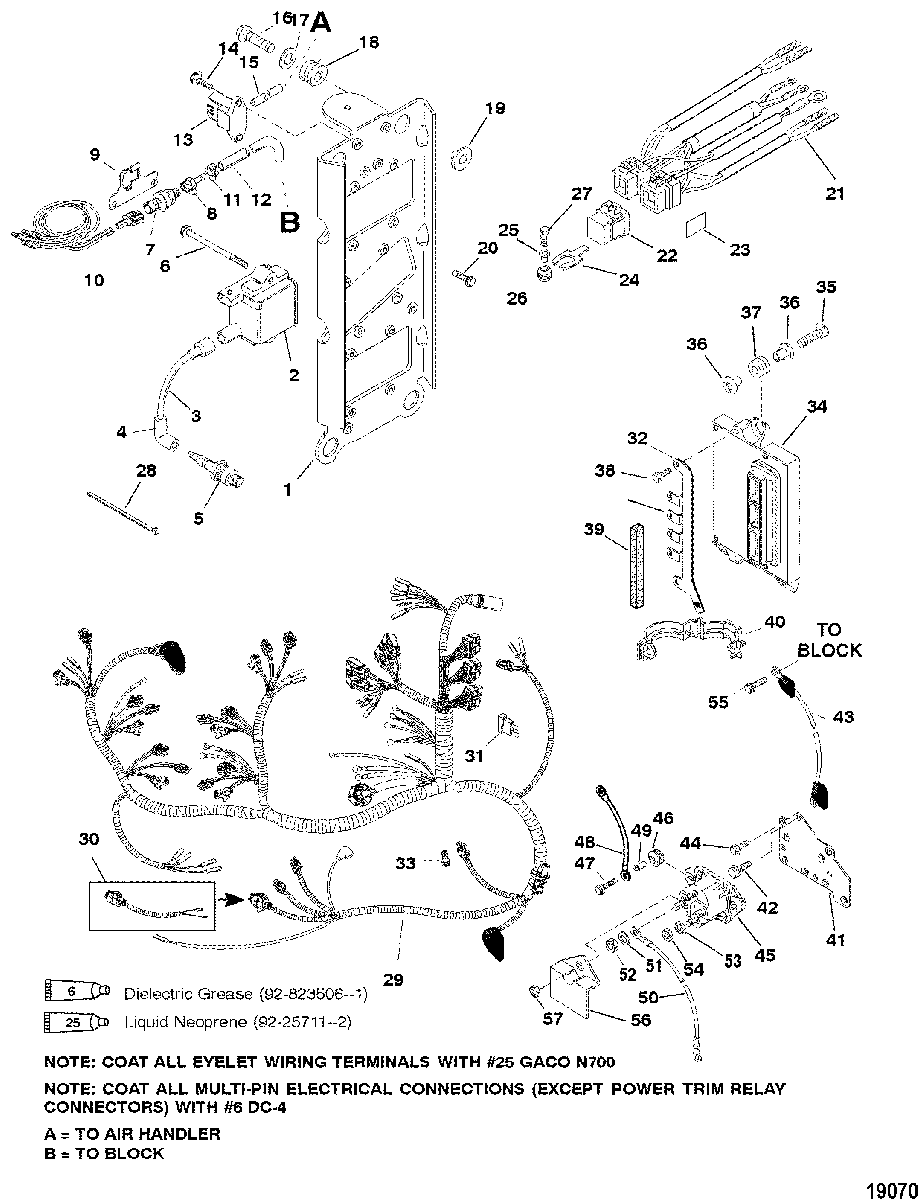

Electrical Components для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1850295T4 PLATE, Electrical MountingPLATE, Electrical Mounting
-
2339-856991A1 COIL, IgnitionCOIL, Ignition
-
384-821945A63 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
485-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
533-889597Q SPARK PLUG
(HEAVY DUTY)SPARK PLUG
(HEAVY DUTY) -
533-8557171 SPARK PLUG
(LIGHT DUTY)SPARK PLUG
(LIGHT DUTY) -
610-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
78M6000628 SENSORSENSOR
-
822-856594 FITTING, BarbedFITTING, Barbed
-
9856600 RETAINERRETAINER
-
1084-856567A1 HARNESS ASSEMBLY, AdaptorHARNESS ASSEMBLY, Adaptor
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1232-9912878 HOSE, (.187) (26.00 Inches Bulk) (15 IN.)HOSE, (.187) (26.00 Inches Bulk) (15 IN.)
-
13825762 SENSOR, MAPSENSOR, MAP
-
1410-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1532-8M0054152 TUBING, (36.00 Inches Bulk) (28-1/2 IN.)TUBING, (36.00 Inches Bulk) (28-1/2 IN.)
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1712-49436 WASHERWASHER
-
1825-833155 GROMMETGROMMET
-
1923-8502341 BUSHINGBUSHING
-
2010-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2184-819514A14 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
22882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
23NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
24828102 BRACKETBRACKET
-
2523-818968 BUSHINGBUSHING
-
2625-818967 GROMMETGROMMET
-
2710-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2984-850385A2 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
3084-856624A2 HARNESS ASSEMBLY (SERVICE ITEM)HARNESS ASSEMBLY (SERVICE ITEM)
-
3188-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
328289471 BRACKET, Fuse HolderBRACKET, Fuse Holder
-
3310-855634 SCREW (M4 X .7)SCREW (M4 X .7)
-
34858891A23 ECU, Engine Control Unit
(225)ECU, Engine Control Unit
(225) -
34858891A22 ECU, Engine Control Unit
(200ECU, Engine Control Unit
(200 -
3510-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3623-8318701 BUSHINGBUSHING
-
3725-834985 GROMMETGROMMET
-
3810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
39830897 PADPAD
-
4054-833136 CLIPCLIP
-
418331371 PLATE, Solenoid MountingPLATE, Solenoid Mounting
-
4210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4384-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
4410-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
4589-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
4625-822179 GROMMETGROMMET
-
4710-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4884-93388A14 CABLE ASSEMBLY (BLACK)CABLE ASSEMBLY (BLACK)
-
4923-818968 BUSHINGBUSHING
-
5084-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
5113-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
5211-68292 NUT, (.312-18)NUT, (.312-18)
-
5311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
5411-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
5510-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
5685-78866 INSULATORINSULATOR
-
5711-45076 NUT, (#10-32) Brass (BRASS)NUT, (#10-32) Brass (BRASS)
