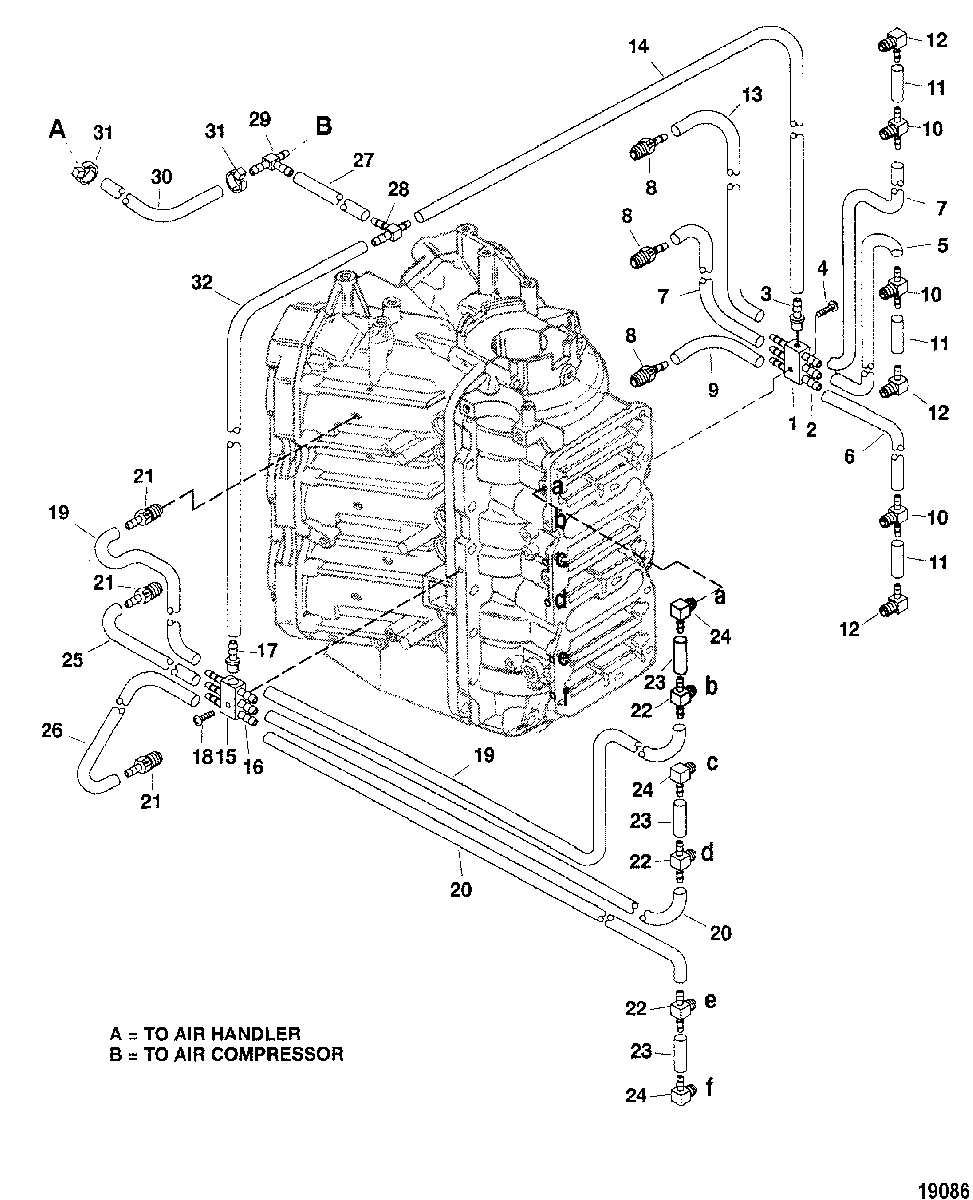

Bleed System для Mariner - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1827210A9 MANIFOLD ASSEMBLY, Bleed System
PORTMANIFOLD ASSEMBLY, Bleed System
PORT -
221-426233 CHECK VALVE
PORTCHECK VALVE
PORT -
322-13035002 FITTING
PORTFITTING
PORT -
410-92051 SCREW, (10-16 x .75)
PORTSCREW, (10-16 x .75)
PORT -
532-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
PORTTUBING, (20.00 Feet Bulk) (5-1/2 IN.)
PORT -
632-892024122 TUBING, (20.00 Feet Bulk) (7 IN.)
PORTTUBING, (20.00 Feet Bulk) (7 IN.)
PORT -
732-892024122 TUBING, (20.00 Feet Bulk) (6 IN.)
PORTTUBING, (20.00 Feet Bulk) (6 IN.)
PORT -
822-8245021 CONNECTOR
(SHOWN AS REF.13 ON CYLINDER BLOCK) PORTCONNECTOR
(SHOWN AS REF.13 ON CYLINDER BLOCK) PORT -
932-892024122 TUBING, (20.00 Feet Bulk) (10-1/2 IN.)
PORTTUBING, (20.00 Feet Bulk) (10-1/2 IN.)
PORT -
1021-8348041 CHECK VALVE
PORTCHECK VALVE
PORT -
1132-892024122 TUBING, (20.00 Feet Bulk) (1-3/4 IN.)
PORTTUBING, (20.00 Feet Bulk) (1-3/4 IN.)
PORT -
1221-8282182 CHECK VALVE
PORTCHECK VALVE
PORT -
1332-892024122 TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
PORTTUBING, (20.00 Feet Bulk) (4-1/2 IN.)
PORT -
1432-9912688 TUBING, (36.00 Inches Bulk) (10-1/4 IN.)
PORTTUBING, (36.00 Inches Bulk) (10-1/4 IN.)
PORT -
15827210A9 MANIFOLD ASSEMBLY, Bleed System
STARBOARDMANIFOLD ASSEMBLY, Bleed System
STARBOARD -
1621-426233 CHECK VALVE
STARBOARDCHECK VALVE
STARBOARD -
1722-13035002 FITTING
STARBOARDFITTING
STARBOARD -
1810-92051 SCREW, (10-16 x .75)
STARBOARDSCREW, (10-16 x .75)
STARBOARD -
1932-892024122 TUBING, (20.00 Feet Bulk) (7 IN.)
STARBOARDTUBING, (20.00 Feet Bulk) (7 IN.)
STARBOARD -
2032-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
STARBOARDTUBING, (20.00 Feet Bulk) (5-1/2 IN.)
STARBOARD -
2122-8245021 CONNECTOR
(SHOWN AS REF.13 ON CYLINDER BLOCK) STARBOARDCONNECTOR
(SHOWN AS REF.13 ON CYLINDER BLOCK) STARBOARD -
2221-8348041 CHECK VALVE
STARBOARDCHECK VALVE
STARBOARD -
2332-892024122 TUBING, (20.00 Feet Bulk) (1-3/4 IN.)
STARBOARDTUBING, (20.00 Feet Bulk) (1-3/4 IN.)
STARBOARD -
2421-8282182 CHECK VALVE
STARBOARDCHECK VALVE
STARBOARD -
2532-892024122 TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
STARBOARDTUBING, (20.00 Feet Bulk) (4-1/2 IN.)
STARBOARD -
2632-892024122 TUBING, (20.00 Feet Bulk) (9 IN.)
STARBOARDTUBING, (20.00 Feet Bulk) (9 IN.)
STARBOARD -
2732-9912688 TUBING, (36.00 Inches Bulk) (1-1/4 IN.)TUBING, (36.00 Inches Bulk) (1-1/4 IN.)
-
2822-13033 TEE FITTINGTEE FITTING
-
2922-817518 TEETEE
-
3032-8M0108355 HOSE, (57.00 Inches Bulk) (1-1/2 IN.)HOSE, (57.00 Inches Bulk) (1-1/2 IN.)
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3232-9912688 TUBING, (36.00 Inches Bulk) (13 IN.)TUBING, (36.00 Inches Bulk) (13 IN.)
-
-854198R99 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199A99 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
