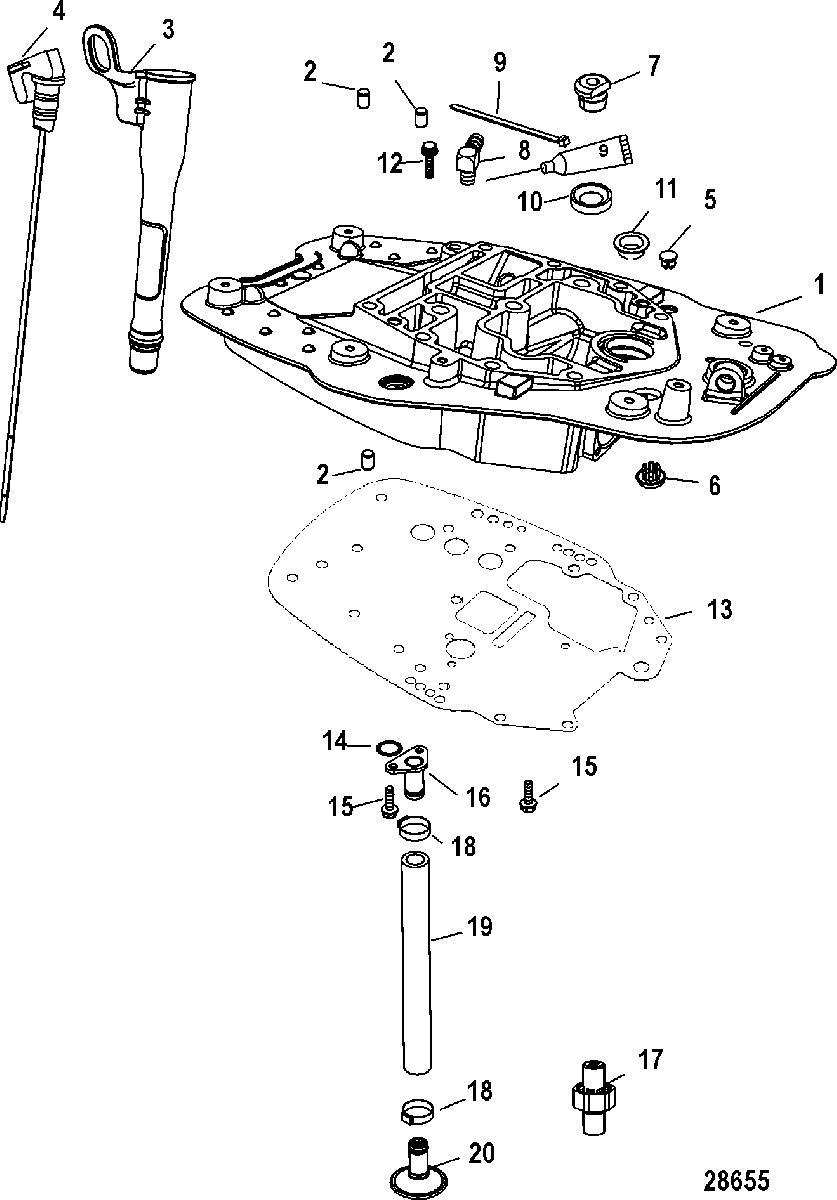

Adaptor Plate для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
1825228T27 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
217-23784 PIN, DowelPIN, Dowel
-
38M0026249 DIPSTICK TUBE ASSEMBLY, PlasticDIPSTICK TUBE ASSEMBLY, Plastic
-
4825990 DIPSTICKDIPSTICK
-
519-822464 PLUGPLUG
-
619-48323 PLUGPLUG
-
725-19564001 GROMMETGROMMET
-
822-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1026-66301 SEAL, OilSEAL, Oil
-
1123-859594 BUSHINGBUSHING
-
1210-4007455 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
1327-892320001 GASKETGASKET
-
1425-845746 O-RINGO-RING
-
1510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
16893765 PLATE, Top Oil PickupPLATE, Top Oil Pickup
-
17881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
1854-855228 CLAMPCLAMP
-
1932-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
20893700 BAFFLE, Oil Pick-upBAFFLE, Oil Pick-up
