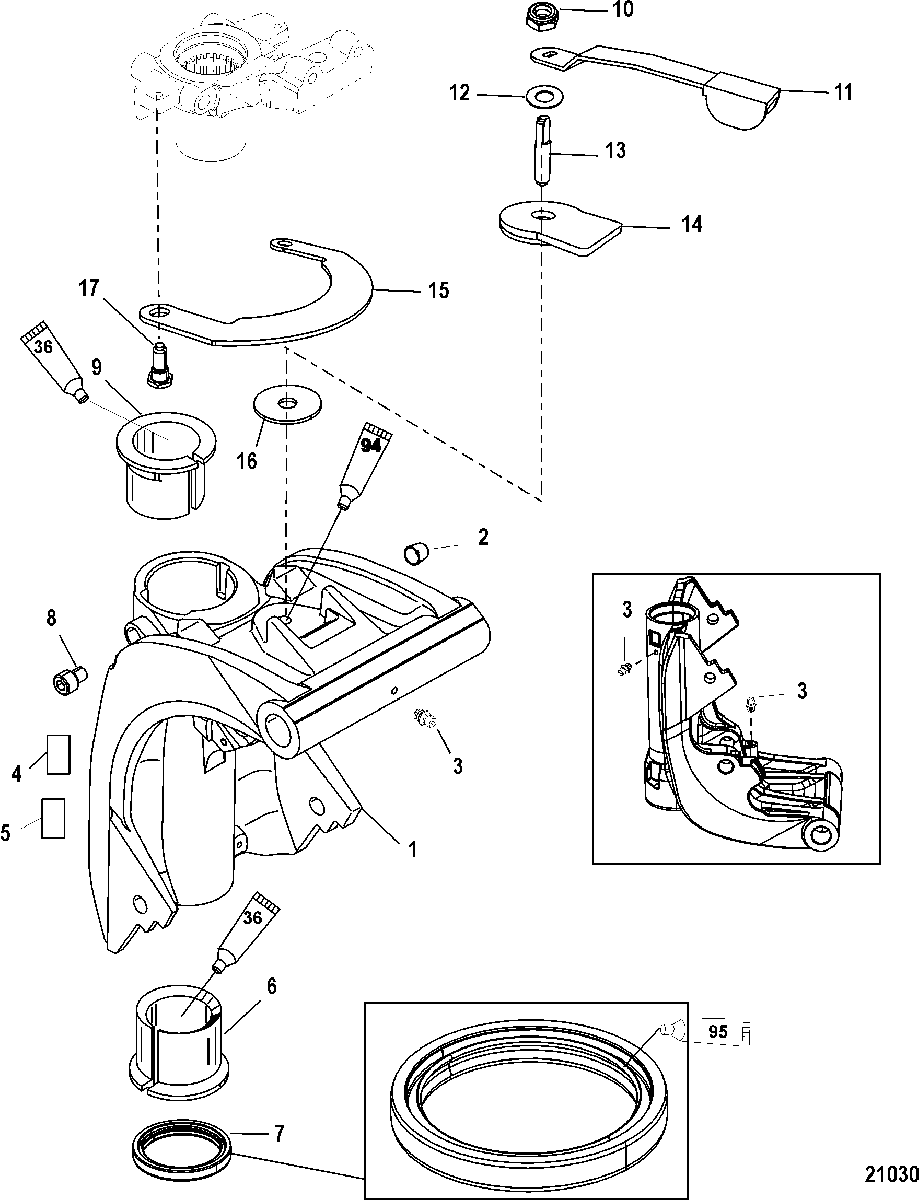

Swivel Bracket для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
11401-850066T01 SWIVEL BRACKETSWIVEL BRACKET
-
223-19606 BEARING, Trim PinBEARING, Trim Pin
-
322-74036 FITTING, GreaseFITTING, Grease
-
437-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
5NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
623-821777 BUSHING, LowerBUSHING, Lower
-
726-822404 SEAL, LowerSEAL, Lower
-
810-4008910 SCREW, (M8 x 10) Stainless SteelSCREW, (M8 x 10) Stainless Steel
-
923-8217711 BUSHING, UpperBUSHING, Upper
-
1011-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
-
11823792 LEVER, Co-PilotLEVER, Co-Pilot
-
1212-29330 WASHERWASHER
-
13821961 ROD, Co-Pilot - ThreadedROD, Co-Pilot - Threaded
-
148M0006845 PLATE/DISC ASSEMBLY, BrakePLATE/DISC ASSEMBLY, Brake
-
158M0007471 PLATE, Swivel HeadPLATE, Swivel Head
-
168165621 DISC, FrictionDISC, Friction
-
1710-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
