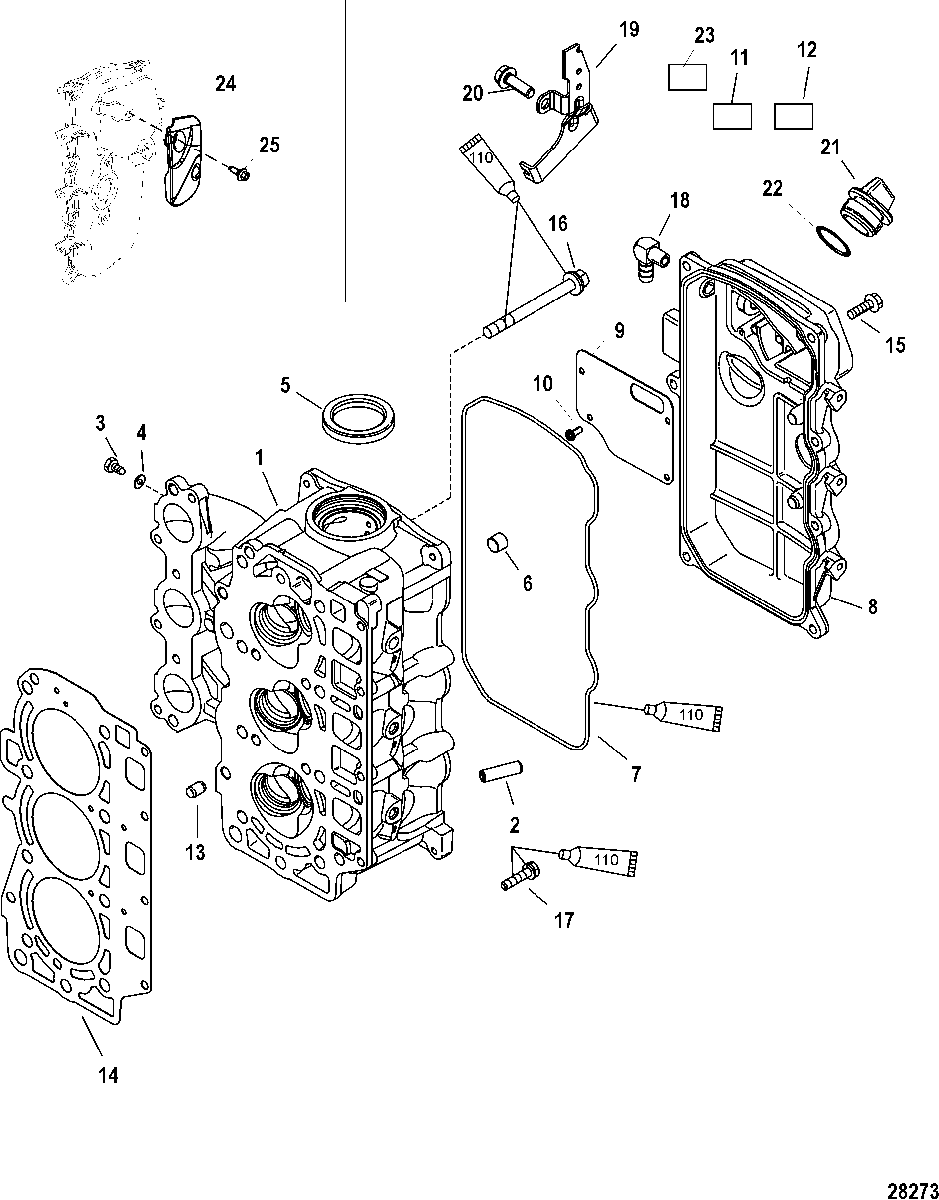

Cylinder Head для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up

№

Артикул

Название
-

893504T02 CYLINDER HEAD ASSEMBLY

CYLINDER HEAD ASSEMBLY

82 900 ₽
1

893504T CYLINDER HEAD

CYLINDER HEAD

37 740 ₽
2

858266 GUIDE

GUIDE

370 ₽
3

10-4000325 SCREW, (M6 x 8)

SCREW, (M6 x 8)

290 ₽
4

12-859768 WASHER

WASHER

270 ₽
5

26-893549 SEAL, Oil

SEAL, Oil

2 720 ₽
6

22-875209 PIPE PLUG

PIPE PLUG

490 ₽
7

25-893898 SEAL

SEAL

900 ₽
8

893693A04 COVER ASSEMBLY

COVER ASSEMBLY

9 630 ₽
9

893711 PLATE, Baffle

PLATE, Baffle

2 500 ₽
10

10-8M0001075 SCREW, (M4)

SCREW, (M4)

260 ₽
11

NSS NOT SOLD SEPARATE, Decal- Servicing Referral

NOT SOLD SEPARATE, Decal- Servicing Referral

0 ₽
12

NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance

NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance

0 ₽
13

17-825010 PIN, Dowel

PIN, Dowel

270 ₽
14

27-8M0118180 GASKET

GASKET

3 250 ₽
15

10-8M4503518 SCREW, (M6 x 20) Stainless Steel

SCREW, (M6 x 20) Stainless Steel

380 ₽
16

10-82503395 SCREW, (M9 x 95)

SCREW, (M9 x 95)

1 180 ₽
17

10-893745025 SCREW, (M6 x 25)

SCREW, (M6 x 25)

230 ₽
18

22-629101 FITTING, Elbow - 90 Degree (.125-27)

FITTING, Elbow - 90 Degree (.125-27)

870 ₽
19

830294T1 BRACKET
Handle

BRACKET
Handle

9 860 ₽
20

10-40011126 SCREW, (M6 x 13) Stainless Steel
Handle

SCREW, (M6 x 13) Stainless Steel
Handle

220 ₽
21

859578A1 PLUG ASSEMBLY, Oil

PLUG ASSEMBLY, Oil

440 ₽
22

25-90196 O-RING, (.921 x .139)

O-RING, (.921 x .139)

350 ₽
23

NSS NOT SOLD SEPARATE, Decal- Horse Power Identification

NOT SOLD SEPARATE, Decal- Horse Power Identification

0 ₽
24

8M0026326 DEFLECTOR, Cowl

DEFLECTOR, Cowl

1 040 ₽
25

10-8M0012661 SCREW

SCREW

1 890 ₽
-

27-825231A02 GASKET SET, Engine

GASKET SET, Engine

31 700 ₽
-

893714T05 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY

231 890 ₽
