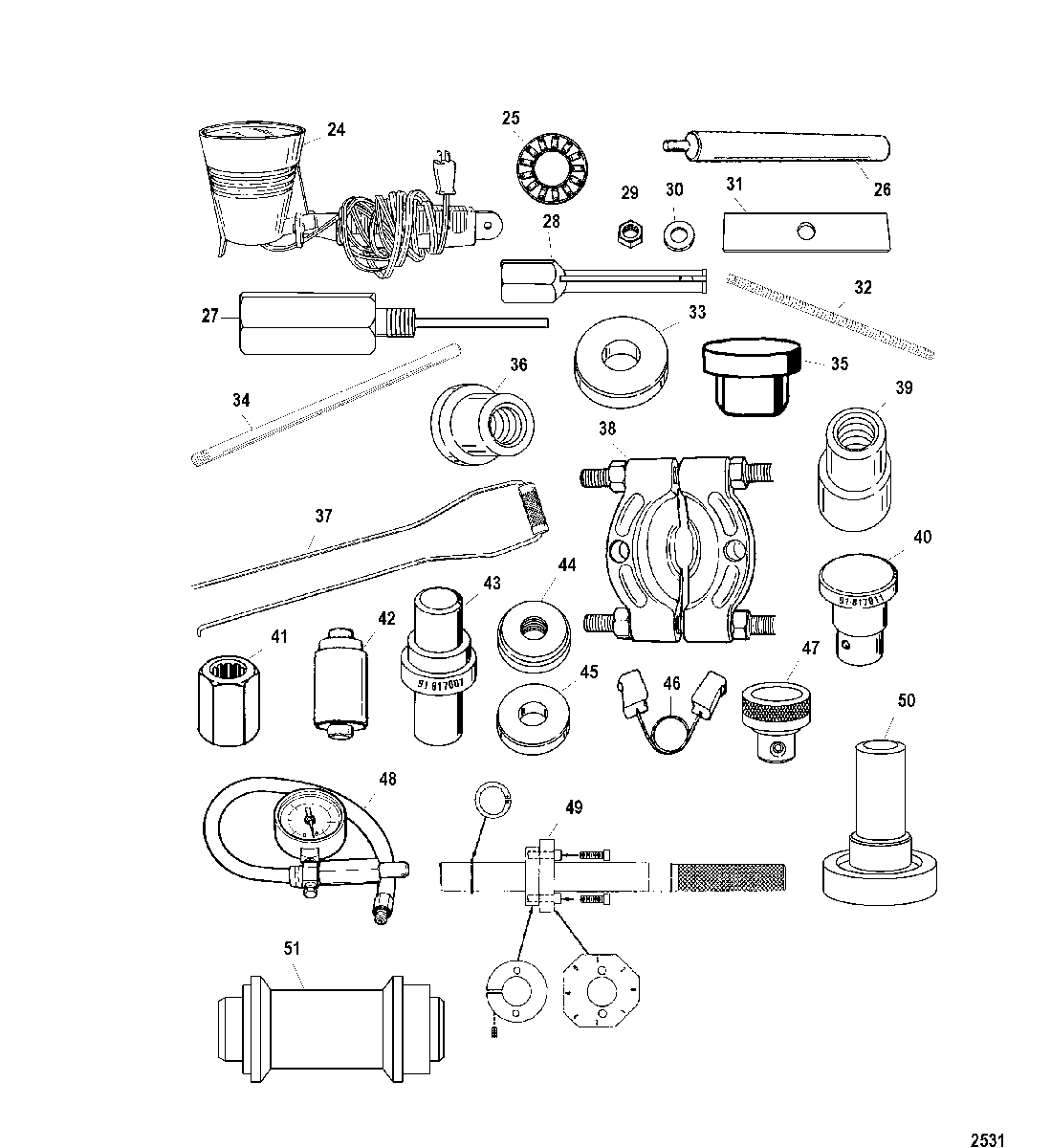

Tools 2 для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
2491-63209 HEAT LAMPHEAT LAMP
-
2531-85560 BEARING, ThrustBEARING, Thrust
-
2691-13779 REMOVER TOOL, BearingREMOVER TOOL, Bearing
-
-91-31229A7 PULLER KIT, BearingPULLER KIT, Bearing
-
27NSS NOT SOLD SEPARATE, Expanding rod (P/N-CG-41-11)NOT SOLD SEPARATE, Expanding rod (P/N-CG-41-11)
-
28NSS NOT SOLD SEPARATE, Collet (P/N-CG-41-14)NOT SOLD SEPARATE, Collet (P/N-CG-41-14)
-
2911-24156 NUT, (.625-18)NUT, (.625-18)
-
3012-34961 WASHERWASHER
-
3191-29310 PLATEPLATE
-
3291-31229 SHAFTSHAFT
-
3391-36571T WRENCH TOOL, Driveshaft BearingWRENCH TOOL, Driveshaft Bearing
-
3491-37323 DRIVER ROD TOOL, Needle BearingsDRIVER ROD TOOL, Needle Bearings
-
3591-15755T MANDRELMANDREL
-
3691-36569T DRIVE HEAD TOOLDRIVE HEAD TOOL
-
3791-27780 PULLERPULLER
-
3891-37241 PULLER PLATEPULLER PLATE
-
3991-37312T DRIVER HEAD TOOLDRIVER HEAD TOOL
-
4091-817011T INSTALLER TOOL, Needle BearingINSTALLER TOOL, Needle Bearing
-
4191-83180M HOLDING TOOL, DriveshaftHOLDING TOOL, Driveshaft
-
4291-825197T INSTALLER TOOL, Oil SealINSTALLER TOOL, Oil Seal
-
4391-817007T INSTALLER TOOL, SealINSTALLER TOOL, Seal
-
4491-825198 MANDRELMANDREL
-
4591-825199 PILOTPILOT
-
4691-825200A1 HOOK TOOL, SpringHOOK TOOL, Spring
-
4791-826872 INSTALLER TOOL, BearingINSTALLER TOOL, Bearing
-
48FT8950 TESTER KITTESTER KIT
-
4991-12349A05 TOOL, Pinion LocatingTOOL, Pinion Locating
-
5091-13945 INSTALLATION TOOL, BearingINSTALLATION TOOL, Bearing
-
5191-13949 DRIVER TOOL, Oil SealDRIVER TOOL, Oil Seal
