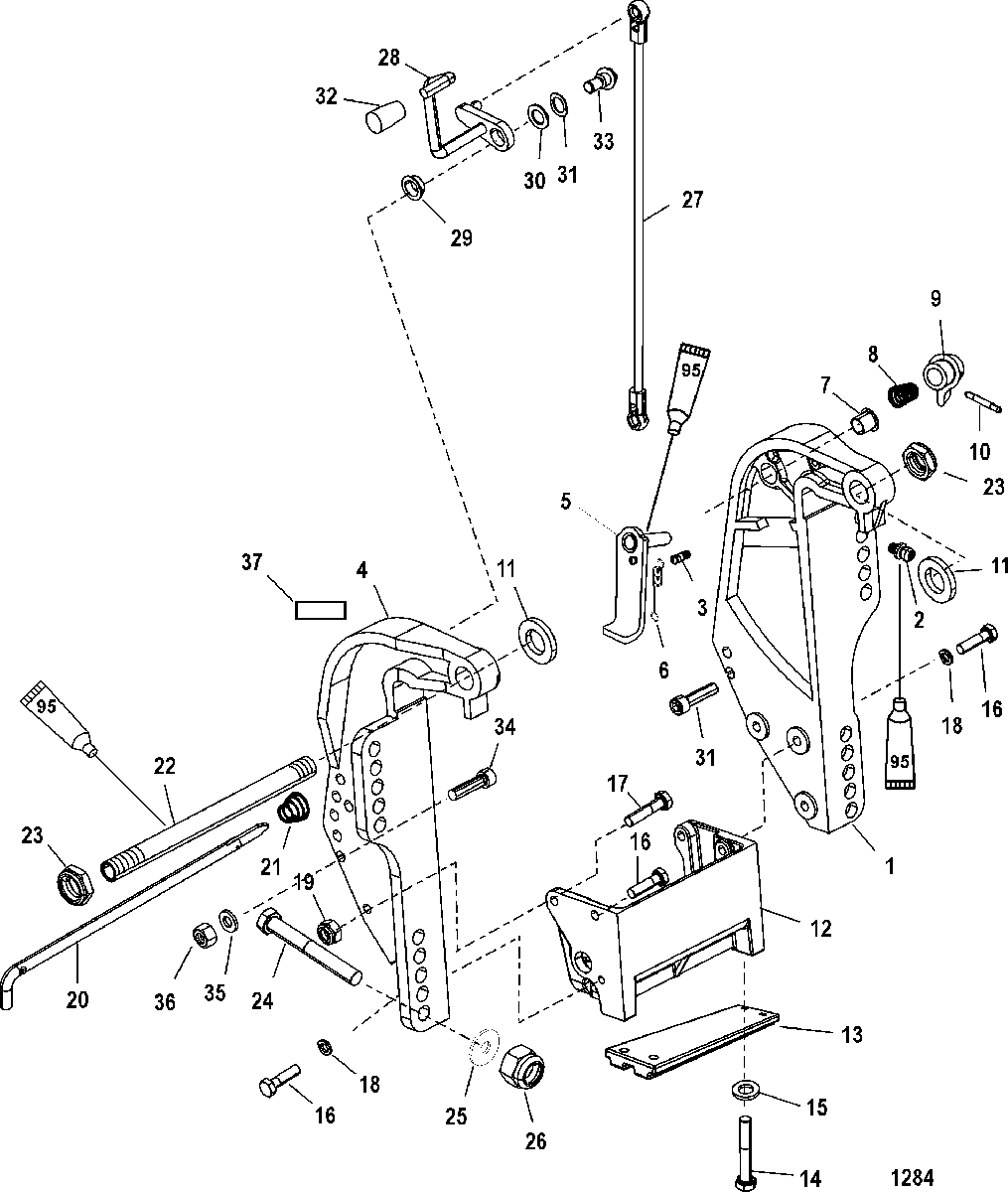

Transom Bracket для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
13418-822866T04 BRACKET, Transom - PortBRACKET, Transom - Port
-
222-98727 FITTING, GreaseFITTING, Grease
-
317-99604 PIN, GroovePIN, Groove
-
43418-822865T05 BRACKET, Transom - StarboardBRACKET, Transom - Starboard
-
5893704T01 LEVER, Tilt LockLEVER, Tilt Lock
-
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
98M0007470 KNOBKNOB
-
1017-8M0021914 PIN , (.125 x 30 mm)PIN , (.125 x 30 mm)
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET KIT, AnchorBRACKET KIT, Anchor
-
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-85594030 SCREW, (M8 x 30)
Included with Anchor Bracket KitSCREW, (M8 x 30)
Included with Anchor Bracket Kit -
1710-8M0000586 SCREW, (M8 x 35)
Included with Anchor Bracket KitSCREW, (M8 x 35)
Included with Anchor Bracket Kit -
1812-843108 WASHER, (.330 x .560 x .060) Stainless Steel
Included with Anchor Bracket KitWASHER, (.330 x .560 x .060) Stainless Steel
Included with Anchor Bracket Kit -
1911-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2017-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
2124-821461 SPRINGSPRING
-
228M0041938 TILT TUBETILT TUBE
-
2311-858869 NUT, (.875-14)NUT, (.875-14)
-
2410-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2512-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2611-82671117 NUT, (.500-20)NUT, (.500-20)
-
278M0084737 LINKLINK
-
2819615A05 LEVER ASSEMBLY, TiltLEVER ASSEMBLY, Tilt
-
2923-812707 BUSHINGBUSHING
-
3012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
3113-99611 WAVE WASHERWAVE WASHER
-
328M0007469 TILT KNOBTILT KNOB
-
3310-19611 SCREW, (.375-16 x .62)SCREW, (.375-16 x .62)
-
3410-4009040 SCREW, (M10 x 40) Stainless SteelSCREW, (M10 x 40) Stainless Steel
-
3512-4002319 WASHERWASHER
-
3611-40140 NUT, (M10)NUT, (M10)
-
3737-830253 DECAL, Tilt LockDECAL, Tilt Lock
