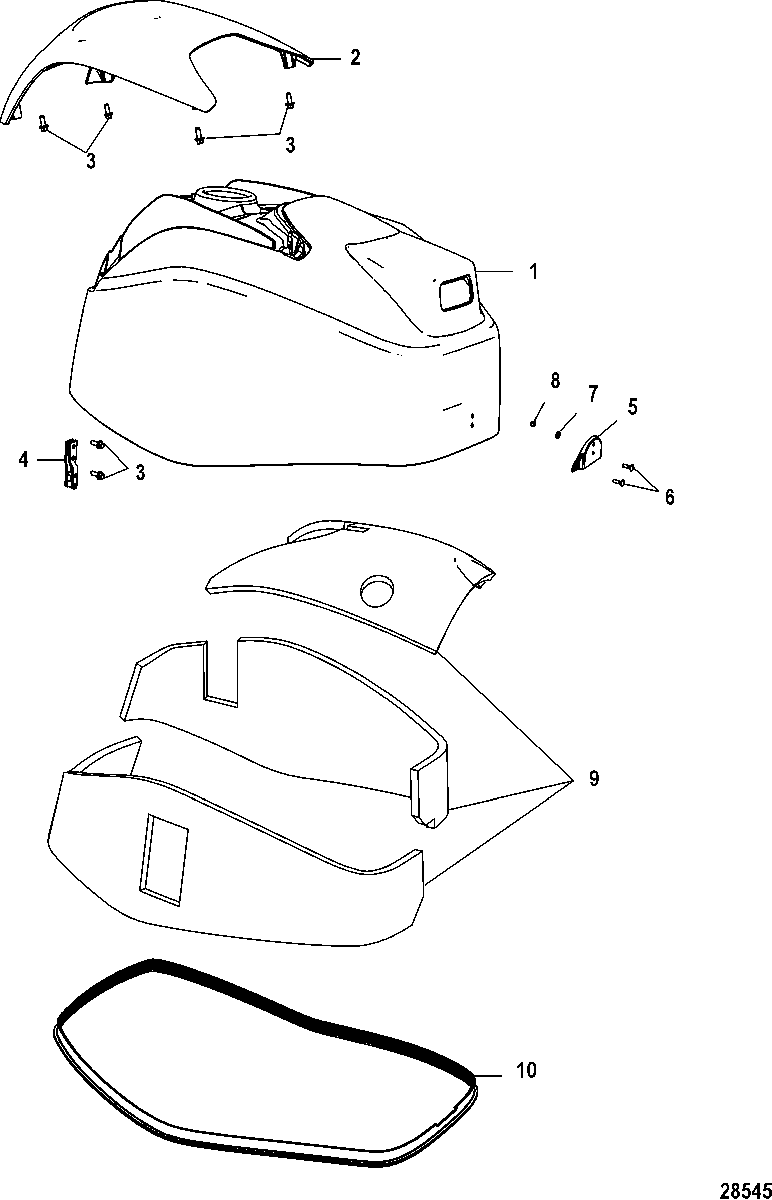

Top Cowl для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
1100-8M0118168 TOP COWL ASSEMBLY, MercuryTOP COWL ASSEMBLY, Mercury
-
1100-8M0118169 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
28M0118170 CAP, Air Dam - MercuryCAP, Air Dam - Mercury
-
28M0118172 CAP, Air Dam - MarinerCAP, Air Dam - Mariner
-
310-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
48M0006055 BRACKETBRACKET
-
5826291T02 BRACKET, Front LatchBRACKET, Front Latch
-
610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
712-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
811-400632 NUTNUT
-
9834786A05 SOUND BLANKET KITSOUND BLANKET KIT
-
108M0109278 SEALSEAL
-
-37-803641A08 DECAL SET, Mercury
SN# 1C193075 & BelowDECAL SET, Mercury
SN# 1C193075 & Below -
-37-896856002 DECAL, 40
SN# 1C193075 & BelowDECAL, 40
SN# 1C193075 & Below -
-37-8M0071110 DECAL SET, Mercury 40hp
SN# 1C193076 & UpDECAL SET, Mercury 40hp
SN# 1C193076 & Up -
-37-8M0063348 DECAL, 40
SN# 1C193076 & UpDECAL, 40
SN# 1C193076 & Up -
-37-8M0063353 DECAL, Bigfoot
SN# 1C193076 & UpDECAL, Bigfoot
SN# 1C193076 & Up -
-37-803643A08 DECAL SET, MarinerDECAL SET, Mariner
-
-37-8M0012388 DECAL, 40DECAL, 40
