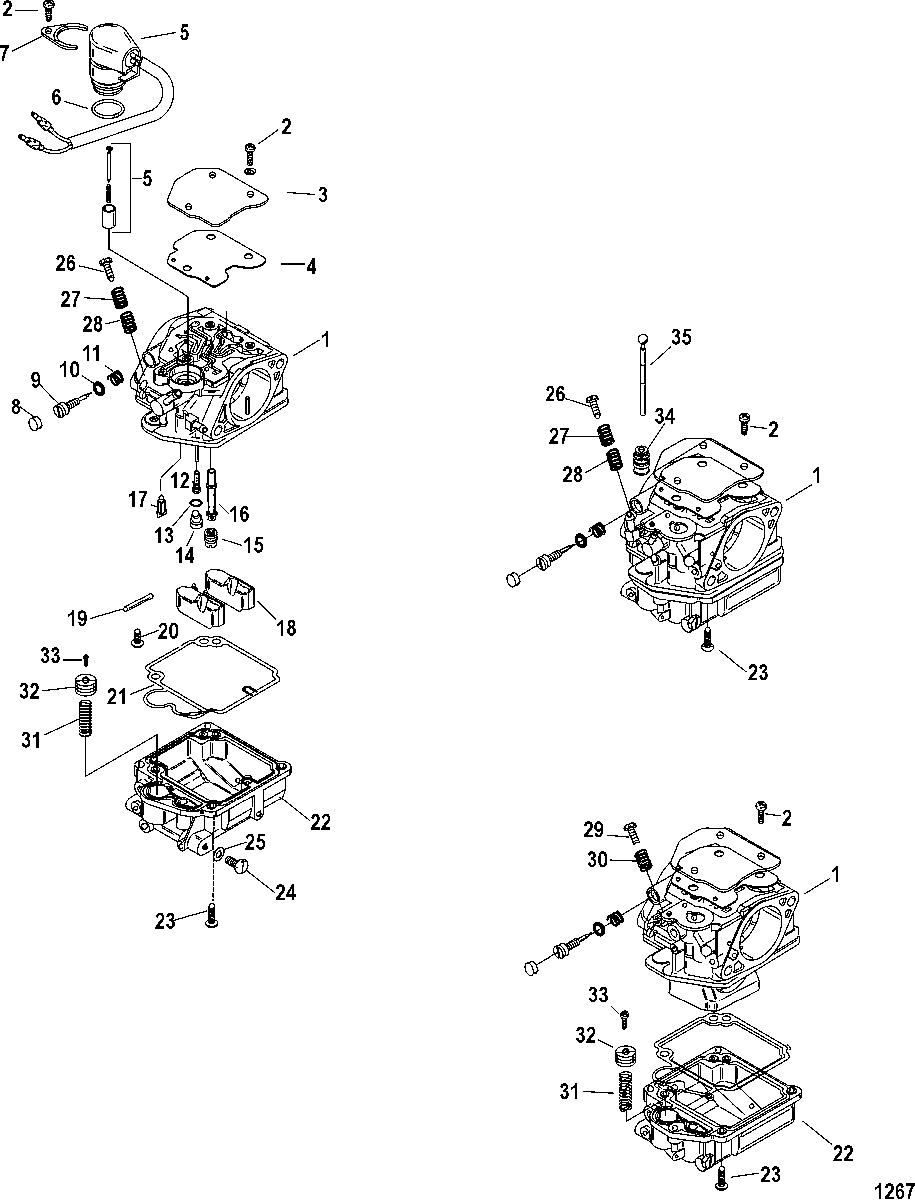

Carburetor для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
13329-883313T2 CARBURETOR
TopCARBURETOR
Top -
13329-883313T3 CARBURETOR
CenterCARBURETOR
Center -
13329-883313T4 CARBURETOR
BottomCARBURETOR
Bottom -
210-854246 SCREWSCREW
-
3854245 PLATEPLATE
-
427-8542572 GASKETGASKET
-
5854254T2 ENRICHENERENRICHENER
-
6NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
7854255 PLATEPLATE
-
819-880814 CAPCAP
-
910-880841 SCREW, AdjustingSCREW, Adjusting
-
1025-880842 O-RINGO-RING
-
1124-880815 SPRINGSPRING
-
1280391242 JET, PilotJET, Pilot
-
1325-880843 O-RINGO-RING
-
1419-880844 PLUGPLUG
-
1580391595 JET, MainJET, Main
-
168039143 MAIN NOZZLEMAIN NOZZLE
-
17854247 VALVE, FloatVALVE, Float
-
188542531 FLOATFLOAT
-
1917-8542581 PIN, FloatPIN, Float
-
2010-880845 SCREWSCREW
-
2127-8542573 GASKETGASKET
-
228039161 FLOAT BOWL
TopFLOAT BOWL
Top -
228039171 FLOAT BOWL
Center/BottomFLOAT BOWL
Center/Bottom -
2310-8542463 SCREWSCREW
-
2410-8542464 SCREW, DrainSCREW, Drain
-
2512-8542591 WASHERWASHER
-
2610-803925 SCREW, Synchronization, Top/CenterSCREW, Synchronization, Top/Center
-
2724-880846 SPRING, Top/CenterSPRING, Top/Center
-
2824-803923 SPRING, Top/CenterSPRING, Top/Center
-
2910-803913 SCREW, BottomSCREW, Bottom
-
3024-854249 SPRING, BottomSPRING, Bottom
-
3124-880847 SPRINGSPRING
-
328542511 PLUNGERPLUNGER
-
3310-880848 SCREWSCREW
-
34NSS NOT SOLD SEPARATE, Rubber BellowsNOT SOLD SEPARATE, Rubber Bellows
-
35880849 PLUNGER RODPLUNGER ROD
-
-8542561 REPAIR KIT, Carburetor
1 Per CarburetorREPAIR KIT, Carburetor
1 Per Carburetor
