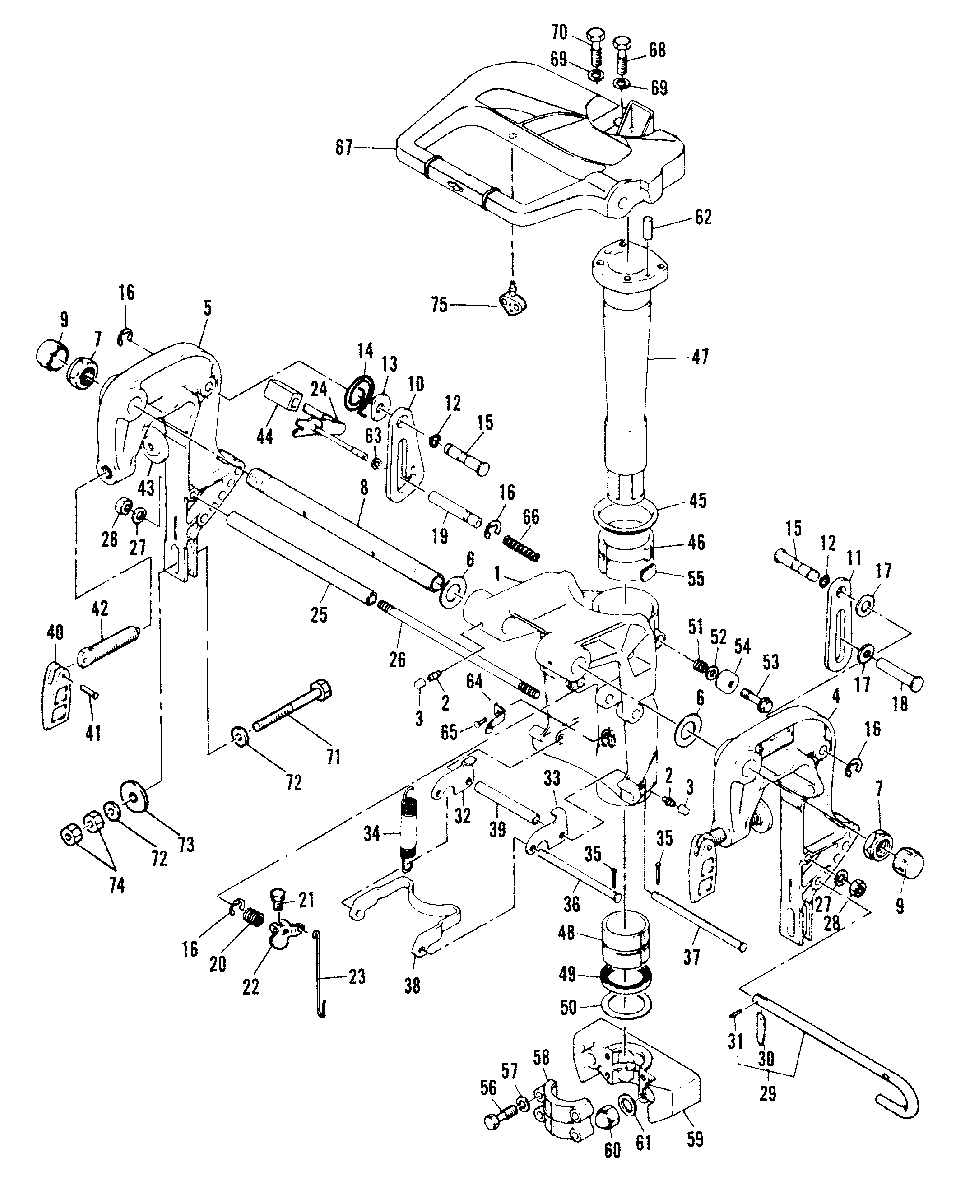

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
11485-6996M BRACKET, SWIVELBRACKET, SWIVEL
-
222-82369M NIPPLE, GREASENIPPLE, GREASE
-
381439M CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
41484-9822M BRACKET, CLAMPBRACKET, CLAMP
-
51484-9823M BRACKET, CLAMPBRACKET, CLAMP
-
612-81836M WASHERWASHER
-
711-879172252 NUT, NYLONNUT, NYLON
-
810-41312M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
9811914M CAPCAP
-
1014278M STOP, TILT (STARBOARD) FOR 75 TILTSTOP, TILT (STARBOARD) FOR 75 TILT
-
1094508M STOP, TILT (STARBOARD) FOR 70 TILT (OPT)STOP, TILT (STARBOARD) FOR 70 TILT (OPT)
-
1184969M STOP, TILT (PORT) FOR 75 TILTSTOP, TILT (PORT) FOR 75 TILT
-
1194510M STOP, TILT (PORT) FOR 70 TILT (OPT)STOP, TILT (PORT) FOR 70 TILT (OPT)
-
1213-83457M WASHER, WAVEWASHER, WAVE
-
1312-83458M WASHERWASHER
-
1424-92616M SPRING, LEVER RETURNSPRING, LEVER RETURN
-
1517-19257M PINPIN
-
1653-83461M SNAP RINGSNAP RING
-
1712-83462M WASHERWASHER
-
1817-95450M PINPIN
-
1983464M SHAFTSHAFT
-
2024-83465M SPRINGSPRING
-
2110-84313M BOLTBOLT
-
2283467M LEVER, TILTLEVER, TILT
-
2383468M ROD, LOCKROD, LOCK
-
2494511M TILT LEVER ASS'YTILT LEVER ASS'Y
-
2519258M SPACERSPACER
-
2616-83472M STUDSTUD
-
2713-82215M WASHER, LOCKWASHER, LOCK
-
2811-82382M NUTNUT
-
2917-814972T TILT PIN ASS'YTILT PIN ASS'Y
-
3084044M STOPPER, TILT LOCKSTOPPER, TILT LOCK
-
3117-82145M PIN, ROLLPIN, ROLL
-
3283905M BRACKET, TILT LOCKBRACKET, TILT LOCK
-
3383906M BRACKET, TILT LOCKBRACKET, TILT LOCK
-
3424-83476M SPRINGSPRING
-
3518-82128M PIN, COTTERPIN, COTTER
-
3617-83477M PINPIN
-
3717-83478M PINPIN
-
3883479M TILT LOCKTILT LOCK
-
3923-83480M SPACERSPACER
-
4011868M HANDLE, TRANSOM CLAMPHANDLE, TRANSOM CLAMP
-
4117-81889M PINPIN
-
4210-83481M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
4312-80638M WASHER, TRANSOM SCREWWASHER, TRANSOM SCREW
-
4481395M COVERCOVER
-
4512-83482M WASHERWASHER
-
4623-83483M BUSHINGBUSHING
-
4783907M SHAFTSHAFT
-
4823-83485M BUSHINGBUSHING
-
4926-83486M OIL SEALOIL SEAL
-
5012-83487M WASHERWASHER
-
5124-83488M SPRINGSPRING
-
5212-82217M WASHERWASHER
-
5310-43106M BOLTBOLT
-
5426-83490M RUBBER, SEALRUBBER, SEAL
-
5580633M PIECE, FRICTIONPIECE, FRICTION
-
5610-85277614 BOLTBOLT
-
5713-82215M WASHERWASHER
-
5883491M HOUSING, LOWER MOUNT RUBBERHOUSING, LOWER MOUNT RUBBER
-
5983492T HOUSING, LOWER MOUNT RUBBERHOUSING, LOWER MOUNT RUBBER
-
6011-82397M NUT, CROWNNUT, CROWN
-
6112-84429M WASHERWASHER
-
6217-82368M PIN, DOWELPIN, DOWEL
-
6312-83493M WASHERWASHER
-
6424-83494M SPRINGSPRING
-
6517-83495M RIVETRIVET
-
6624-83909M SPRINGSPRING
-
678M0057160 BRACKET, STEERINGBRACKET, STEERING
-
6810-95416M BOLTBOLT
-
6913-82215M WASHER, LOCKWASHER, LOCK
-
7010-82442M BOLTBOLT
-
7110-84970M BOLTBOLT
-
7212-82220M WASHERWASHER
-
7312-81812M WASHERWASHER
-
7411-82395M NUTNUT
-
7592619M HOLDER, PINHOLDER, PIN
