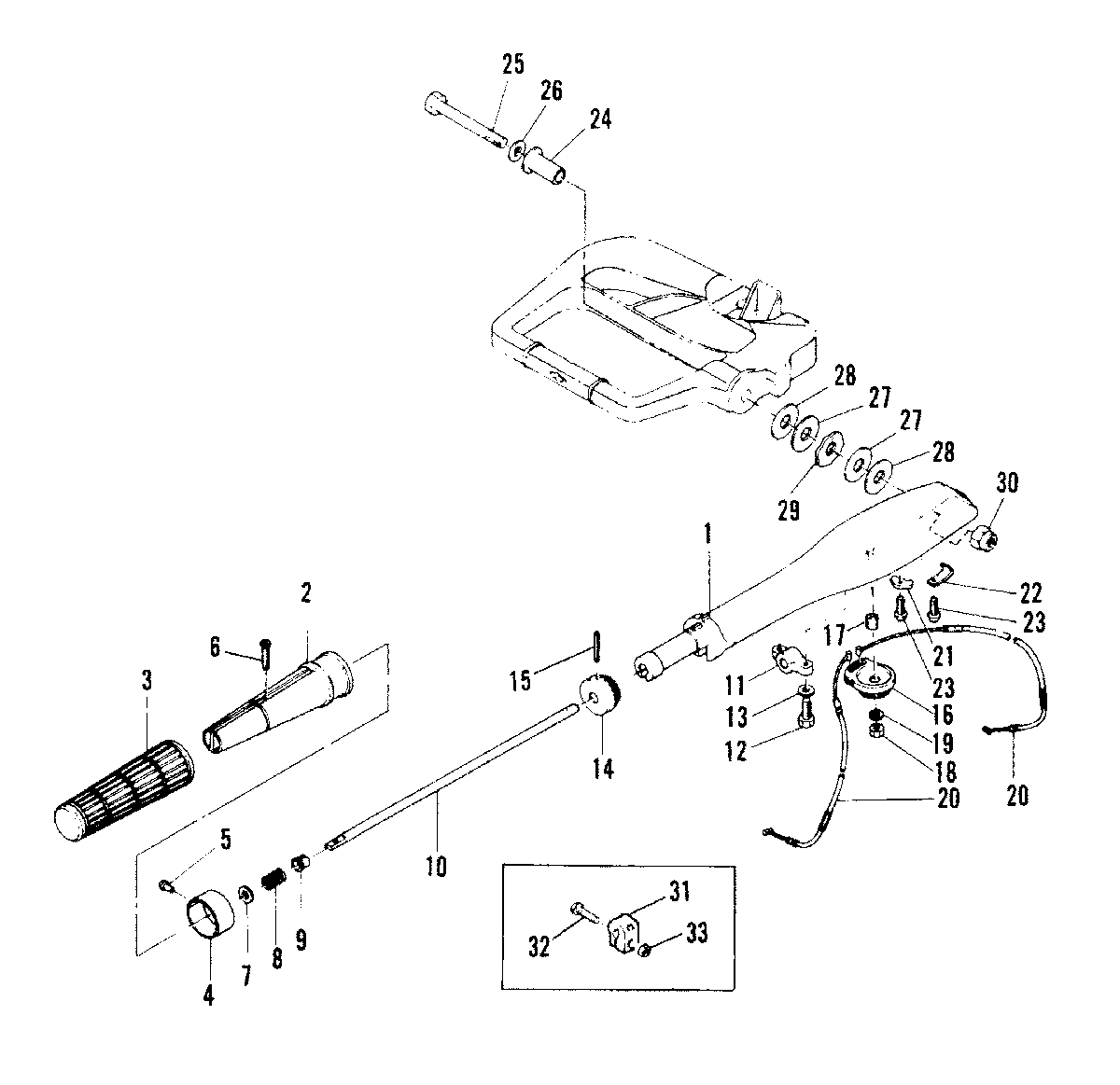

STEERING HANDLE для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
0-193050M STEERING HANDLE ASS'YSTEERING HANDLE ASS'Y
-
184971M HANDLE, STEERINGHANDLE, STEERING
-
281585M GRIP, STEERING HANDLEGRIP, STEERING HANDLE
-
38M0080456 RUBBER, HANDLERUBBER, HANDLE
-
497763M INDICATOR, THROTTLEINDICATOR, THROTTLE
-
517-81907M RIVETRIVET
-
610-811916M SCREWSCREW
-
712-82220M WASHERWASHER
-
824-82095M SPRINGSPRING
-
923-81945M BUSHINGBUSHING
-
1083516M SHAFT, STEERING HANDLESHAFT, STEERING HANDLE
-
1183517M BRACKETBRACKET
-
1210-84058M BOLTBOLT
-
1312-82214M WASHERWASHER
-
1443-80778M GEARGEAR
-
1517-82151M PIN, ROLLPIN, ROLL
-
1643-94512M PINIONPINION
-
1723-94513M BUSHINGBUSHING
-
1811-82389M NUTNUT
-
1913-82212M WASHER, LOCKWASHER, LOCK
-
2083520M THROTTLE WIRE COMPLETETHROTTLE WIRE COMPLETE
-
2183521M HOLDER, WIREHOLDER, WIRE
-
2283522M HOLDER, WIREHOLDER, WIRE
-
2310-83523M SCREWSCREW
-
2423-81950M BUSHINGBUSHING
-
2510-94514M BOLTBOLT
-
2612-83524M WASHERWASHER
-
2712-81853M WASHERWASHER
-
2812-81815M WASHERWASHER
-
2913-81870M WASHER, WAVEWASHER, WAVE
-
3011-81786M NUT, NYLONNUT, NYLON
-
3182895M PIECE, FRICTION
OPTIONAL PARTSPIECE, FRICTION
OPTIONAL PARTS -
3210-84058M BOLT
OPTIONAL PARTSBOLT
OPTIONAL PARTS -
3311-83056M NUT
OPTIONAL PARTSNUT
OPTIONAL PARTS
