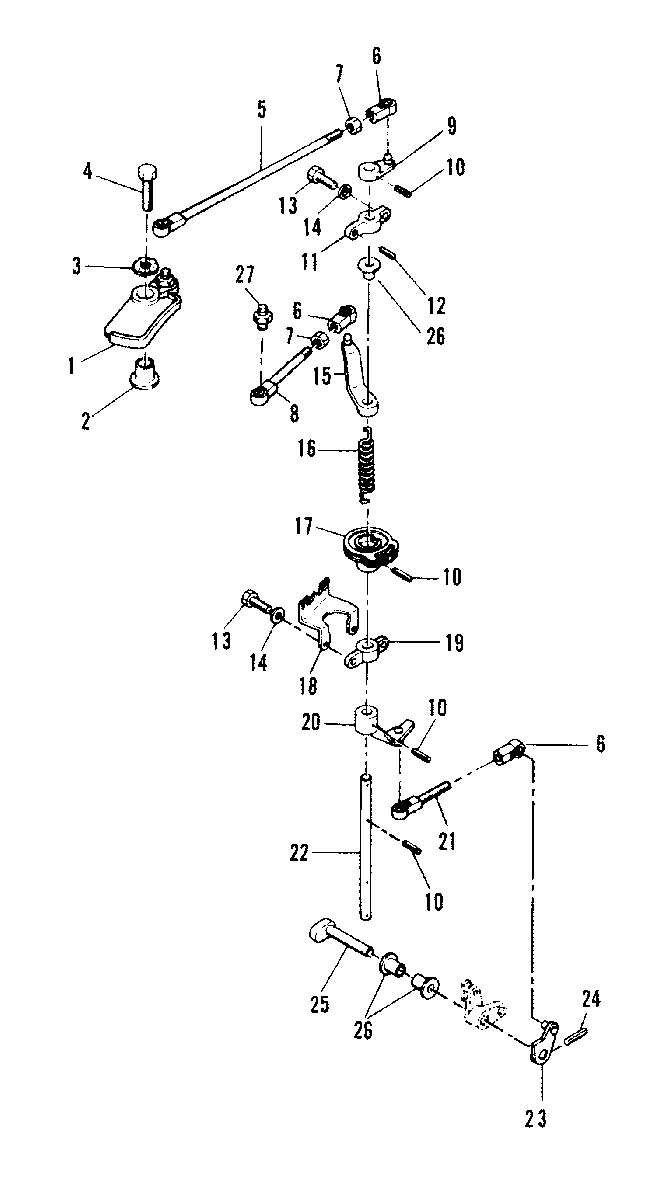

THROTTLE CONTROL для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
194502M CAMCAM
-
223-94503M BUSHINGBUSHING
-
313-81868M WASHERWASHER
-
410-83285M BOLTBOLT
-
583544M LINK, RODLINK, ROD
-
616715M RETAINER, LINK RODRETAINER, LINK ROD
-
711-82388M NUTNUT
-
883918M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
994504M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
1017-82149M PIN, ROLLPIN, ROLL
-
1183547M BRACKETBRACKET
-
1217-82154M PIN, ROLLPIN, ROLL
-
1310-84058M BOLTBOLT
-
1412-82214M WASHERWASHER
-
1583548M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
1624-83549M SPRINGSPRING
-
1783919M PULLEYPULLEY
-
1883551M BRACKETBRACKET
-
1983537M BRACKETBRACKET
-
2083920M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
2183921M RODROD
-
2283555M SHAFT, LINK CONNECTINGSHAFT, LINK CONNECTING
-
2383526M LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
2417-82158M PIN, ROLLPIN, ROLL
-
2583527T SHAFT, THROTTLE CONTROLSHAFT, THROTTLE CONTROL
-
2623-81946M BUSHINGBUSHING
-
2784305M LINK JOINTLINK JOINT
Все узлы модели:
- CARBURETOR
- CLAMP AND SWIVEL BRACKET/REVERSE LOCK
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- DRIVESHAFT HOUSING
- ELECTRIC START
- ELECTRIC START MOTOR
- ELECTRIC START(CONT)
- FLYWHEEL MAGNETO
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL TANK (ORIGINAL EQUIPMENT) 24 LITRE (6.3 GALLONS)
- FUEL TANK (REPLACEMENT OR ADDITIONAL) 22.7 LITRE (6.0 GALLON
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING HANDLE
- • THROTTLE CONTROL
