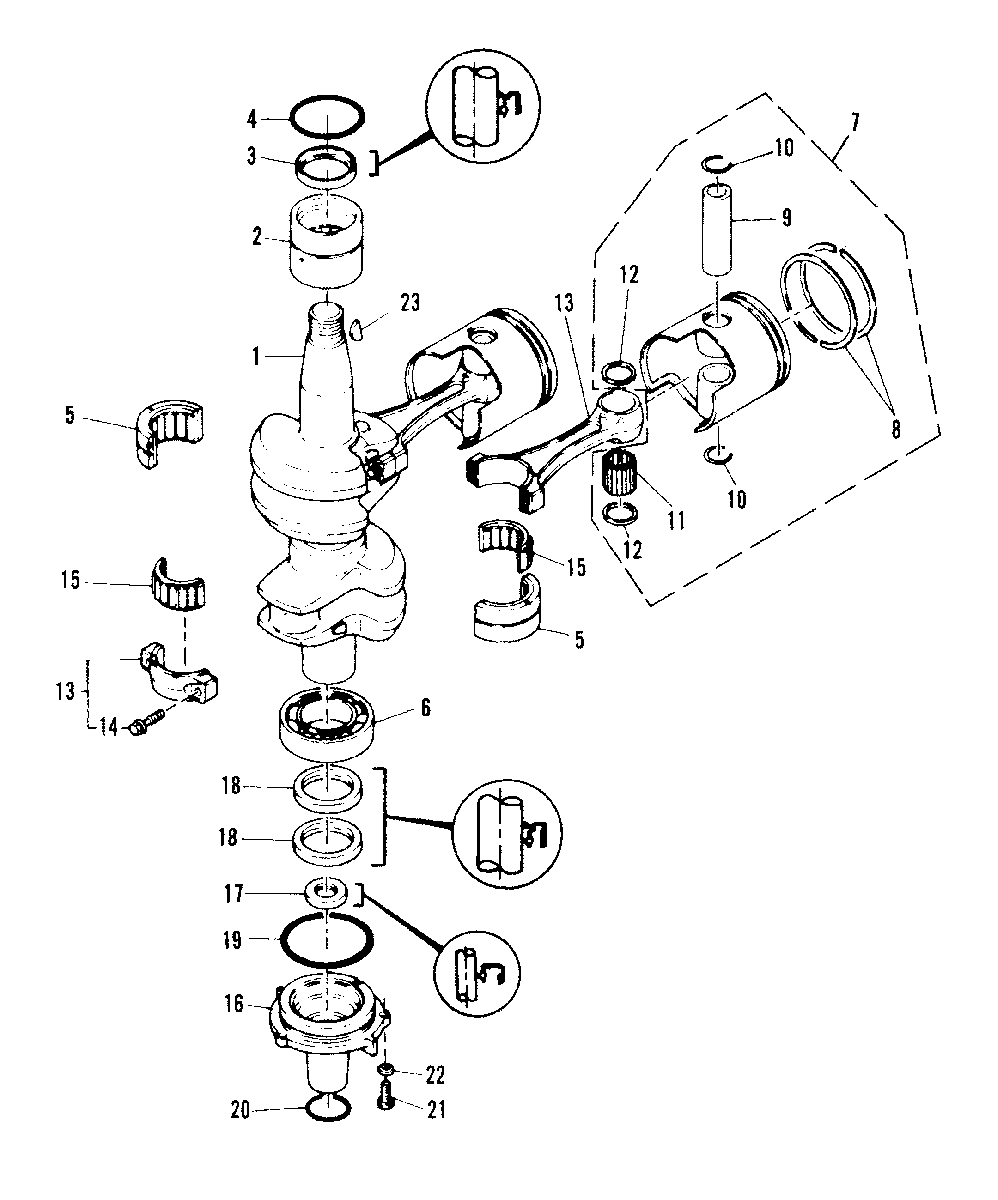

CRANKSHAFT AND PISTON для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
1463-6984M CRANKSHAFTCRANKSHAFT
-
231-83341T BEARING, NEEDLEBEARING, NEEDLE
-
326-82249M OIL SEALOIL SEAL
-
425-82276M O-RINGO-RING
-
531-97837T BEARING, NEEDLEBEARING, NEEDLE
-
630-814560T BEARINGBEARING
-
7761-8015M PISTON ASS'Y (STANDARD)PISTON ASS'Y (STANDARD)
-
7761-8016M PISTON ASS'Y (1ST OVER SIZE 75.25 MM)PISTON ASS'Y (1ST OVER SIZE 75.25 MM)
-
7761-8017M PISTON ASS'Y (2ND OVER SIZE 75.50 MM)PISTON ASS'Y (2ND OVER SIZE 75.50 MM)
-
839-83896T PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
839-83897T PISTON RING SET (1ST OVER SIZE 75.25 MM)PISTON RING SET (1ST OVER SIZE 75.25 MM)
-
839-83898T PISTON RING SET (2ND OVER SIZE 75.50 MM)PISTON RING SET (2ND OVER SIZE 75.50 MM)
-
941-83345T PIN, PISTONPIN, PISTON
-
1053-81264M CLIP, PISTON PINCLIP, PISTON PIN
-
1129-82353M BEARING, NEEDLEBEARING, NEEDLE
-
1212-81831M WASHERWASHER
-
13629-8813M CONNECTING ROD ASS'YCONNECTING ROD ASS'Y
-
1410-81715M BOLTBOLT
-
1531-97710M BEARING, NEEDLEBEARING, NEEDLE
-
1694484M HOUSING, OIL SEALHOUSING, OIL SEAL
-
1726-83347M OIL SEALOIL SEAL
-
1826-82248M OIL SEALOIL SEAL
-
1925-82286M O-RINGO-RING
-
2025-83348M O-RINGO-RING
-
2110-826957M BOLTBOLT
-
2212-82214M WASHERWASHER
-
2328-81915M KEY, FLYWHEELKEY, FLYWHEEL
