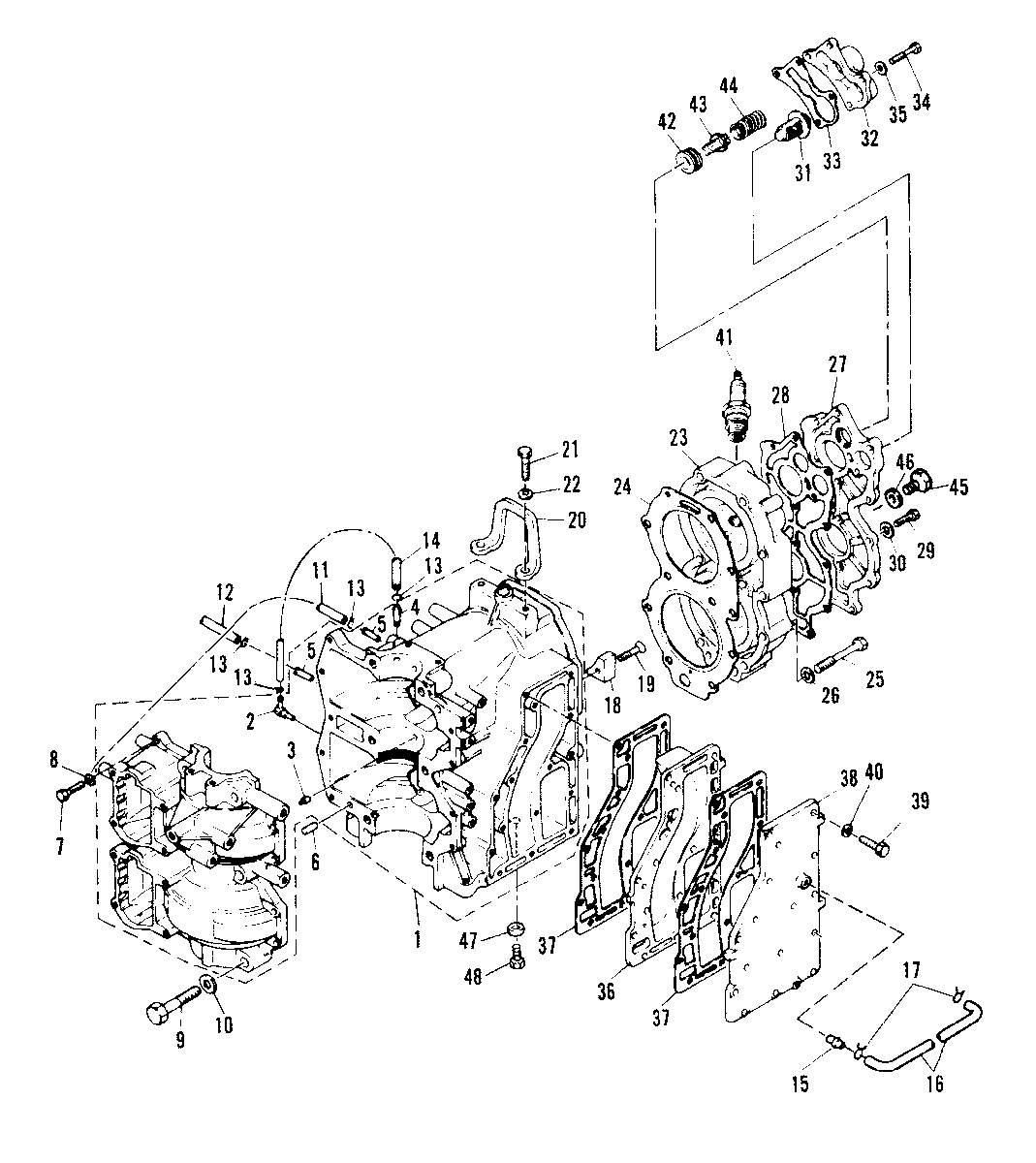

CRANKCASE AND CYLINDER HEAD для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
1870-7989M CRANKCASE ASS'YCRANKCASE ASS'Y
-
221-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
317-81258M PIN, DOWELPIN, DOWEL
-
422-80122M FITTING, DRAINFITTING, DRAIN
-
521-83329M FITTING, DRAINFITTING, DRAIN
-
617-82368M PIN, DOWELPIN, DOWEL
-
710-82405M BOLTBOLT
-
812-81792M WASHERWASHER
-
910-83327M BOLTBOLT
-
1012-81807M WASHERWASHER
-
1132-811045M HOSEHOSE
-
1232-811045M HOSEHOSE
-
1354-82046M CLAMPCLAMP
-
1432-83328M HOSEHOSE
-
1522-94716M FITTING, WATERFITTING, WATER
-
1632-94479M HOSEHOSE
-
1754-82047M CLAMPCLAMP
-
1883330M ANODEANODE
-
1910-82168M SCREWSCREW
-
20814553M BRACKET, ENGINEBRACKET, ENGINE
-
2110-82439M BOLTBOLT
-
2213-82215M WASHER, LOCKWASHER, LOCK
-
23968-6983M HEAD, CYLINDERHEAD, CYLINDER
-
2427-95414 M-27-83332MM-27-83332M
-
2510-82408M BOLTBOLT
-
2612-80564M WASHERWASHER
-
2794480M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
2827-83334M GASKET, HEAD COVERGASKET, HEAD COVER
-
2910-84058M BOLTBOLT
-
3012-82214M WASHERWASHER
-
3199080M THERMOSTATTHERMOSTAT
-
3219255M COVER, THERMOSTATCOVER, THERMOSTAT
-
3327-83336M GASKET, THERMOSTATGASKET, THERMOSTAT
-
3410-83285M BOLTBOLT
-
3512-82214M WASHERWASHER
-
3697707M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3727-83338 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
3897708M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
3910-82405M BOLTBOLT
-
4012-82214M WASHERWASHER
-
4133-8M0114741 SPARK PLUG (B-8HS) NGKSPARK PLUG (B-8HS) NGK
-
4225-82067M GROMMETGROMMET
-
4381267M VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
4424-83340M SPRINGSPRING
-
4522-81926M PLUGPLUG
-
4627-81990M GASKETGASKET
-
4797-83394M ANODEANODE
-
4810-826957M BOLTBOLT
-
4894482M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
REPLACEMENT PARTSPOWERHEAD ASS'Y, COMPLETE (SEE NOTE)
REPLACEMENT PARTS -
4827-94483M GASKET SET, POWERHEAD
REPLACEMENT PARTS FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE: WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER HEAD, PISTONS, CRANKSHAFT, CONNECTING RODS, BEARINGS, ETC. - ORDER POWERHEAD ASSEMBLY (M-94482M).GASKET SET, POWERHEAD
REPLACEMENT PARTS FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE: WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER HEAD, PISTONS, CRANKSHAFT, CONNECTING RODS, BEARINGS, ETC. - ORDER POWERHEAD ASSEMBLY (M-94482M).
