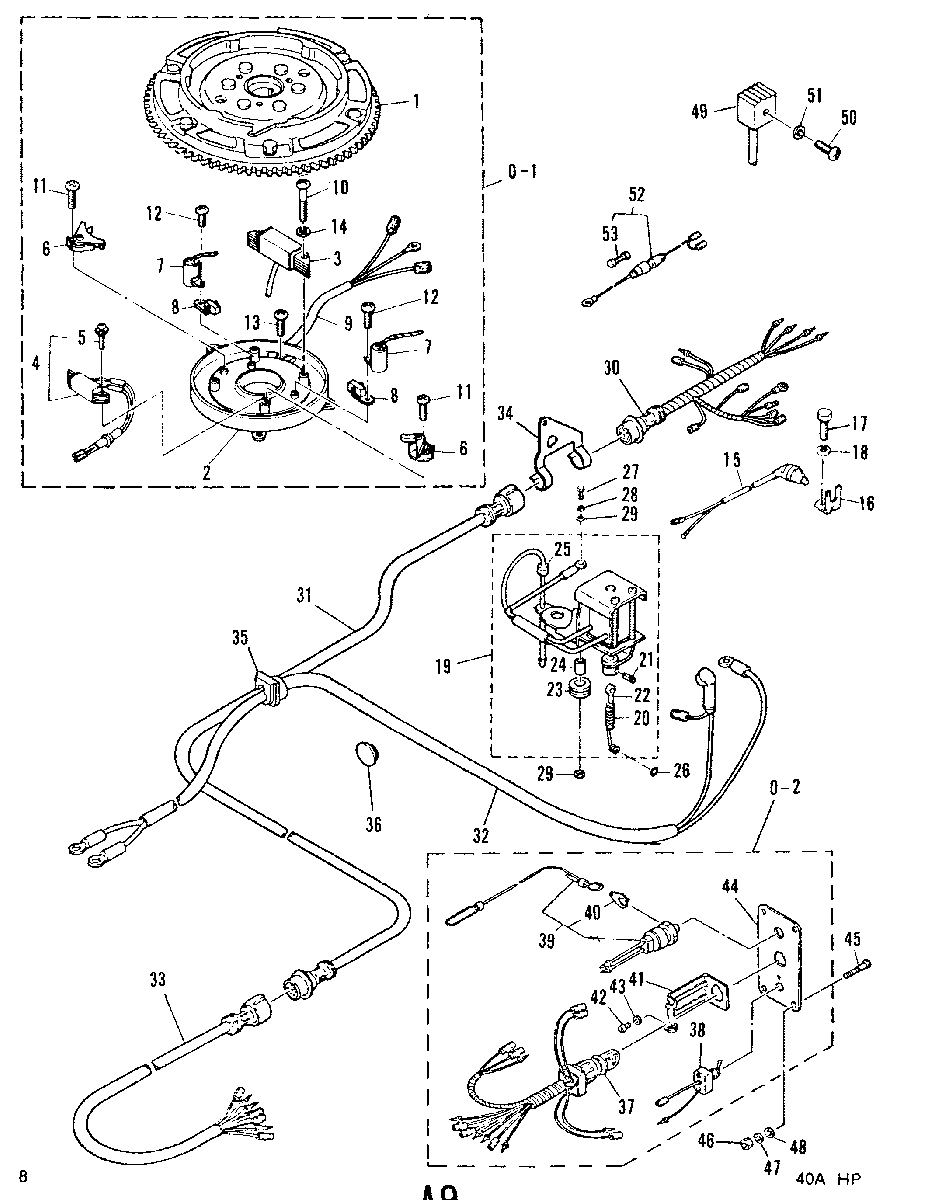

ELECTRIC START для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
0-1253-8242M FLYWHEEL MAGNETO ASS'Y (ELECTRIC START)FLYWHEEL MAGNETO ASS'Y (ELECTRIC START)
-
1253-8243M FLYWHEEL ASS'YFLYWHEEL ASS'Y
-
283559M BASE, MAGNETOBASE, MAGNETO
-
391624M COIL, IGNITIONCOIL, IGNITION
-
491625M COIL, LIGHTINGCOIL, LIGHTING
-
510-82522M SCREW WITH WASHERSCREW WITH WASHER
-
691626M CONTACT BREAKERCONTACT BREAKER
-
783562M CONDENSERCONDENSER
-
880003M LUBRICATORLUBRICATOR
-
984-91627M LEAD WIRELEAD WIRE
-
1010-83108M SCREWSCREW
-
1110-80001M SCREWSCREW
-
1210-80001M SCREWSCREW
-
1310-83565M SCREWSCREW
-
1413-82186M WASHER, LOCKWASHER, LOCK
-
1587-97684M NEUTRAL START SWITCHNEUTRAL START SWITCH
-
1683634M BRACKETBRACKET
-
1710-826957M BOLTBOLT
-
1813-82212M WASHER, LOCKWASHER, LOCK
-
1993118M SOLENOID COILSOLENOID COIL
-
2084-83637M WIRE, SPOOLWIRE, SPOOL
-
2117-82145M PIN, ROLLPIN, ROLL
-
2284411M HOOK, WIRE PULLHOOK, WIRE PULL
-
2325-83638M GROMMETGROMMET
-
2423-83639M COLLARCOLLAR
-
2525-80726M GROMMETGROMMET
-
2625-82258M O-RINGO-RING
-
2710-82419M BOLTBOLT
-
2813-82186M WASHER, LOCKWASHER, LOCK
-
2912-83640M WASHERWASHER
-
3084-91631M WIRE HARNESS ASS'YWIRE HARNESS ASS'Y
-
3184960M WIRE HARNESS, EXTENSIONWIRE HARNESS, EXTENSION
-
3284-98912M WIRE HARNESSWIRE HARNESS
-
3384-84711M WIRE HARNESS, EXTENSIONWIRE HARNESS, EXTENSION
-
3495411M CLAMPCLAMP
-
3525-94476M GROMMETGROMMET
-
3682066M GROMMETGROMMET
