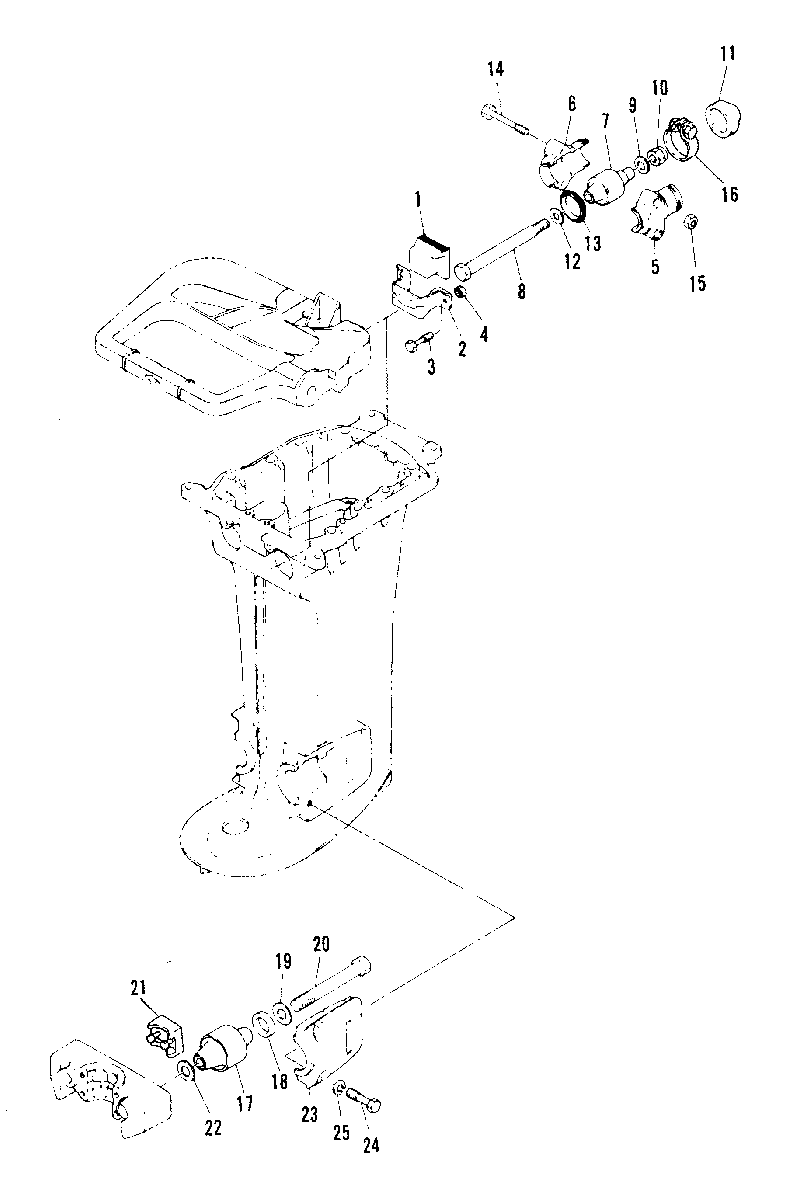

MOUNTING SYSTEM для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A311371 AND UP (E)
-
№АртикулНазвание
-
183496M DAMPER, UPPER MOUNT RUBBERDAMPER, UPPER MOUNT RUBBER
-
283497M BRACKETBRACKET
-
310-82405M BOLTBOLT
-
411-82389M NUTNUT
-
583498M COVER, UPPER MOUNT RUBBERCOVER, UPPER MOUNT RUBBER
-
683499M COVER, UPPER MOUNT RUBBERCOVER, UPPER MOUNT RUBBER
-
78M0121495 MOUNT RUBBER, UPPER SIDEMOUNT RUBBER, UPPER SIDE
-
810-83501M BOLTBOLT
-
912-83911M WASHERWASHER
-
1011-84295M NUT, NYLONNUT, NYLON
-
1183912M CAPCAP
-
1212-83504M WASHERWASHER
-
1325-83505M SEAL, RUBBERSEAL, RUBBER
-
1410-83506M BOLTBOLT
-
1511-82382M NUTNUT
-
1654-83507M HOSE CLAMP ASS'YHOSE CLAMP ASS'Y
-
178M0050006 MOUNT RUBBER, LOWER SIDEMOUNT RUBBER, LOWER SIDE
-
1812-81860M WASHERWASHER
-
1912-83915M WASHERWASHER
-
2010-83510M BOLTBOLT
-
2183511M DAMPER, LOWER MOUNT RUBBERDAMPER, LOWER MOUNT RUBBER
-
2212-84429M WASHERWASHER
-
2383512M COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2410-95416M BOLTBOLT
-
2513-82215M WASHERWASHER
