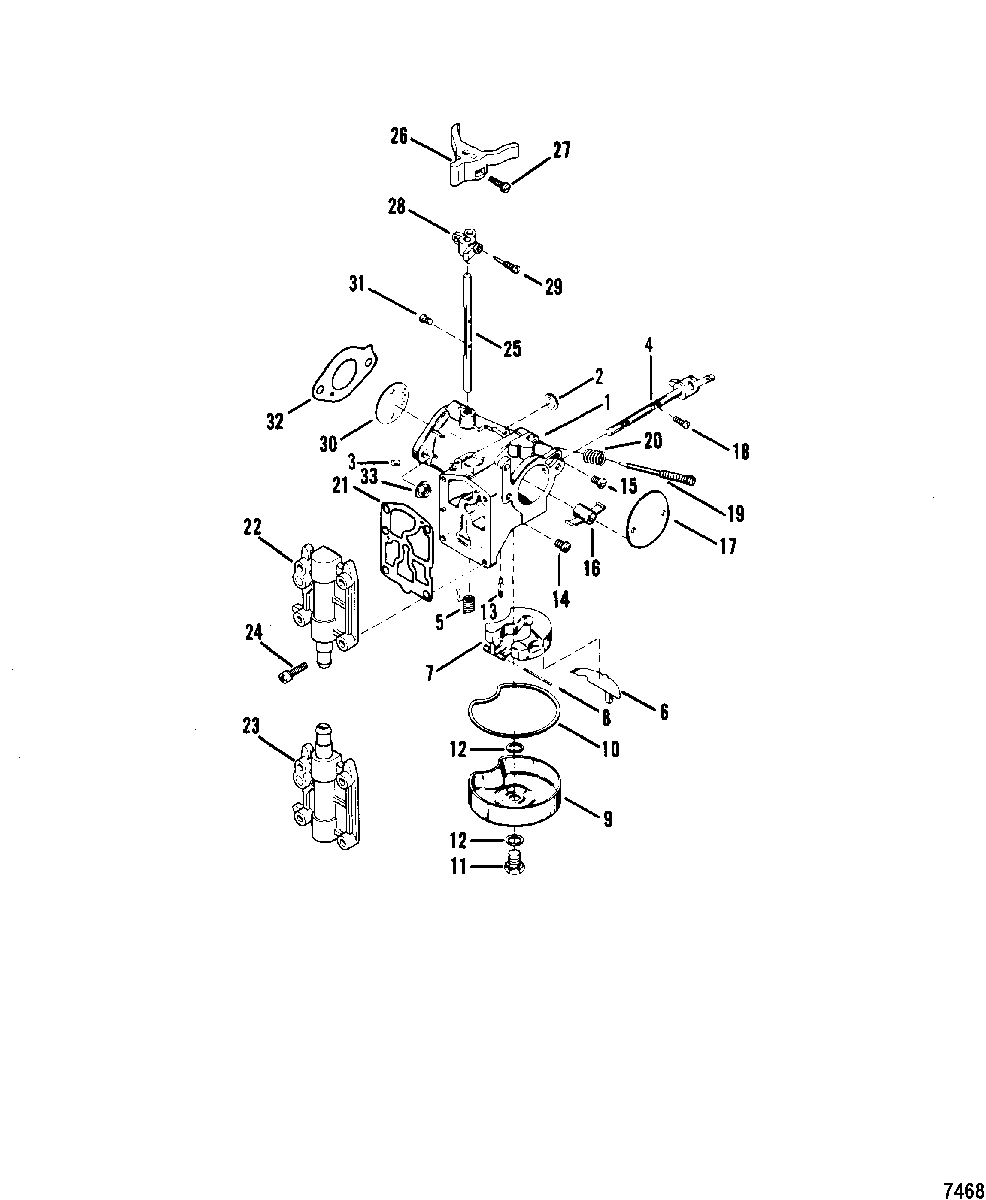

Carburetor Assembly для Mariner - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
11367-6517A63 CARBURETOR ASSEMBLY
(Upper)CARBURETOR ASSEMBLY
(Upper) -
11367-6517A64 CARBURETOR ASSEMBLY
(Lower)CARBURETOR ASSEMBLY
(Lower) -
2NSS NOT SOLD SEPARATE, Large Body ChannelNOT SOLD SEPARATE, Large Body Channel
-
3NSS NOT SOLD SEPARATE, Body ChannelNOT SOLD SEPARATE, Body Channel
-
41395-9296A1 SHAFT ASSEMBLY, ChokeSHAFT ASSEMBLY, Choke
-
5NSS NOT SOLD SEPARATE, Return-Throttle ShaftNOT SOLD SEPARATE, Return-Throttle Shaft
-
6814483 BAFFLE, Fuel BowlBAFFLE, Fuel Bowl
-
71395-9293 FLOATFLOAT
-
8NSS NOT SOLD SEPARATE, Float RetainingNOT SOLD SEPARATE, Float Retaining
-
91399-5127 BOWL, FuelBOWL, Fuel
-
10NSS NOT SOLD SEPARATE, Fuel BowlNOT SOLD SEPARATE, Fuel Bowl
-
111395-9652 SCREW, Fuel Bowl to CarburetorSCREW, Fuel Bowl to Carburetor
-
12NSS NOT SOLD SEPARATE, Fuel Bowl ScrewNOT SOLD SEPARATE, Fuel Bowl Screw
-
131395-9022 NEEDLE AND SPRING, InletNEEDLE AND SPRING, Inlet
-
141399-1457 JET, Main Fuel (.057)JET, Main Fuel (.057)
-
151395-7335 JET, (.098), Economizer (.098)JET, (.098), Economizer (.098)
-
1664677 VENTURIVENTURI
-
171399-8665 SHUTTER, ChokeSHUTTER, Choke
-
18NSS NOT SOLD SEPARATE, Choke Shutter to Choke ShaftNOT SOLD SEPARATE, Choke Shutter to Choke Shaft
-
19NSS NOT SOLD SEPARATE, Idle MixtureNOT SOLD SEPARATE, Idle Mixture
-
20NSS NOT SOLD SEPARATE, Idle Mixture ScrewNOT SOLD SEPARATE, Idle Mixture Screw
-
21NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221395-9653 COVER, Plate (Upper Carburetor)COVER, Plate (Upper Carburetor)
-
231395-9654 COVER, Plate (Lower Carburetor)COVER, Plate (Lower Carburetor)
-
241395-808612 SCREW, Strainer Body to CarburetorSCREW, Strainer Body to Carburetor
-
251395-9020 SHAFT, Throttle
(Upper Carburetor)SHAFT, Throttle
(Upper Carburetor) -
251395-9656 SHAFT, Throttle
(Lower Carburetor)SHAFT, Throttle
(Lower Carburetor) -
2692880 LEVER, Throttle (Upper Carburetor)LEVER, Throttle (Upper Carburetor)
-
271395-6027 SCREW, Throttle Lever (Upper Carburetor)SCREW, Throttle Lever (Upper Carburetor)
-
288146791 LEVER, Throttle (Lower Carburetor)LEVER, Throttle (Lower Carburetor)
-
291395-6027 SCREW, Throttle Lever (Lower Carburetor)SCREW, Throttle Lever (Lower Carburetor)
-
301395-9649 SHUTTER, ThrottleSHUTTER, Throttle
-
31NSS NOT SOLD SEPARATE, Throttle Shutter to Throttle ShaftNOT SOLD SEPARATE, Throttle Shutter to Throttle Shaft
-
3227-757911 GASKET, Carburetor FlangeGASKET, Carburetor Flange
-
3311-64809 NUT, Carburetor Mounting StudNUT, Carburetor Mounting Stud
-
--1395-9650 REPAIR KITREPAIR KIT
-
--1395-9651 GASKET SETGASKET SET
