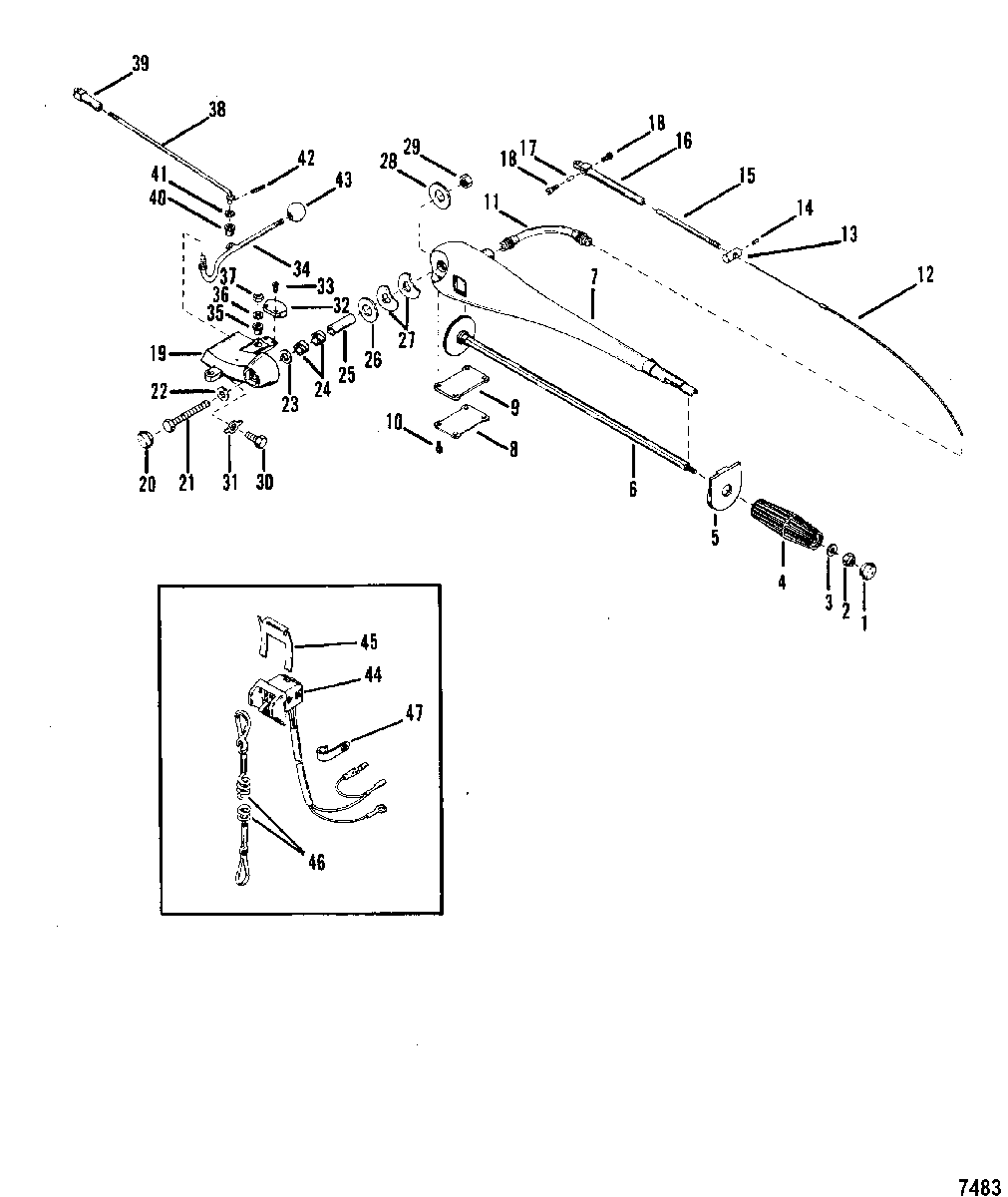

Steering Handle Assembly для Mariner - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
148416T CAP, Steering Handle GripCAP, Steering Handle Grip
-
211-826709109 NUT, (.250-28), Steering Handle ArmNUT, (.250-28), Steering Handle Arm
-
312-69056 WASHER, (.255 x .625 x .0312), Steering Handle ArmWASHER, (.255 x .625 x .0312), Steering Handle Arm
-
458192A1 GRIP, Steering Handle ArmGRIP, Steering Handle Arm
-
548414 HOUSING, Drive WheelHOUSING, Drive Wheel
-
648516A1 DRIVE WHEEL/ROD ASSEMBLYDRIVE WHEEL/ROD ASSEMBLY
-
748405A2 ARM ASSEMBLYARM ASSEMBLY
-
848519 PLATE, Cover - Drive WheelPLATE, Cover - Drive Wheel
-
927-48518 GASKET, Cover PlateGASKET, Cover Plate
-
1010-72169 SCREW, (#10-24 x .50), Drive Wheel Cover PlateSCREW, (#10-24 x .50), Drive Wheel Cover Plate
-
11785511 CONDUIT, CableCONDUIT, Cable
-
1248520 CABLE, ThrottleCABLE, Throttle
-
1389613 CONNECTOR, Control LinkageCONNECTOR, Control Linkage
-
1410-824081 SCREW, Set - Throttle Cable Guide TubeSCREW, Set - Throttle Cable Guide Tube
-
158M0026078 GUIDE TUBE, Throttle Cable GuideGUIDE TUBE, Throttle Cable Guide
-
1643433 GUIDE, Throttle CableGUIDE, Throttle Cable
-
1720007 ANCHOR, Throttle CableANCHOR, Throttle Cable
-
1810-20518 SET SCREW, (#8-32), Throttle Cable AnchorSET SCREW, (#8-32), Throttle Cable Anchor
-
1948404T8 BRACKET, HandleBRACKET, Handle
-
2048416T CAP, Handle BracketCAP, Handle Bracket
-
2110-823597 SCREW, Handle BracketSCREW, Handle Bracket
-
2212-48477 WASHER, Handle Bracket
(.505 I.D.)WASHER, Handle Bracket
(.505 I.D.) -
2312-48526 WASHER, Nylon - Handle Bracket
(.630 I.D.)WASHER, Nylon - Handle Bracket
(.630 I.D.) -
2423-28919 BUSHING, Nylon - Handle Bracket
(0.625 Inch I.D.)BUSHING, Nylon - Handle Bracket
(0.625 Inch I.D.) -
2523-48525 SPACER, Handle BracketSPACER, Handle Bracket
-
2612-38000 WASHER, Nylon - Handle Bracket
(1.078 Inch O.D.)WASHER, Nylon - Handle Bracket
(1.078 Inch O.D.) -
2713-48478 WAVE WASHER, Handle BracketWAVE WASHER, Handle Bracket
-
2812-49636 WASHER, Nylon - Handle Bracket
(1.75 Inch O.D.)WASHER, Nylon - Handle Bracket
(1.75 Inch O.D.) -
2911-82671317 NUT, (.500-20), Handle Bracket ScrewNUT, (.500-20), Handle Bracket Screw
-
3010-35786 SCREW, (.375-24 x 1.00), Bracket to EngineSCREW, (.375-24 x 1.00), Bracket to Engine
-
3114-43589 TAB WASHER, Bracket ScrewTAB WASHER, Bracket Screw
-
3278812A1 DETENT, Shift LeverDETENT, Shift Lever
-
3310-48409 SCREW, (#10-16 x .625) Stainless Steel, Shift Lever DetentSCREW, (#10-16 x .625) Stainless Steel, Shift Lever Detent
-
34485681 SHIFT LEVVERSHIFT LEVVER
-
3523-48237 BUSHING, Nylong - Shift Lever
(0.375 Inch I.D.)BUSHING, Nylong - Shift Lever
(0.375 Inch I.D.) -
3612-34931 WASHER, (.406 x .734 x .063) Stainless Steel, Shift LeverWASHER, (.406 x .734 x .063) Stainless Steel, Shift Lever
-
3711-8M0042636 NUT, (.375-24), Shift LeverNUT, (.375-24), Shift Lever
-
388128061 SHIFT RODSHIFT ROD
-
3948419T ROD END, Shift RodROD END, Shift Rod
-
4023-48475 BUSHING, Nylon - Shift Rod
(0.25 Inch I.D.)BUSHING, Nylon - Shift Rod
(0.25 Inch I.D.) -
4112-35950 WASHER, (.273 x .437 x .031) Stainless Steel, Shift RodWASHER, (.273 x .437 x .031) Stainless Steel, Shift Rod
-
4218-25191 COTTER PIN, Shift RodCOTTER PIN, Shift Rod
-
4398530 KNOB, Shift LeverKNOB, Shift Lever
-
4487-11083A11 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
458M0032846 RETANER, Stop SwitchRETANER, Stop Switch
-
468M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
4754-648552 CLAMP, Stop SwitchCLAMP, Stop Switch
-
--52148A1 CO-PILOT KITCO-PILOT KIT
