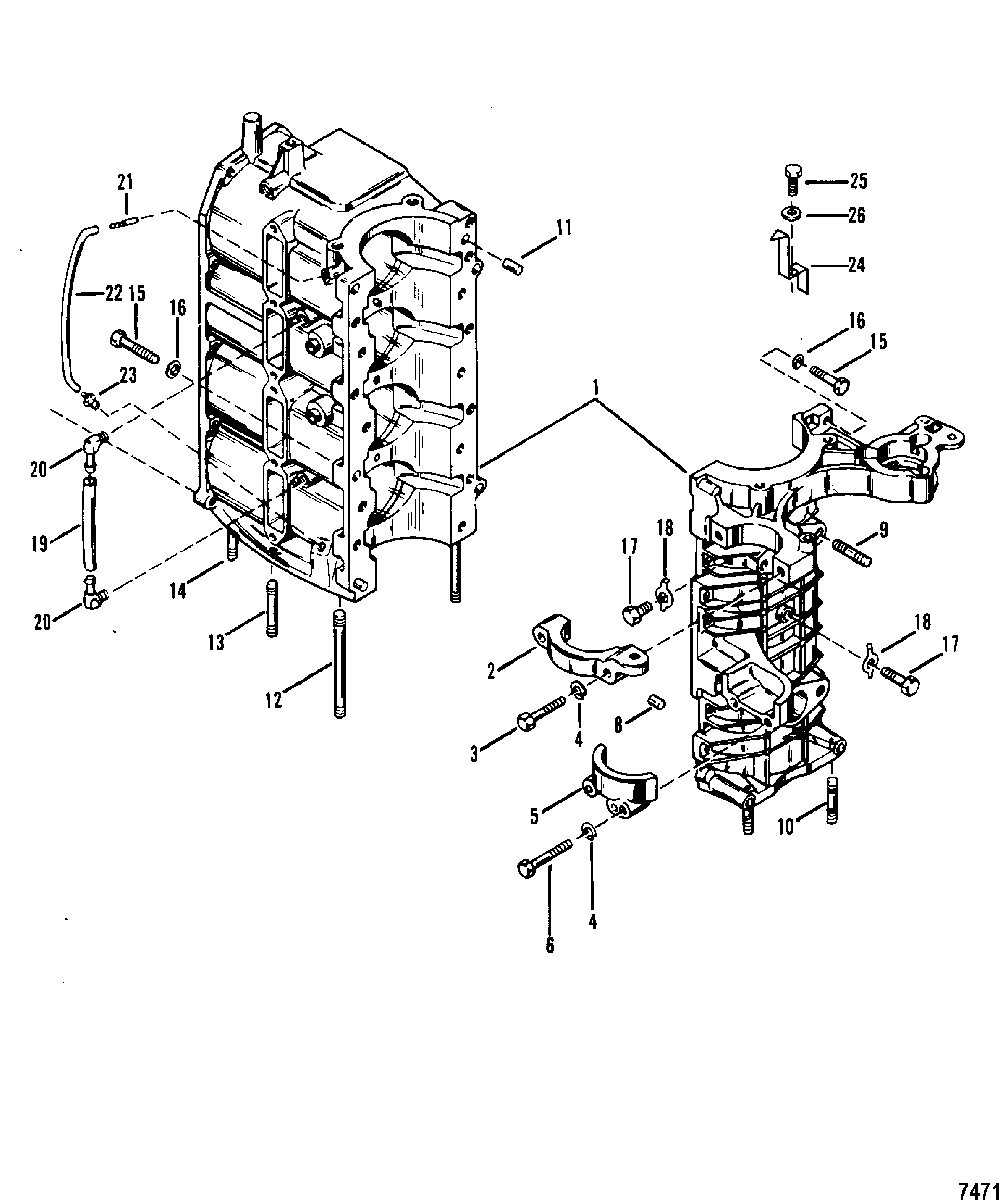

Cylinder Block and Crankcase Assembly для Mariner - 45 (4 CYL.) 9466692 & Up

№

Артикул

Название
1

863-8981A6 CYLINDER BLOCK ASSEMBLY

CYLINDER BLOCK ASSEMBLY

0 ₽
2

72038 BRACKET, Upper Starter Motor

BRACKET, Upper Starter Motor

0 ₽
3

10-73279 SCREW, (.312-18 x 1.880), Bracket to Crankcase (1.875 Inch)

SCREW, (.312-18 x 1.880), Bracket to Crankcase (1.875 Inch)

0 ₽
4

13-26993 LOCKWASHER, (.312), Bracket Screw

LOCKWASHER, (.312), Bracket Screw

140 ₽
5

76867 COVER, Lower Starter Motor

COVER, Lower Starter Motor

2 450 ₽
6

10-73279 SCREW, (.312-18 x 1.880), Cover to Crankcase (1.875 Inch)

SCREW, (.312-18 x 1.880), Cover to Crankcase (1.875 Inch)

0 ₽
8

17-20032 PIN, Dowel, Cylinder block to main bearing

PIN, Dowel, Cylinder block to main bearing

250 ₽
9

16-64936 STUD, Carburetor (1.25 Inch)

STUD, Carburetor (1.25 Inch)

0 ₽
10

16-68165 STUD, Crankcase to Driveshaft Housing (1.625 Inch)

STUD, Crankcase to Driveshaft Housing (1.625 Inch)

0 ₽
11

17-43044 PIN, Dowel, Crankcase to Cylinder Block

PIN, Dowel, Crankcase to Cylinder Block

200 ₽
12

16-87901 STUD, Cylinder block to drive shaft housing (4 Inch)

STUD, Cylinder block to drive shaft housing (4 Inch)

0 ₽
13

16-68166 STUD, (.312 x 2.125), Cylinder block to drive shaft housing (2.125 Inch)

STUD, (.312 x 2.125), Cylinder block to drive shaft housing (2.125 Inch)

4 770 ₽
14

16-68167 STUD, (.312-18/.312-24 x 2.560), Cylinder block to drive shaft housing (2.50 Inch)

STUD, (.312-18/.312-24 x 2.560), Cylinder block to drive shaft housing (2.50 Inch)

1 940 ₽
15

10-73657 SCREW, (.312-18 x 1.50), Crankcase to cylinder block (1.50 Inch)

SCREW, (.312-18 x 1.50), Crankcase to cylinder block (1.50 Inch)

230 ₽
15

10-31984 SCREW, (.312-18 x 1.375), Crankcase to cylinder block (1.375 Inch)

SCREW, (.312-18 x 1.375), Crankcase to cylinder block (1.375 Inch)

140 ₽
15

10-73275 SCREW, (.312-18 x 2.88), Crankcase to cylinder block (2.875 Inch)

SCREW, (.312-18 x 2.88), Crankcase to cylinder block (2.875 Inch)

270 ₽
16

12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Crankcase Screw

WASHER, (.323 x .563 x .063) Stainless Steel, Crankcase Screw

150 ₽
17

10-20359 SCREW, (.375-16 x 1.00)
(Center Main Bearing Locking)

SCREW, (.375-16 x 1.00)
(Center Main Bearing Locking)

140 ₽
17

10-98260 SCREW, (.375-16 x .620)
(Main Bearing Locking) (0.625 Inch)

SCREW, (.375-16 x .620)
(Main Bearing Locking) (0.625 Inch)

100 ₽
18

14-20091 TAB WASHER, Center Bearing Locking Screw

TAB WASHER, Center Bearing Locking Screw

140 ₽
19

32-8M0108355 LINE, (57.00 Inches Bulk), Balance - Main Bearing (5.50 Inch)

LINE, (57.00 Inches Bulk), Balance - Main Bearing (5.50 Inch)

5 260 ₽
20

22-996642 ELBOW, Balance Tube to Cylinder Block

ELBOW, Balance Tube to Cylinder Block

200 ₽
21

22-56759 CONNECTOR, Upper Bleed Hose

CONNECTOR, Upper Bleed Hose

710 ₽
22

32-9938779 HOSE, Cylinder Bleed (11 Inch)

HOSE, Cylinder Bleed (11 Inch)

1 070 ₽
23

21-428671 CHECK VALVE, Lower Bleed Hose

CHECK VALVE, Lower Bleed Hose

0 ₽
24

99156 INDICATOR, Timing
(Electric)

INDICATOR, Timing
(Electric)

0 ₽
25

10-39349 SCREW, (.312-18 x .750) Stainless Steel, Indicator to Crankcase
(Electric)

SCREW, (.312-18 x .750) Stainless Steel, Indicator to Crankcase
(Electric)

150 ₽
26

13-26993 LOCKWASHER, (.312), Indicator Screw
(Electric)

LOCKWASHER, (.312), Indicator Screw
(Electric)

140 ₽
-

97469T87 POWERHEAD ASSEMBLY, Complete
(Incluses Cylinder Block and Crankcase, Pistons, Connecting Rods and Bearings, ETC.)

POWERHEAD ASSEMBLY, Complete
(Incluses Cylinder Block and Crankcase, Pistons, Connecting Rods and Bearings, ETC.)

0 ₽
