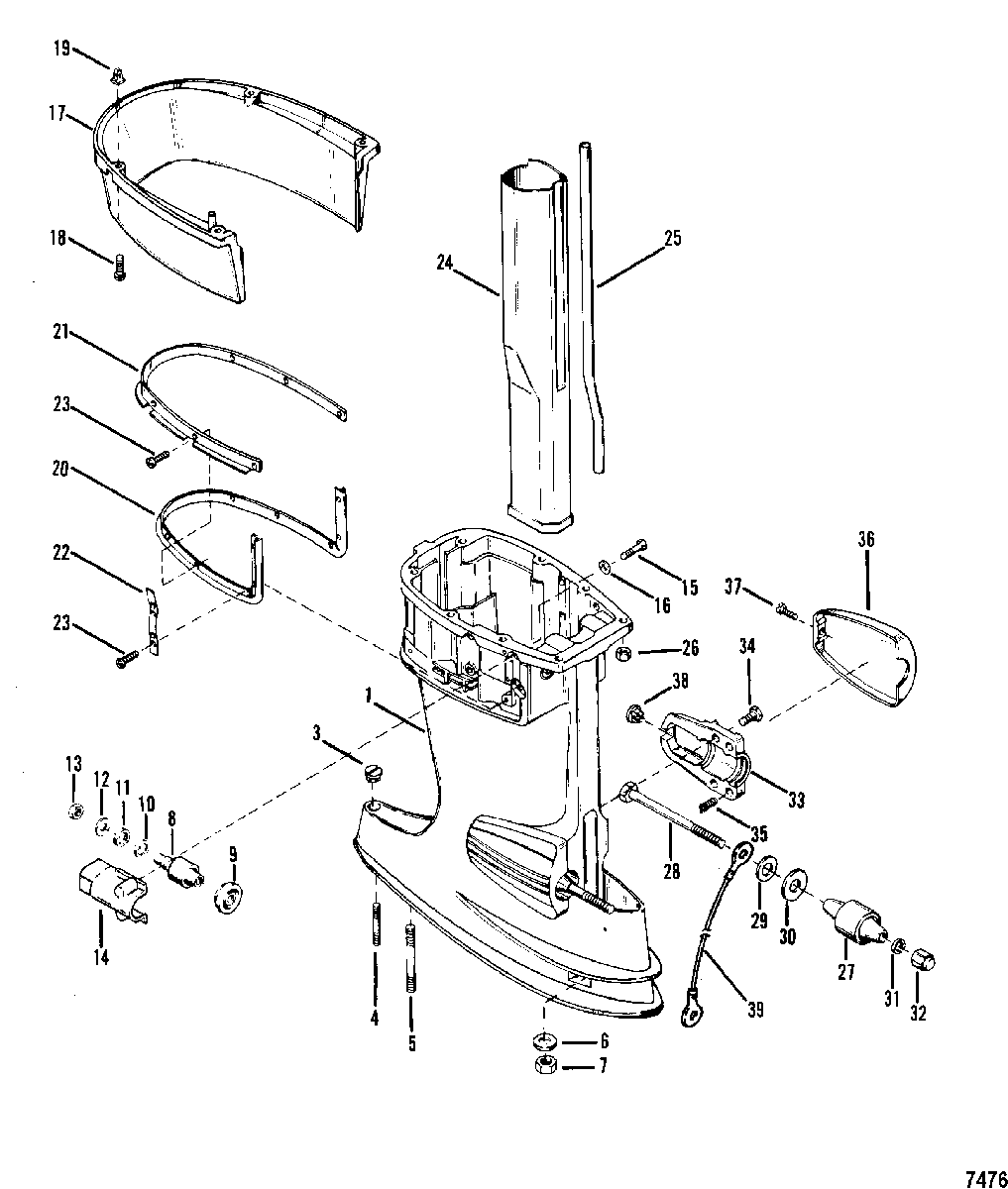

Driveshaft Housing Assembly для Mariner - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
11592-8188A8 HOUSING ASSEMBLY, Driveshaft (Short Shaft)
(Non Power Trim)HOUSING ASSEMBLY, Driveshaft (Short Shaft)
(Non Power Trim) -
11593-7513A12 HOUSING ASSEMBLY, Driveshaft (Long Shaft)
(Non Power Trim)HOUSING ASSEMBLY, Driveshaft (Long Shaft)
(Non Power Trim) -
11593-8189A10 HOUSING ASSEMBLY, Driveshaft, Black
(Non Power Trim)HOUSING ASSEMBLY, Driveshaft, Black
(Non Power Trim) -
11593-8189A11 HOUSING ASSEMBLY, Driveshaft, Gray
(Non Power Trim)HOUSING ASSEMBLY, Driveshaft, Gray
(Non Power Trim) -
319-64649 PLUG, Plastic - Trim Tab Screw HolePLUG, Plastic - Trim Tab Screw Hole
-
416-8M0022145 STUD, (.375-16/.375-24 x 1.750), Driveshaft HousingSTUD, (.375-16/.375-24 x 1.750), Driveshaft Housing
-
516-57935 STUD, Driveshaft Housing (3 Inch)STUD, Driveshaft Housing (3 Inch)
-
612-65791 WASHER, Gear Housing Studs (0.438 Inch)WASHER, Gear Housing Studs (0.438 Inch)
-
711-34933 NUT, (.437-20) Stainless Steel, Gear Housing StudsNUT, (.437-20) Stainless Steel, Gear Housing Studs
-
8923373 MOUNT, Rubber - UpperMOUNT, Rubber - Upper
-
996401 SEAL, Upper MountSEAL, Upper Mount
-
1012-27727 WASHER, Upper Mount Bolt (37/64 I.D.)WASHER, Upper Mount Bolt (37/64 I.D.)
-
1112-66966 WASHER, Rubber - Upper Mount BoltWASHER, Rubber - Upper Mount Bolt
-
1212-30514 WASHER, Upper Mount BoltWASHER, Upper Mount Bolt
-
1311-34933 NUT, (.437-20) Stainless Steel, Upper Mount BoltNUT, (.437-20) Stainless Steel, Upper Mount Bolt
-
1487883 COVER, Upper MountCOVER, Upper Mount
-
1510-76630 SCREW, (.250-20 x 1.00), Upper Mount CoverSCREW, (.250-20 x 1.00), Upper Mount Cover
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Upper Mount Cover ScrewWASHER, (.281 x .500 x .060) Stainless Steel, Upper Mount Cover Screw
-
1737687 COVER, Trim - Driveshaft Housing
(Black)COVER, Trim - Driveshaft Housing
(Black) -
1737687F2 COVER, Trim - Driveshaft Housing
(Gray)COVER, Trim - Driveshaft Housing
(Gray) -
1810-57807 SCREW, (#10-16 x .750) Stainless Steel, Trim Cover to Driveshaft HousingSCREW, (#10-16 x .750) Stainless Steel, Trim Cover to Driveshaft Housing
-
1925-8M0079730 GROMMET, Trim Cover ScrewGROMMET, Trim Cover Screw
-
2038157 SEAL, Trim Cover to Driveshaft HousingSEAL, Trim Cover to Driveshaft Housing
-
2138158 STRIP, Retaining - Trim Cover Seal (Rear)STRIP, Retaining - Trim Cover Seal (Rear)
-
2238154 STRIP, Retaining - Trim Cover Seal (Side)STRIP, Retaining - Trim Cover Seal (Side)
-
2310-48408 SCREW, (#10-16 x .500), Retaining StripSCREW, (#10-16 x .500), Retaining Strip
-
24695431 TUBE, Exhaust
(Short Shaft)TUBE, Exhaust
(Short Shaft) -
24695441 TUBE, Exhaust
(Long Shaft)TUBE, Exhaust
(Long Shaft) -
2532-37727 TUBE, Water Inlet
(Short Shaft)TUBE, Water Inlet
(Short Shaft) -
2532-45679 TUBE, Water Inlet
(Long Shaft)TUBE, Water Inlet
(Long Shaft) -
2611-64809 NUT, Powerhead Studs (0.313 Inch)NUT, Powerhead Studs (0.313 Inch)
-
2775304T1 MOUNT, Rubber - LowerMOUNT, Rubber - Lower
-
2810-75284 SCREW, (.500-20 x 5.500), Lower Mount Screw
(Non Power Trim)SCREW, (.500-20 x 5.500), Lower Mount Screw
(Non Power Trim) -
2810-43426 SCREW, Lower Mount Screw
(Power Trim)SCREW, Lower Mount Screw
(Power Trim) -
2912-28051 WASHER, Lower Mount ScrewWASHER, Lower Mount Screw
-
3012-28053 WASHER, Rubber - Lower Mount ScrewWASHER, Rubber - Lower Mount Screw
-
3112-30119 WASHER, (.875 Inch Outside Diameter), Lower Mount ScrewWASHER, (.875 Inch Outside Diameter), Lower Mount Screw
-
3211-25096 NUT, Lower Mount ScrewNUT, Lower Mount Screw
-
3369592F1 CLAMP, Lower MountCLAMP, Lower Mount
-
3410-29256 SCREW, (.312-18 x .875), Lower Mount ClampSCREW, (.312-18 x .875), Lower Mount Clamp
-
3524-35522 SPRING, Tension - Lower Mount ClampSPRING, Tension - Lower Mount Clamp
-
3635474T COVER, Lower Mount Clamp
(Black)COVER, Lower Mount Clamp
(Black) -
3635474F2 COVER, Lower Mount Clamp, Lower Mount Clamp
(Gray)COVER, Lower Mount Clamp, Lower Mount Clamp
(Gray) -
3710-87884 SCREW, (#12-14 x .920), Cover to Lower Mount ClampSCREW, (#12-14 x .920), Cover to Lower Mount Clamp
-
3811-35521 NUT, Lower Mount Clamp CoverNUT, Lower Mount Clamp Cover
-
3988238A10 CABLE ASSEMBLY, Ground, Quanity of Two on Power TrimCABLE ASSEMBLY, Ground, Quanity of Two on Power Trim
