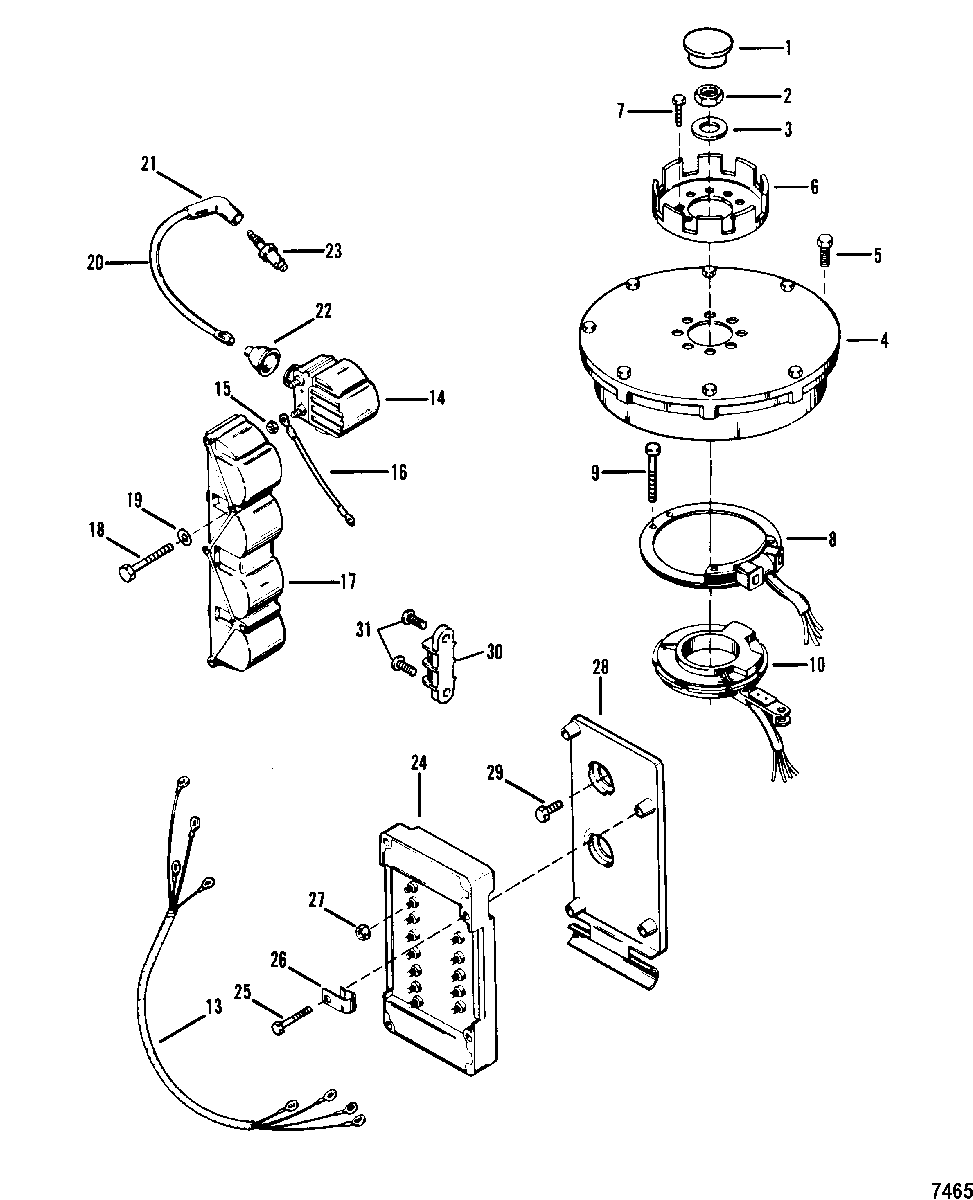

Flywheel, Ignition Coil and Switch Box для Mariner - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
119-45907 PLUG, Yellow, FlywheelPLUG, Yellow, Flywheel
-
211-22339 NUT, (.625-18), FlywheelNUT, (.625-18), Flywheel
-
312-33001 WASHER, (.641 x 1.250 x .190), Flywheel NutWASHER, (.641 x 1.250 x .190), Flywheel Nut
-
4248-8722A16 FLYWHEEL ASSEMBLY
(Manual)FLYWHEEL ASSEMBLY
(Manual) -
4248-8722A17 FLYWHEEL ASSMEBLY
(Electric)FLYWHEEL ASSMEBLY
(Electric) -
510-32417 SCREW, (.250-28 x .625), Flexible Plate to FlywheelSCREW, (.250-28 x .625), Flexible Plate to Flywheel
-
650-88755 RATCHET, Flywheel (Manual)RATCHET, Flywheel (Manual)
-
710-68997 SCREW, (.312-24 x .750), Ratchet to Flywheel (Manual)SCREW, (.312-24 x .750), Ratchet to Flywheel (Manual)
-
8398-832074A6 STATOR
(Manual)STATOR
(Manual) -
8398-832075A20 STATOR
(Electric)STATOR
(Electric) -
910-75840 SCREW, (#10-24 x .880), Stator to Upper End CapSCREW, (#10-24 x .880), Stator to Upper End Cap
-
1096452A4 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1384-88721A1 HARNESS ASSEMBLY, Switch Box to Ignition CoilHARNESS ASSEMBLY, Switch Box to Ignition Coil
-
14339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1511-45076 NUT, (#10-32) Brass, Ignition Coil TerminalsNUT, (#10-32) Brass, Ignition Coil Terminals
-
1684-60466A19 CABLE ASSEMBLY, Coil to Switch BoxCABLE ASSEMBLY, Coil to Switch Box
-
1787554 COVER, Ignition CoilCOVER, Ignition Coil
-
1810-88856 SCREW, (.190-32 x 2.00), Coil Cover
(10-32 X 2 Inch)SCREW, (.190-32 x 2.00), Coil Cover
(10-32 X 2 Inch) -
1912-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, Coil Cover ScrewWASHER, (.192 x .375 x .0312) Stainless Steel, Coil Cover Screw
-
2084-813715A5 LEAD ASSEMBLY, Spark PlugLEAD ASSEMBLY, Spark Plug
-
2185-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
22332-2854T01 BOOT, Ignition CoilBOOT, Ignition Coil
-
2333-97182Q SPARK PLUG
(USA Models)SPARK PLUG
(USA Models) -
2333-14103550 SPARK PLUG, (NGK-BUZHW)
(Belgium and Canada Models)SPARK PLUG, (NGK-BUZHW)
(Belgium and Canada Models) -
24332-5772A7 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
2510-20619 SCREW, (#12-24 x 1.25), Switch Box and "J" Clip to PlateSCREW, (#12-24 x 1.25), Switch Box and "J" Clip to Plate
-
2654-642351 J CLIP, Switch Box LeadsJ CLIP, Switch Box Leads
-
2711-45076 NUT, (#10-32) Brass, Switch Box TerminalsNUT, (#10-32) Brass, Switch Box Terminals
-
2888322 PLATE, Switch BoxPLATE, Switch Box
-
2910-54615 SCREW, (.250-20 x .625), Switch Box Plate to Cylinder BlockSCREW, (.250-20 x .625), Switch Box Plate to Cylinder Block
-
3086-638131 TERMINAL BLOCKTERMINAL BLOCK
-
3110-20568 SCREW, (.190-24 x .62), Terminal BlockSCREW, (.190-24 x .62), Terminal Block
-
3110-62568 SCREW, (#10-16 x .375), Terminal BlockSCREW, (#10-16 x .375), Terminal Block
